Описание
- Solid Capacitor for CPU power
- Supports FSB1333/1066/800/533 MHz CPUs
- Supports Dual Channel DDR3/DDR2 memory
- 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
- 1 x D-Sub, 1 x COM Port, 1 x Print Port Header
- Integrated Intel® Graphics Media Accelerator X4500, PS4.0, DX10
- 8 x USB 2.0 (4 Front, 4 Rear), 4 x SATA2
- Realtek Gigabit LAN
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports ASRock Full Spike Protection, XFast LAN, XFast RAM
Спецификация
| Сокет: |
Intel LGA 775 |
| Чипсет: |
Intel G41 |
| Процесори: |
- Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale Processors
- Supports FSB 1333/1066/800/533 MHz |
| Поддържана памет: |
- Dual Channel DDR3/DDR2 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB
- 2 x DDR2 DIMM Slots
- Supports DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB |
| Аудио: |
Realtek ALC662 HD Audio Codec |
| Мрежова връзка: |
Realtek RTL8111GR Gigabit LAN |
| Вградена графика: |
- Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz |
| Слотове за периферия: |
- 1 x PCI Express x16
- 1 x PCI Express x1
- 2 x PCI |
| Интерфейс за данни: |
- 4 x SATA2 3.0 Gb/s Connectors (No support for RAID and Hot Plug) |

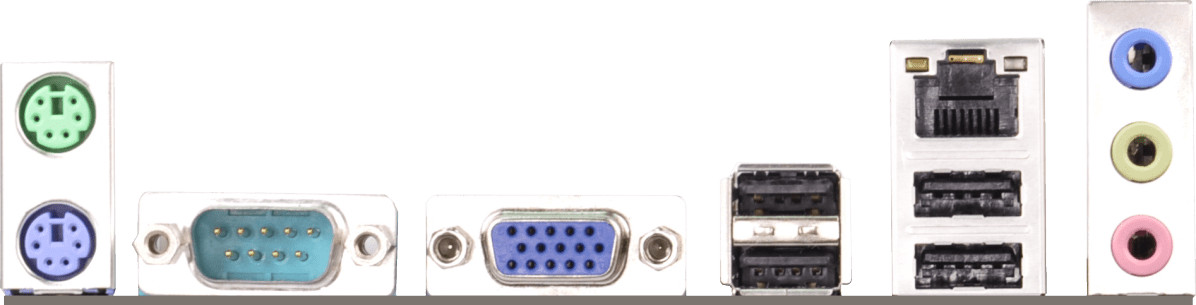

| Изходи на задния панел: |
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Вътрешни I/O конектори: |
- 1 x ATA100 IDE Connector (Supports 2 x IDE devices)
- 1 x Floppy Connector
- 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
| Операционна система: |
Microsoft® Windows® 7 32 / 64-bit, Vista™ 32 / 64-bit, XP 32 / 64-bit |
| Форм фактор / Размери: |
Micro ATX |
| Комплекта включва: |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables |
| MPN: |
G41C-GS R2.0 |
| Производител: |
ASRock |
