Описание
- ASRock Super Alloy
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
- 2 PCIe 3.0 x16, 4 PCIe 2.0 x1, 1 M.2 (Key E)
- NVIDIA® Quad SLI™, AMD Quad CrossFireX™
- Graphics Output:HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3)
- 12 USB 3.0 (1 Type-C, 4 Front, 7 Rear)
- Intel® Gigabit LAN
Спецификация
| Сокет: |
AMD AM4 |
| Чипсет: |
AMD X370 |
| Процесори: |
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) |
| Поддържана памет: |
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB* |
| Аудио: |
Realtek ALC892 Audio Codec |
| Мрежова връзка: |
GigaLAN Intel® I211AT |
| Слотове за периферия: |
2 x PCI Express 3.0 x16
4 x PCI Express 2.0 x1
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s
2 x M.2 Socket (NGFF) |

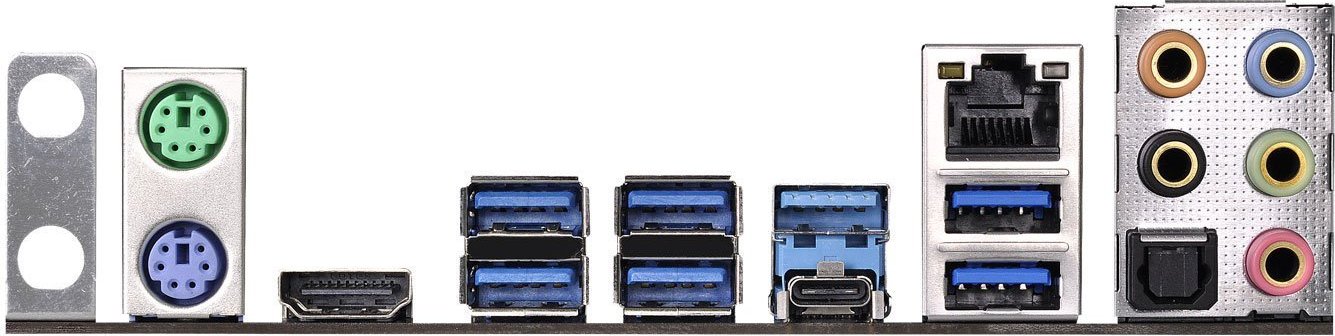

| Изходи на задния панел: |
- 2 x Antenna Ports
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.0 Type-A Port
- 1 x USB 3.0 Type-C Port
- 6 x USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Форм фактор / Размери: |
ATX |
| MPN: |
X370 KILLER SLI |
| Производител: |
ASRock |
Тагове: Дънни платки ASRock, AMD AM4, ATX
