Дънна платка ASRock Z270 Extreme4
Тагове: Дънни платки ASRock, ATX
Продуктът е изчерпан и не може да бъде поръчан!
(Код: 475)
Описание
- ATX
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
- Supports DDR4 3866+(OC)
- 3 PCIe 3.0 x 16, 3 PCIe 3.0 x1, 1 M.2 (Key E)
- NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
- Graphics Output Options: HDMI, DVI-D, D-Sub
- Supports Triple Monitor
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.0 (4 Front, 4 Rear)
- Intel® Gigabit LAN
- ASRock RGB LED
- Intel® Optane™ Memory Ready
Спецификация
| Сокет: |
Intel LGA 1151 |
| Чипсет: |
Intel Z270 |
| Процесори: |
Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) |
| Поддържана памет: |
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 3866+(OC)*/3733(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB***
- Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Аудио: |
Realtek ALC1220 Audio Codec |
| Мрежова връзка: |
Giga PHY Intel® I219V |
| Слотове за периферия: |
3 x PCI Express 3.0 x16
3 x PCI Express 3.0 x1
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s
2 x SATA3 6.0 Gb/s by ASMedia ASM1061
2 x M.2 Socket (NGFF) |

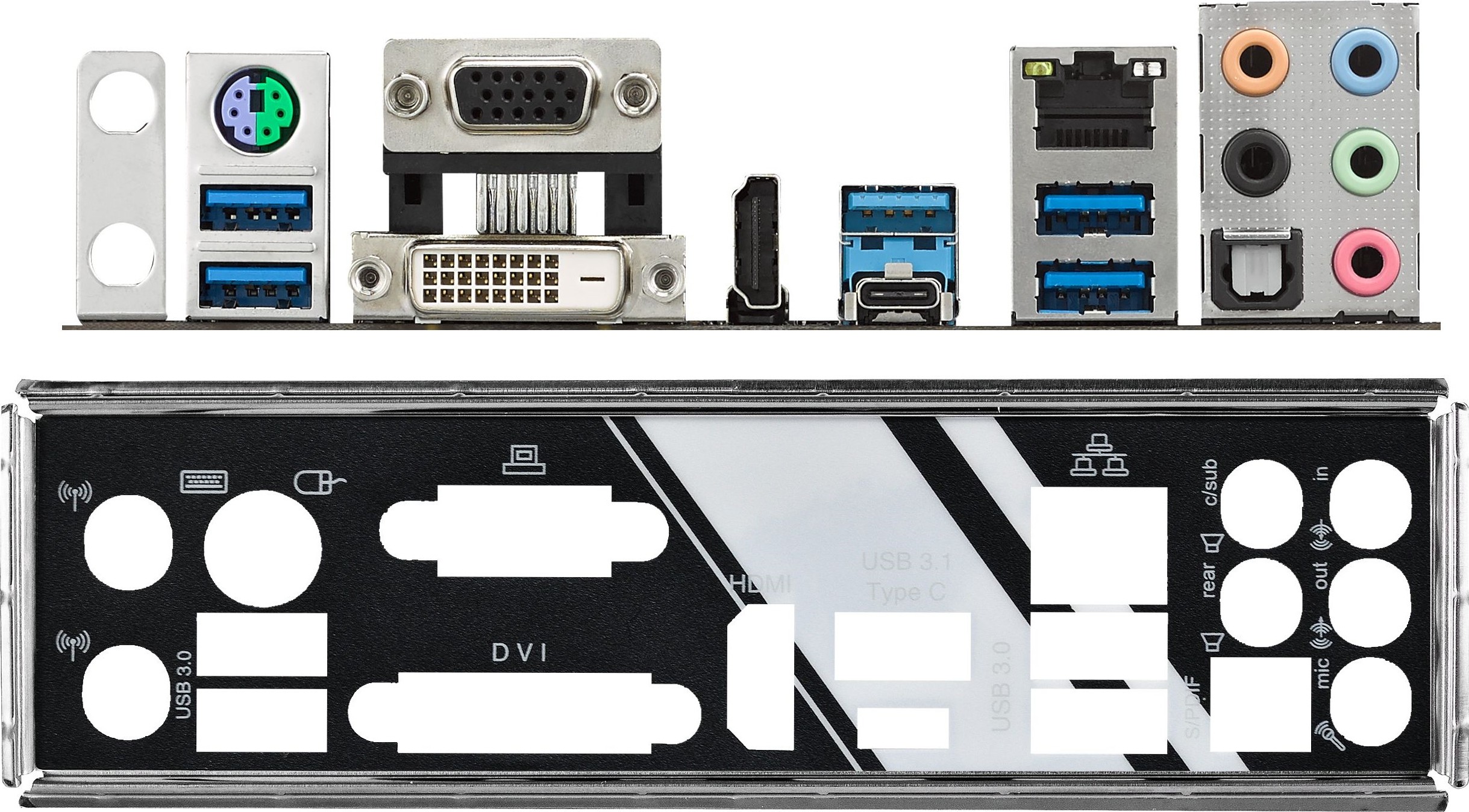

| Изходи на задния панел: |
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Type-A Port (10 Gb/s)
- 1 x USB 3.1 Type-C Port (10 Gb/s)
- 4 x USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Форм фактор / Размери: |
ATX |
| MPN: |
Z270 EXTREME4 |
| Производител: |
ASRock |
