Описание

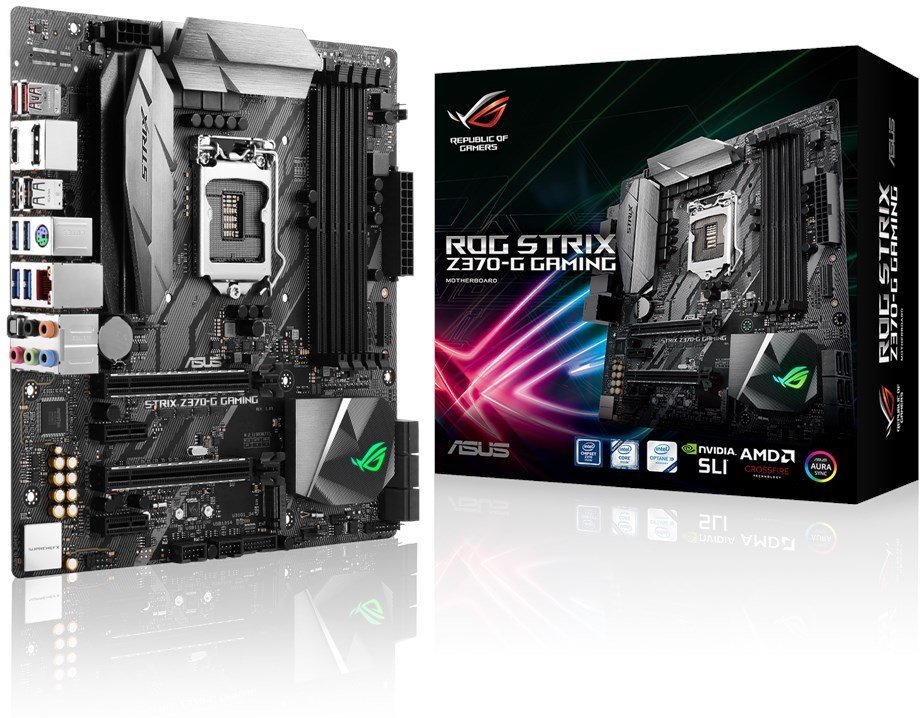

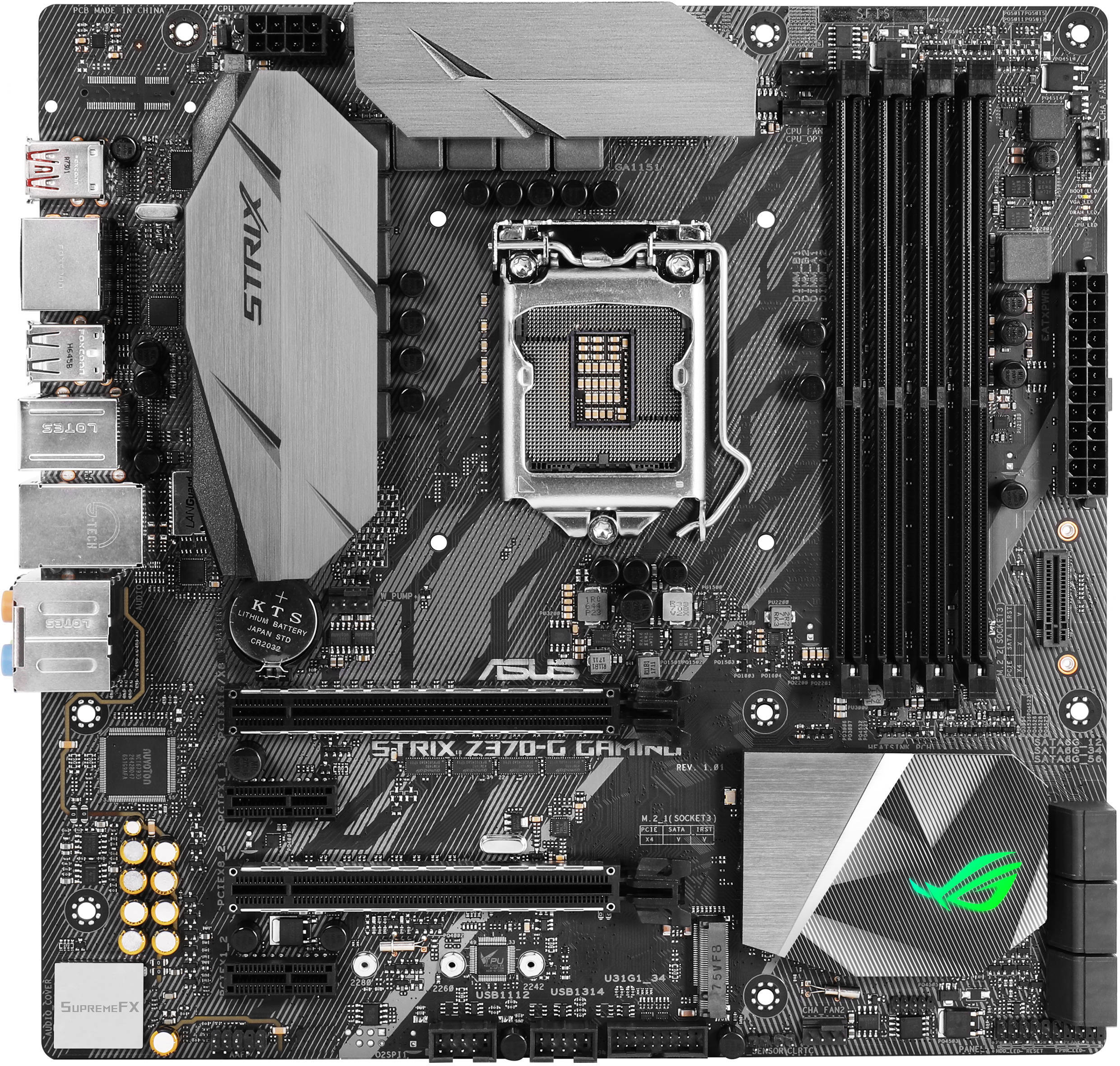

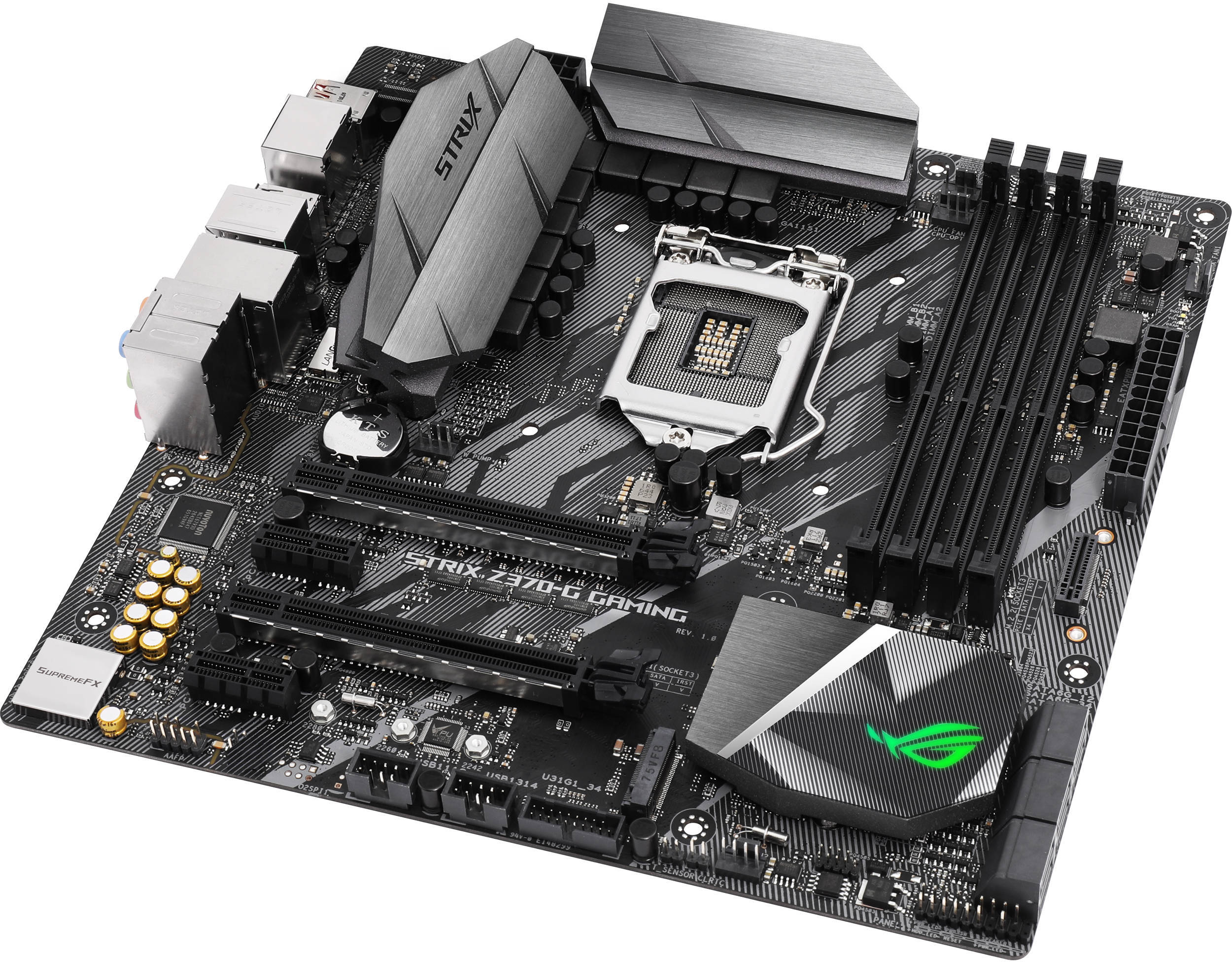

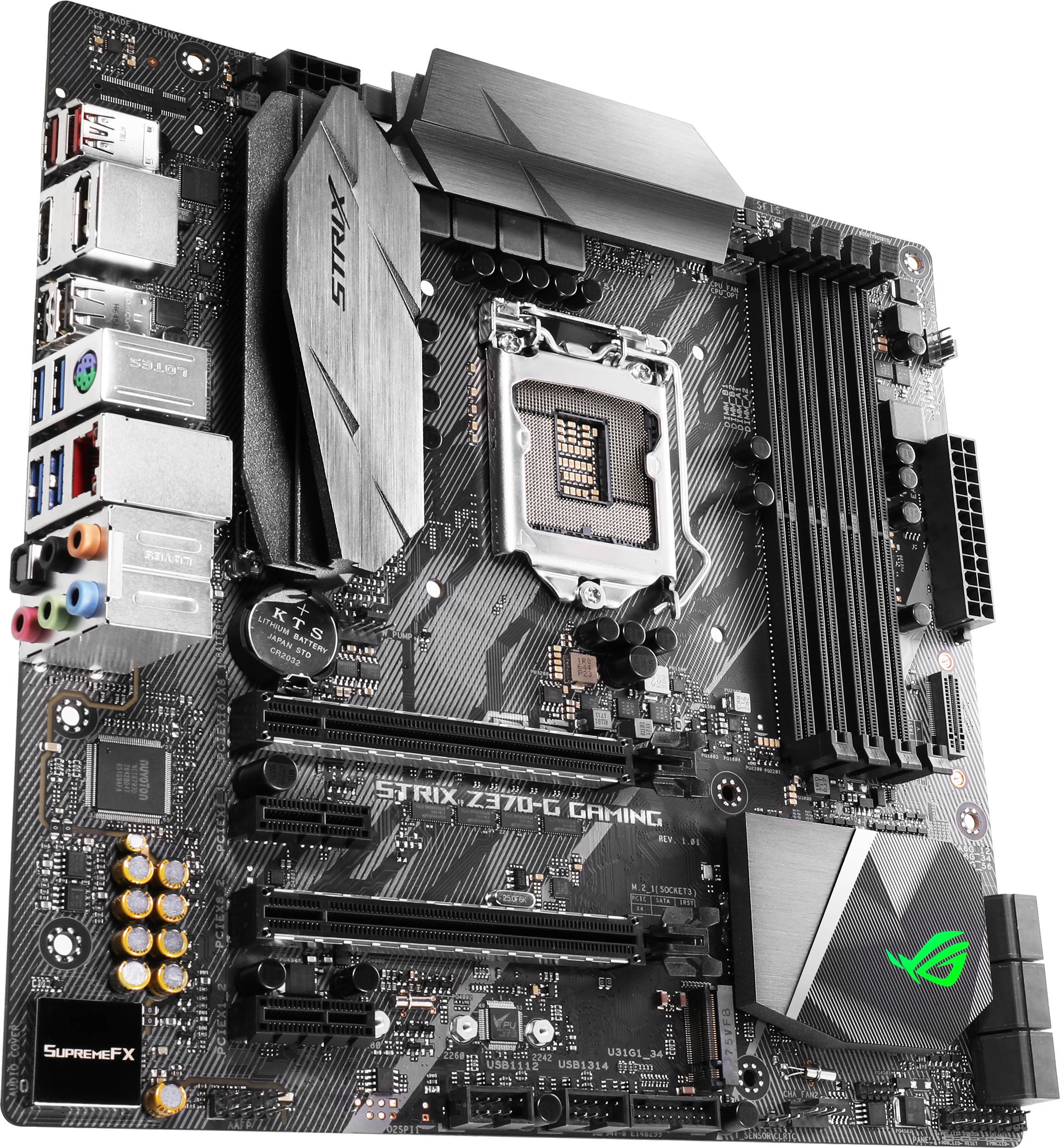

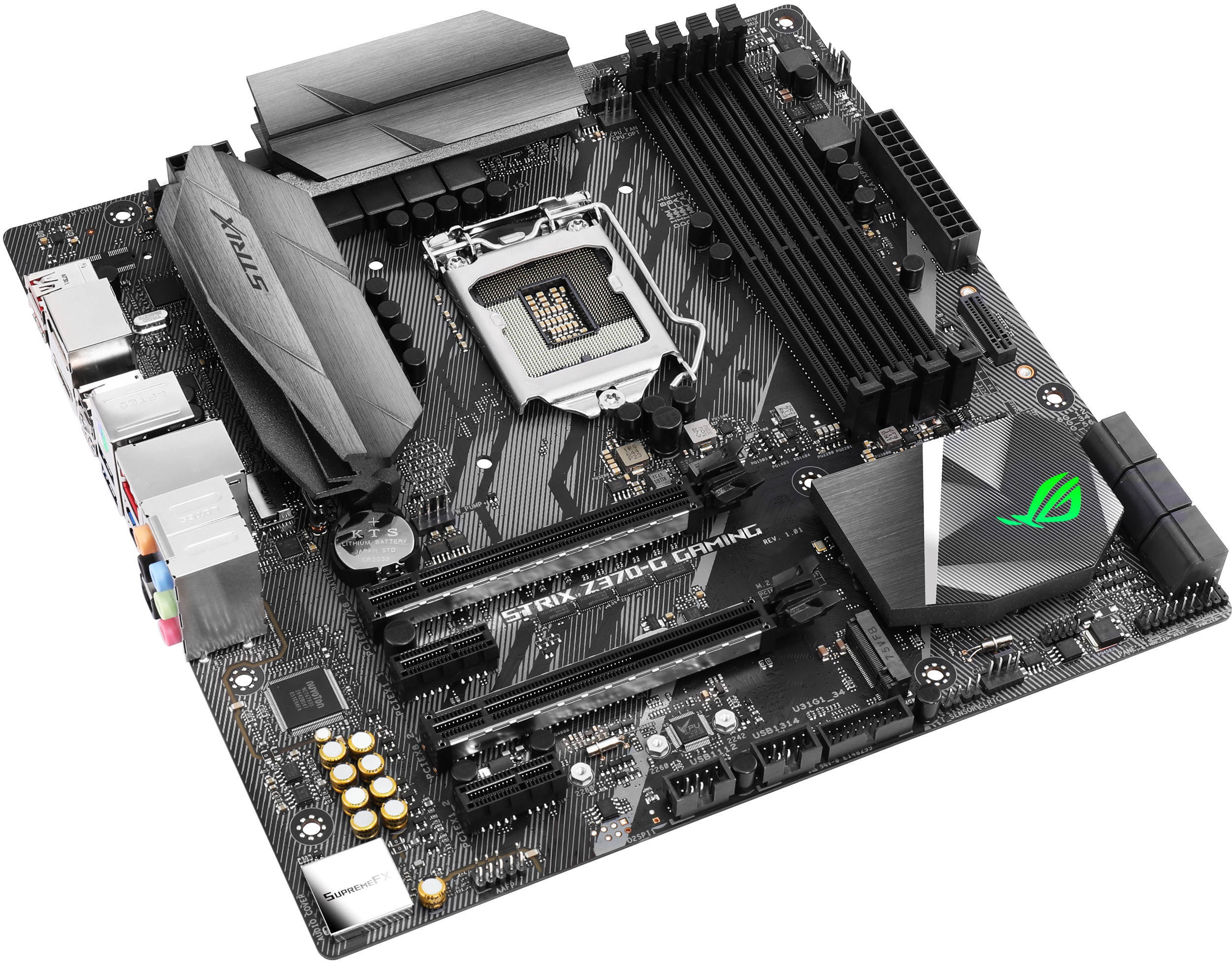

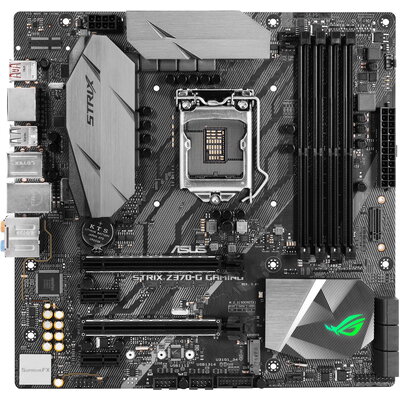

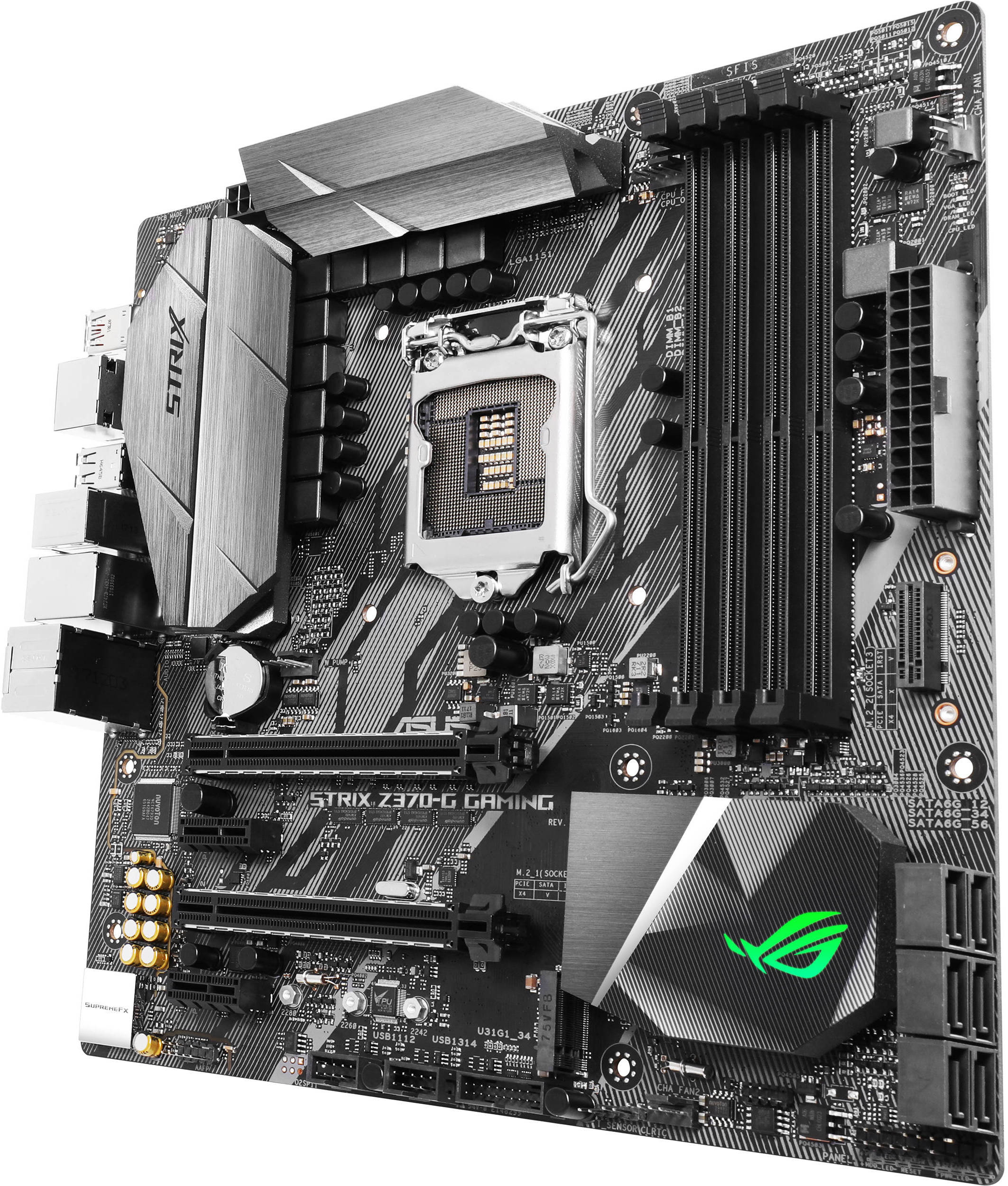

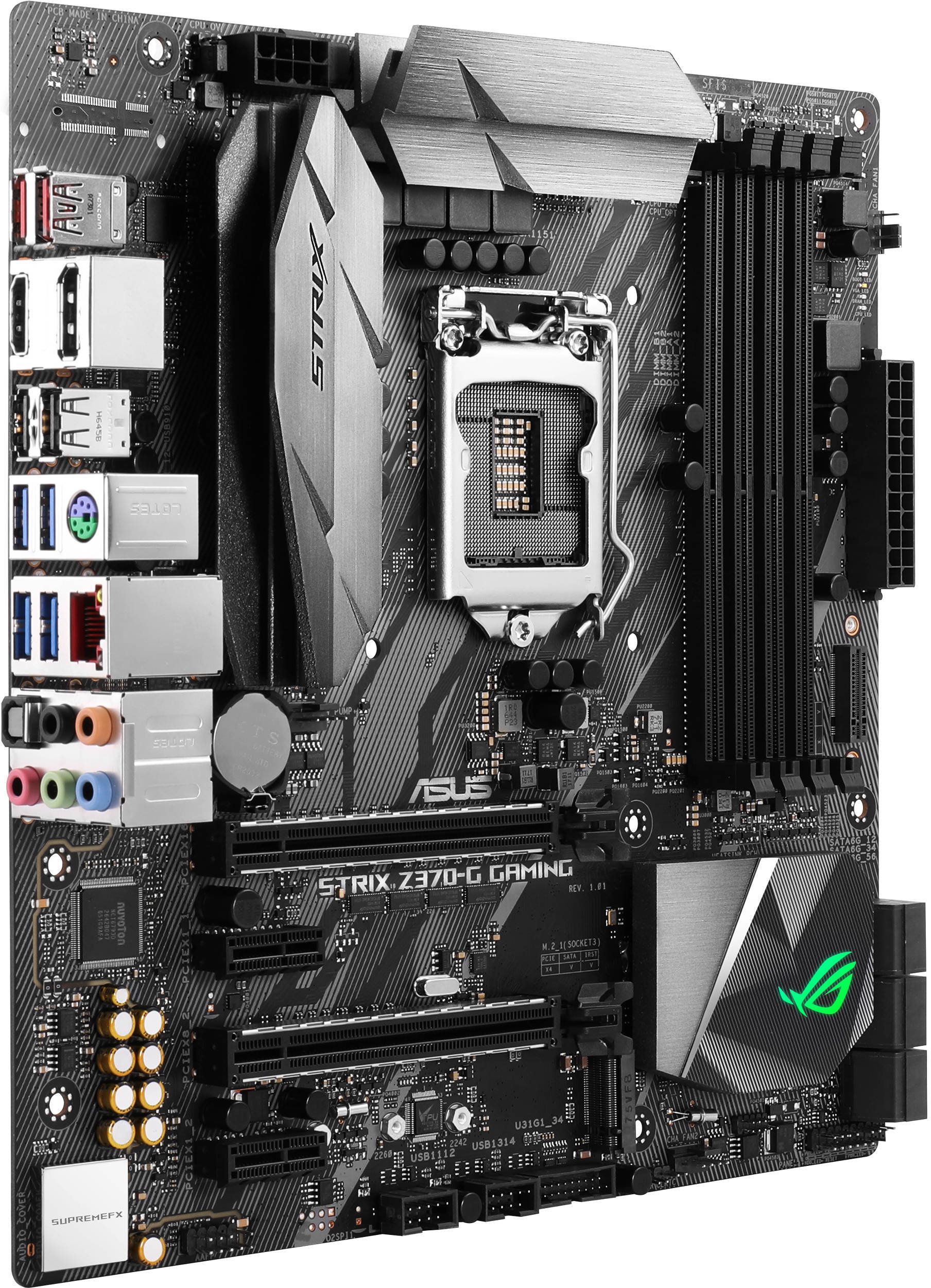

Intel Z370 mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 4000MHz support , dual M.2, SATA 6Gbps and USB 3.1
- LGA1151 socket for 8th-gen Intel® Core™ desktop processors.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst.
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance.
Спецификация
| Сокет: |
Intel LGA 1151 |
| Чипсет: |
Intel Z370 |
| Процесори: |
Intel® Socket 1151 for 8th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 |
| Поддържана памет: |
4 x DIMM, Max. 64GB, DDR4 4000 (O.C.) MHz Non-ECC, Un-buffered
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) |
| Аудио: |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Мрежова връзка: |
Intel® I219V Gigabit LAN |
| Слотове за периферия: |
2 x PCI Express 3.0 x16
2 x PCI Express 3.0 x1 |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Intel® Rapid Storage Technology
Supports Intel® Smart Response Technology
Intel® Optane™ Memory Ready |

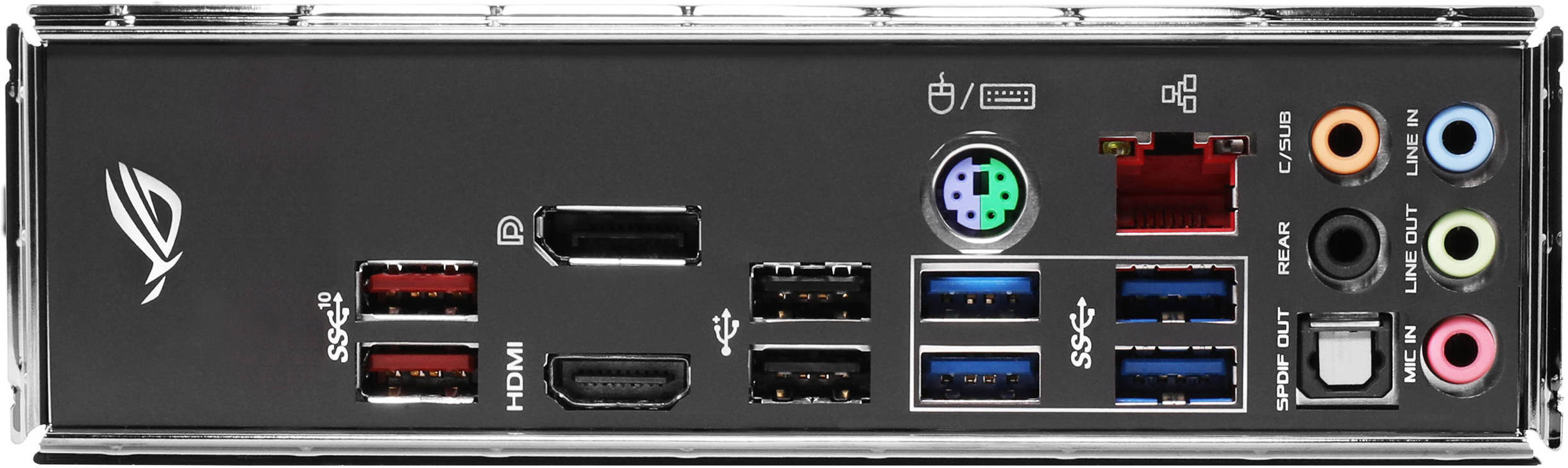

| Изходи на задния панел: |
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
2 x USB 2.0
4 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s) |
| Форм фактор / Размери: |
microATX |
| Комплекта включва: |
User's manual
1 x Vertical M.2 bracket set
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x Strix door hanger
1 x SLI HB BRIDGE(2-WAY-S)
1 x Cable ties pack(s)
1 x Thermistor cable(s)
1 x STRIX series sticker |
| Производител: |
ASUS |
Тагове: Дънни платки ASUS, microATX, Intel LGA 1151 rev2 - Coffee Lake (300 Series)
