Описание
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- Audio Boost: Reward your ears with studio grade sound quality.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- EZ Debug LED: Easiest way to troubleshoot.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Спецификация
| Сокет: |
Intel LGA 1151 |
| Чипсет: |
Intel B360 |
| Процесори: |
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Поддържана памет: |
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP) |
| Аудио: |
Realtek ALC887 Audio Codec |
| Мрежова връзка: |
Realtek RTL8111H Gigabit LAN |
| Слотове за периферия: |
1 x PCI Express 3.0 x16
2 x PCI Express 3.0 x1 |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready |

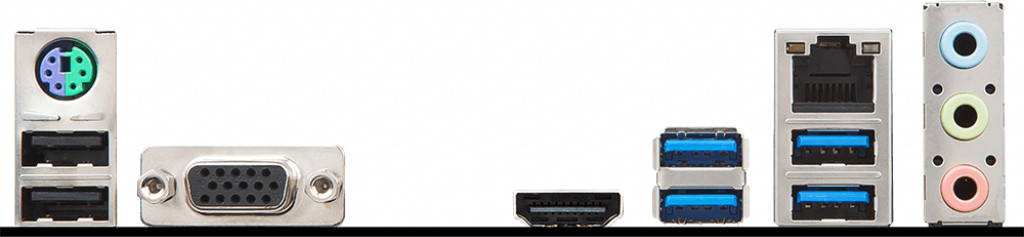

| Изходи на задния панел: |
PS/2 Combo Port
VGA Port
HDMI Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
USB 3.1 Gen1 |
| Вътрешни I/O конектори: |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
6 x SATA 6Gb/s connectors
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector |
| Форм фактор / Размери: |
microATX |
| Производител: |
MSI |
