COUGAR STC650 PSU 650W
- Производител:
-
Гаранция:2 години
Цена:
87,96 лв.
На склад
Код: 80338
Описание
COUGAR STC650 PSU, 80 plus White, 650W
STC
650
Rigid Reliability, Extreme Silence
COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.
Power Conversion Efficiency
Up to 86% efficiency under 230V. A guaranteed highly reliable
power supply.
Active Power Factor Correction
High power conversion efficiency. PF value up to 99%, provides clean and reliable power

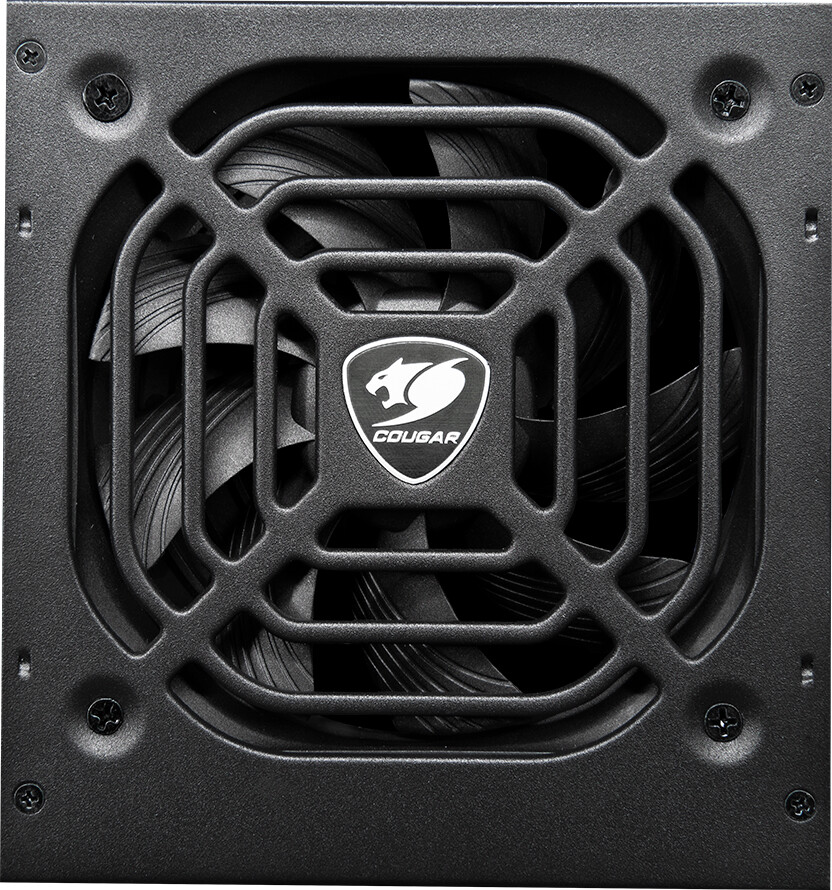

120mm Extreme Temperature Control
Using COUGAR’s exclusive 120mm silent fan, the advanced
frame increase the concentration of air-flow and its fan
curvature has been fine-tuned to reduce vibration at any loads,
helping you enjoy a quieter gaming experience.
Assigned Japanese Components
STC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.
The Japanese polypropylene capacitor minimize the
noise during the voltage transition.
Features
Active Power Factor Correction (Active PFC)
PFC value up to 99%, provides clean and reliable power.
Compatible with the Newest Components
Created for use with multi-core CPU and PCI express 3.0
graphics cards with 8(6+2) pin PCI-e connector.
Superior Fan Curve Tuning
Advanced technology for noise minimization
105°C Japanese Standby Capacitors
Reliable and durable components that extend the PSU’s
useful life.
Strong Safeguards : OCP, OPP, OVP, UVP & SCP
Maximum safety for your key system components
| Connector Color Cables |
MB | CPU | P-ATA | S-ATA | PCI-E |
| Pin | 24(20+4) | 8(4+4) | 4 | 5 | 8(6+2) |
| Length (mm) | 450 | 650 | 450 | ||
| STC 400 | 1 | 1 | 1 | 4 | 1 |
| STC 500 | 1 | 1 | 2 | 5 | 2 |
| STC 550 | 1 | 1 | 2 | 5 | 2 |
| STC 600 | 1 | 1 | 2 | 6 | 2 |
| STC 650 | 1 | 1 | 2 | 6 | 2 |
| STC 700 | 1 | 2 | 3 | 8 | 4 |
| STC 750 | 1 | 1 | 3 | 6 | 4 |
User Manual
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
Safety Standards
Технически детайли
| Тип захранване: | Захранващ модул |
| Разположение на захранването: | Plug-in-module |
| Напрежение на входа: | AC 200-240 V |
| Честота на входа: | 50 Hz |
| Номинален входящ ток: | 5 A |
| Максимално изходно захранване: | 650 W |
| Защита на веригата: | Пренапрежение Undervoltage Над ток Защита от късо съединение Over Power |
| Захранващ блок и адаптер - Характеристики: | Active PFC |
| 80 Plus Certification: | Да |
| Efficiency: | 86% |
| +3.3V: | 18 A (115 W) |
| +5V: | 20 A (115 W) |
| +12V: | 52 A (624 W) |
| -12V: | 0.3 A |
| +5VSB: | 3 A |
| 20+4-пинов конектор: | 1 |
| 4/8-pin +12V Power Connector: | 1 |
| 4 пинов периферен захранващ конектор: | 2 |
| 15 пинов S-ATA конектор: | 6 |
| 6/8-pin PCI Express Connector: | 2 |
| Брой инсталирани вентилатори: | 1 |
| Вентилатор - диаметър: | 120 мм |
| Външен цвят: | Черен |
| Включени аксесоари: | Ръководство за употреба |
Спецификация
| Тегло: | 2.00 kg |
| MPN: | STC650 |
| EAN: | 4710483776458 |
| Производител: | COUGAR |
