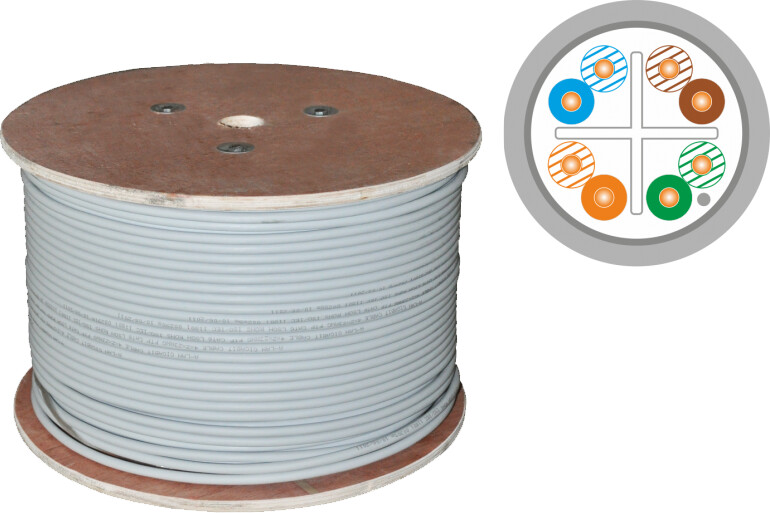

Кабел Q-Lantec FTP Cat.6 305m PVC, Grey - цена за 1m

Описание

Посочената цена е за метър!

• Category 6
• Class E (250MHz standard)
• AWG cross section 4x2x24AWG
• Conductors single-wire copper (100% Cu)
• Insulation polyethylene
• Fire classification CPR (Euroclass) Eca
• Center 4 pairs twisted on a cross-shaped core insert
• Screen polyester foil covered with aluminum layer laid with metal layer inwards, under the screen a grounding conductor made of tinned copper wire with a minimum diameter of 0.4 mm
• Coating polyvinyl with improved oxygen index (FRPVC)
• PoE 802.3 at
• Color light gray
• DC resistance loop ≤ 95 Ω /km
• Alternating resistance ≤ 2%
• Insulation resistance (500V) ≥ 5000 MΩ *km
• Capacitive reactive resistance at 800 Hz nom. 48 nF/km
• Variable reactive capacitive resistance ≤ 1500 pF/km
• Characteristic apparent resistance (1-100MHz) (100 ± 15) Ω
• Nominal velocity of propagation (NVP) 69%.
• Delayed propagation Nominally ≤ 535 ns/100m
• Delay angle Nominally ≤ 20 ns/100m
• DC system tester, 1 min (core) 1000 V
• Bending radius 4 x outer ø
• Max. pulling force 80 N
• Temperature range during use -30°C to + 50°C
• Temperature range during installation 0°C to + 50°C
• Outer diameter 7.3 mm
• Weight kg/km 55 kg
• Packing spool (305m)
