Описание
Connectivity Technology
Wired
Device Supported
Notebook
Cable Length
83 cm
Features
Power Delivery Pass-through
LED Power Indicator
Management Features
WLAN to LAN Switch
Port Disablement
Dell Command Update (DCU)
Intel AMT over Thunderbolt with select Intel vPro PCs
Kernel Direct Memory Access (DMA) Protection
Wake-on-LAN
Dock Power Button Sync
PXE Boot
MAC Address Pass-through
Number of Displays Supported
4
Screen Mode Supported
QHD @ 60Hz
WQHD @ 60Hz
4K @ 60Hz
5K @ 60Hz
6K @ 60Hz
8K @ 60Hz
4K @ 120Hz
Supported Resolutions
7680 x 4320
6144 x 3456
5120 x 2160
3840 x 2160
3440 x 1440
2560 x 1440
Maximum Data Transfer Rate
1.25 GB/s
Security Slot Type
Noble Wedge Security Slot
Kensington Security Slot
Power Delivery Details
4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
2 x Thunderbolt 5 (15W each)
All deliver power with or without PC
Power Delivery
Up to 300W (Dell Systems)
Up to 240W (non-Dell Systems)
Video Resolution Details
QHD - 60 Hz (Quad Display)
WQHD - 60 Hz (Triple Display)
4K - 60 Hz (Dual Display)
5K - 60 Hz (Single Display)
4K - 60 Hz (Quad Display)
4K - 60 Hz (Triple Display)
6K - 60 Hz (Dual Display)
8K - 60 Hz (Single Display)
4K - 120 Hz (Quad Display)
4K - 120 Hz (Triple Display)
Ethernet Technology
2.5 Gigabit Ethernet

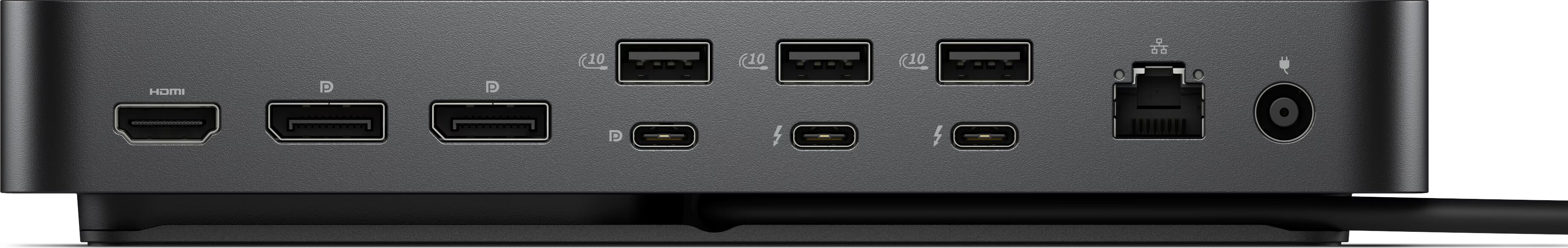

Host Interface
Video interfaces
2 x DP2.1
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
2 x Thunderbolt 5
USB Ports (Data Only)
4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)
Total Number of USB Ports
6
Number of USB 3.2 Gen 2 Type-A Ports
4
Number of USB Type-A Ports
4
Number of USB Type-C Ports
2
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)
Network (RJ-45)
Yes
Number of DisplayPorts
2
DisplayPort
Yes
DisplayPort Version
2.1
Number of HDMI Ports
1
HDMI
Yes
HDMI Version
2.1
Thunderbolt
Yes
Thunderbolt Ports Quantity
2
Operating System Supported
Windows 10
Windows 11
Ubuntu 24.04
macOS
Red Hat Enterprise Linux 9.7
ChromeOS 141
Maximum Power Supply Wattage
330 W
Power Source Type
Power Adapter
Height
205 mm
Width
90 mm
Depth
35.3 mm
Weight (Approximate)
632 g
Package Contents
- SD25TB5 Docking Station
- Power Adapter
- Power Cord
- Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
