| Part number / Product code | 83LY00RRBM |

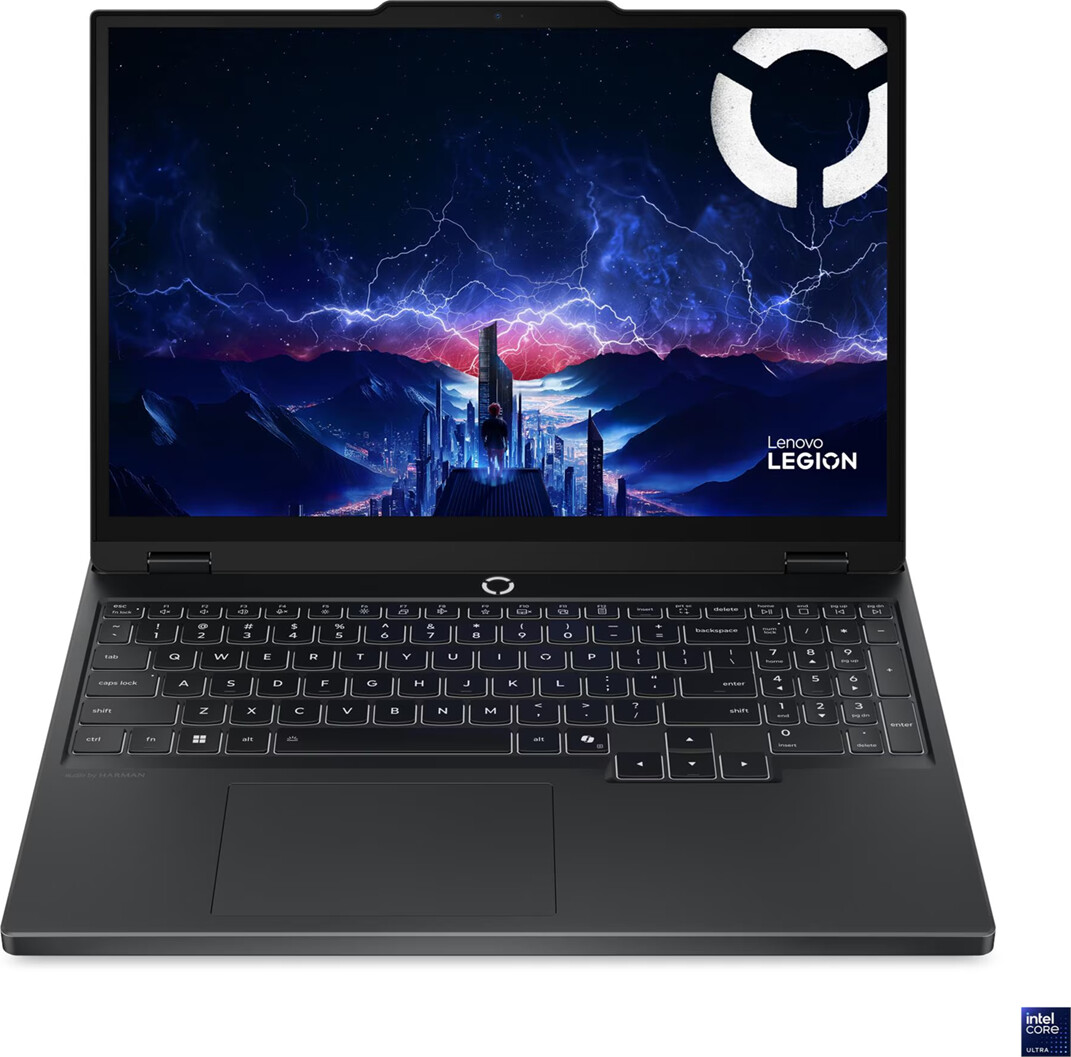

| Model | Legion 5 15IRX10 |
| Type | Gaming Laptop |
| CPU model | Intel Core™ i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB Intel® Smart Cache |
| Memory size | 16GB |
| Memory type | SODIMM DDR5-5600;
Max Memory: Up to 32GB DDR5-5600 offering |
| Graphics | NVIDIA GeForce RTX™ 5050 8GB GDDR7, Boost Clock 2662MHz, TGP 115W, 440 AI TOPS |
| SSD | 512GB |
| Disk specifications | SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Screen size | 15.1" |
| Screen type | OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600, OLED models: 90% AAR (active area ratio), Factory Color Calibration |
| Screen resolution | WQXGA (2560x1600) |
| Interface | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1);
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On;
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 95-100W and DisplayPort™ 2.1;
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4;
1x HDMI® 2.1, up to 8K/60Hz;
1x Headphone / microphone combo jack (3.5mm);
1x Ethernet (RJ-45);
1x Slim tip (rectangle) power connector;
Various docking solutions supported via USB-C® |
| LAN | 100/1000M (RJ-45) |
| Wi-Fi | Wi-Fi® 7, 802.11be 2x2 |
| Bluetooth | BT5.4 |
| Camera | 5.0MP with E-shutter |
| Audio | High Definition (HD) Audio, Realtek® ALC3287 codec;
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio;
Microphone 2x, Array |
| Keyboard | Bulgarian Layout;
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm |
| Keyboard backlit | Yes, White Backlight |
| Expansion slots | Two DDR5 SODIMM slots, dual-channel capable;
Two M.2 2280 PCIe® 4.0 x4 slots |
| OS | None |
| Security | Firmware TPM 2.0 Enabled;
No Fingerprint Reader;
E-shutter |
| Battery | 80Wh |
| Material | Aluminium (Top), PC-ABS + 15% Talc (Bottom) |
| Color | Eclipse Black (with White Backlit Keyboard) |
| Features | AI Chip: LA1 |
| Power adapter | 245W Slim Tip (3-pin) |
| Weight | Starting at 1.9 kg |
| Dimensions | 344.9 x 255.35 x 19.95-21.54 mm |
