Описание

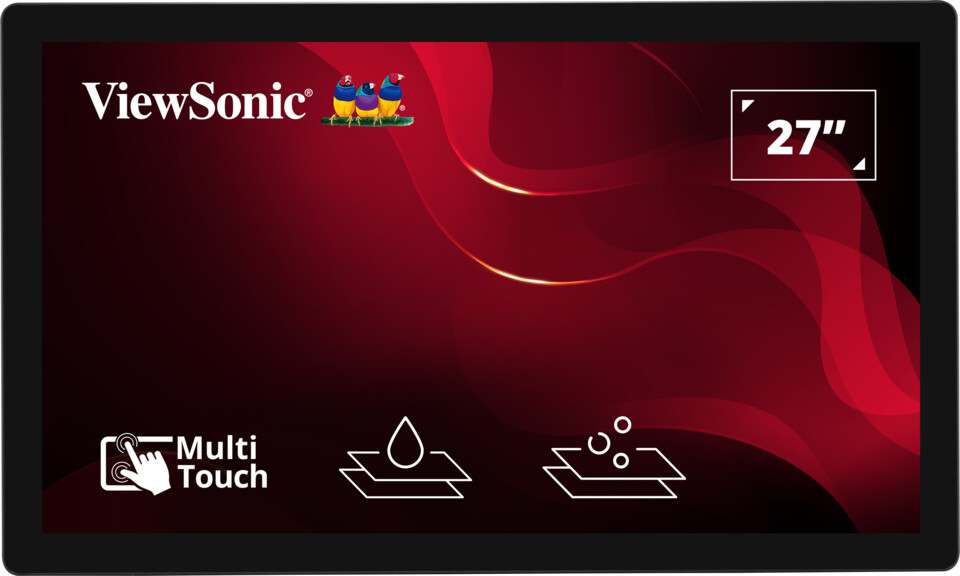

The ViewSonic XF2730 is an open-frame monitor designed for commercial and industrial applications, such as medical check-in kiosks, ensuring reliable 24/7 operation. Its durable 3mm thick glass screen protects against moisture and scratches, ensuring long-lasting performance. The intuitive 10-point PCAP touch technology delivers smooth, responsive interaction, enhancing the user experience. With versatile connectivity options, including HDMI, DisplayPort, and VGA, content sharing is simple and seamless. The VESA-compatible design allows for flexible installation on any surface or orientation.Stylus support with either EMP or MPP technology, and a light sensor that adjusts screen brightness for optimal visibility and energy efficiency.
Display
Aspect Ratio: 16:9
Screen Size: 27"
Active Area: 597.9(H) x 336.3 (V)
Pixel Pitch (mm): 0.31 (H) x 0.31 (V)
Resolution: 1920 x 1080
Contrast Ratio: 1000:1
Brightness: 255 cd/m²
Viewing Angles: H:178° V:178°
Response Time: 14 ms
Display Colors: 16.7 M
Backlight Life: 30,000 hrs
Color Gamut: NTSC 72%
Surface Treatment: Hard coating (7H)
Cover Glass Thickness: 3 mm
Touch Screen: PCAP 10 points
Compatibility
PC Resolution (max): 1920 x 1080
Mac Resolution (max): 1920 x 1080
Operating System: Windows & macOS
Connector
USB 2.0 Type-B: 1 (for touch screen only)
3.5mm Audio in: 1
HDMI: 1
DisplayPort: 1
VGA: 1
Power In: DC socket
Power
Power Consumption (typical): 25.32 W
Power Consumption (max): 27.8 W
Stand-by: 1.69 W
Voltage: AC 100 - 240V, DC 12V/4A
Controls
Physical Controls: Auto, Menu, Left, Right, Exit, Power
OSD: Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Reset
Operating Conditions
Temp. (operating): 0 - 50˚C (Non-condensation)
Temp. (storage): -20 - 60˚C (Non-condensation)
Humidity: 5-90 (%RH)
Wall Mount
VESA Compatible: 75 x 75 mm & 100 x 100 mm
Dimensions
Physical (W x H x D): 650.4 x 388.4 x 50.7 mm
Box (W x H x D): 740 x 490 x 130 mm
Stylus Support
Stylus: MPP 1.5 or later protocol supported (optional)
Ingress Protection Rating
IP65 front touchscreen
General
Package Contents: HDMI cable x1, USB A/B cable x1, 3-pin power cord x1, Quick start guide x1, AC/DC adapter x1
Regulation / Compliance: FCC, CE, CB, RoHS
Optional: Light sensor
