| Part number / Product code | 13G0000JBL |

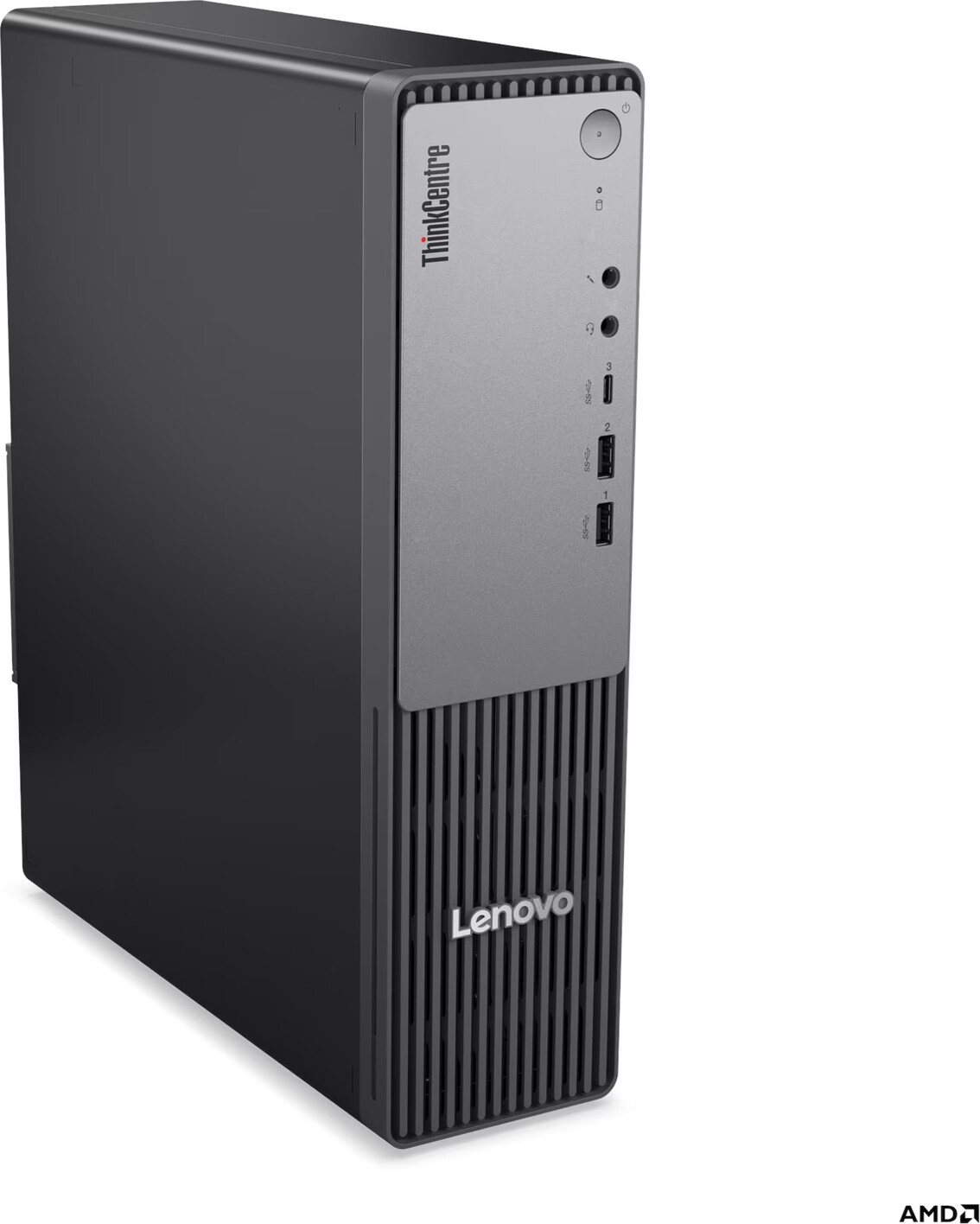

| Model | ThinkCentre neo 55s Gen 6 |
| Mainboard | Lenovo proprietary motherboard |
| Chipset | AMD SoC Platform |
| CPU model | AMD Ryzen™ 7 250 (8C / 16T, 3.3 / 5.1GHz, 8MB L2 / 16MB L3);
Integrated AMD Ryzen™ AI, up to 16 TOPS |
| Memory size | 16GB |
| Memory type | SODIMM DDR5-5600;
Max Memory: Up to 64GB DDR5-5600 |
| Graphics | Integrated AMD Radeon™ 780M Graphics |
| SSD | 512GB |
| Disk specifications | SSD M.2 2280 PCIe® 4.0x4 NVMe® |
| Interfaces/Ports | Front Ports:;
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging;
2x USB-A (USB 5Gbps / USB 3.2 Gen 1);
1x headphone / microphone combo jack (3.5mm);
1x microphone (3.5mm);
Rear Ports:;
2x USB-A (Hi-Speed USB / USB 2.0);
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On;
1x HDMI® 2.1 TMDS;
1x DisplayPort™ 1.4;
1x Ethernet (RJ-45);
1x line-out (3.5mm) |
| Expansion slots | Two DDR5 SODIMM slots, dual-channel capable;
One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm;
Three M.2 slots (one for WLAN, two for SSD) |
| LAN | Integrated 100/1000M |
| Built-in devices | Optional integrated 1W speaker (SKU not verified) |
| Audio | High Definition (HD) Audio, Realtek® ALC623 codec;
Speakers 1Wx1 |
| OS | None |
| Power supply | 260W 90% |
| Color | Raven Black |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified;
Kensington Security Slot™;
Chassis Intrusion Switch |
| Features | Small Form Factor, DDR5 Memory, PCIe 4.0, NVMe SSD Support |
| Mechanical design | Small Form Factor (SFF), 8.2L |
| Accessories | Keyboard: USB, Calliope, Black, Bulgarian;
Mouse: USB Calliope Mouse, Black |
| Weight | Around 4.33 kg |
| Dimensions | 89 x 274.8 x 336 mm |
