| Part number / Product code | A002FV1P1 |

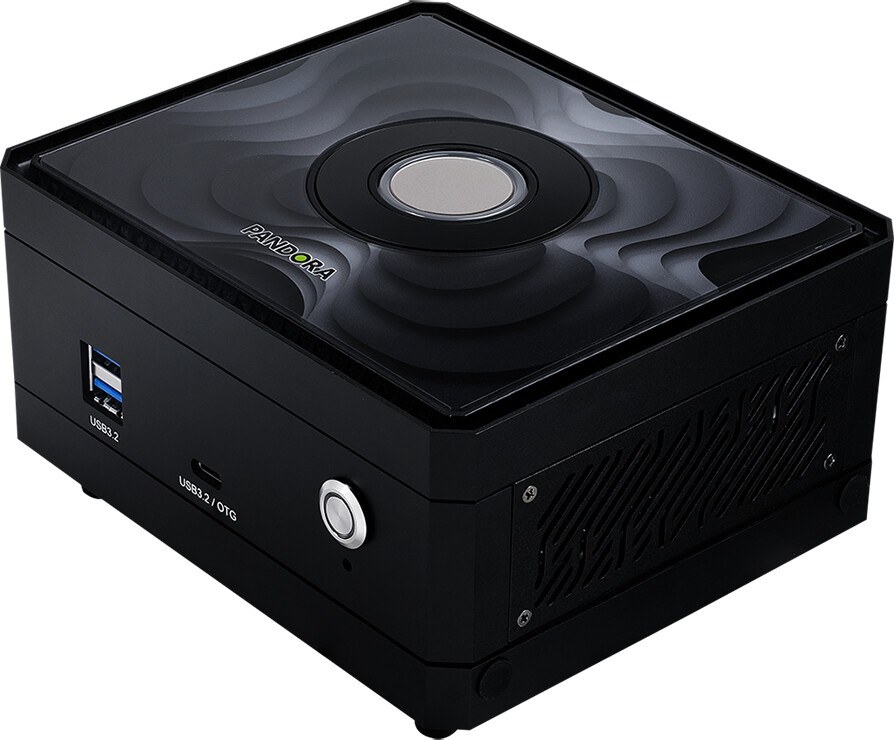

| Model | Pandora NVIDIA Jetson Orin NX 16GB Super Ready |
| Mainboard | Palit Pandora Carrier Board, 115 × 115 mm |
| Chipset | NVIDIA Jetson Orin NX 16GB Super SoM |
| CPU model | 8-Core Arm Cortex-A78AE v8.2 64-bit;
2 MB L2 + 4 MB L3 Cache |
| Memory size | 16 GB |
| Memory type | LPDDR5 |
| Memory | 16 GB LPDDR5; 128-bit, 102.4 GB/s Bandwidth |
| Graphics | NVIDIA Ampere GPU;
1024 CUDA Cores;
32 Tensor Cores |
| SSD | 128 GB Pre-installed M.2 NVMe SSD |
| Disk specifications | M.2 2280 PCIe Gen4 ×2 SSD;
Additional M.2 PCIe Gen4 ×4 Storage Support |
| Display | External Display via HDMI 2.0 |
| I/O | 1 × HDMI 2.0;
2 × USB 3.2 Gen 2 Type-A;
1 × USB 3.2 Gen 2 Type-C (OTG);
2 × USB 2.0 Type-A;
2 × RJ45;
2 × 3.5 mm Audio Jacks |
| Interfaces/Ports | HDMI;
USB-A;
USB-C;
Gigabit Ethernet;
Audio In/Out;
MIPI CSI-2;
GPIO;
UART;
I2C;
SPI;
CAN Bus |
| Expansion slots | 1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD );
1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards;
1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module.;
1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module. |
| LAN | 2 × Gigabit Ethernet (10/100/1000 Mbps) |
| Wireless | Optional Wi-Fi via M.2 Module;
Optional 4G/5G Module |
| Bluetooth | Optional via Compatible Wireless Module |
| Built-in devices | NVIDIA Jetson Orin NX 16GB SoM;
128 GB SSD |
| Camera | External MIPI CSI-2 Camera Support;
8 Lanes;
D-PHY 2.1 |
| Audio | 1 × 3.5 mm Line In;
1 × 3.5 mm Line Out;
I2S Interface |
| Power supply | DC Input: 12–36 V |
| Features | AI Performance: 157 TOPS Sparse / 78 TOPS Dense;
NVIDIA Ampere GPU;
Edge AI Computing;
4 × M.2 Expansion Slots |
| Mechanical design | Compact Embedded AI Computer |
| Other | 40-Pin Header;
14-Pin Header;
Nano SIM Slot;
CAN Bus;
Firmware Upgradable;
Operating Temperature: 0–60°C with Airflow;
Storage Temperature: -20–80°C |
| Weight | 470 g |
| Dimensions | 145 × 123 × 66 mm |
