| Part number / Product code | 4H020-06-40G |

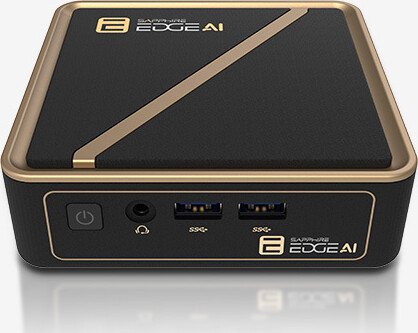

| Model | EDGE AI 340 |
| Mainboard | Proprietary Mini PC Mainboard;
AMD FP8 Platform |
| Chipset | AMD Ryzen AI 300 Series Integrated Platform |
| CPU model | AMD Ryzen AI 5 340, 6 Cores / 12 Threads, Up to 4.8 GHz, 22 MB Total Cache, NPU (Up to) 50 TOPS |
| Memory size | No RAM Installed;
Up to 96 GB Supported |
| Memory type | DDR5-5600 SO-DIMM |
| Memory | 2 × DDR5 SO-DIMM Slots;
Dual Channel;
Up to 96 GB (2 × 48 GB) |
| Graphics | Integrated AMD Radeon 840M Graphics |
| SSD | Supports M.2 NVMe SSD |
| Storage | 1 × M.2 2280 PCIe 4.0 x4;
1 × M.2 2242 PCIe 4.0 x4 |
| Disk specifications | PCIe NVMe SSD Support |
| Display | Supports Up to 4 External Displays |
| I/O | Front: 2 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm Audio Jack;
Rear: 2 × USB4 Type-C, 1 × USB 3.2 Gen 2 Type-A, 1 × USB 2.0 Type-A, 2 × HDMI 2.1, 1 × RJ-45, 1 × DC-In |
| Interfaces/Ports | USB4 40 Gbps;
USB 3.2 Gen 2 10 Gbps;
USB 2.0;
HDMI 2.1;
2.5GbE LAN;
3.5 mm Audio |
| Expansion slots | 1 × M.2 2280 PCIe 4.0 x4;
1 × M.2 2242 PCIe 4.0 x4;
1 × M.2 2230 Key E (Occupied by Wireless Module) |
| LAN | 2.5 Gigabit Ethernet |
| Wireless | Wi-Fi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.2 |
| Built-in devices | AMD Ryzen AI NPU;
Integrated Graphics;
Wi-Fi / Bluetooth Module |
| Audio | Realtek ALC256;
3.5 mm Audio Jack;
HDMI / USB-C Digital Audio |
| Power supply | External 120 W Power Adapter;
19 V DC / 6.32 A |
| Power | CPU Default TDP: 28 W |
| Color | Black / Gold |
| Security | Kensington Security Lock Slot |
| Features | AMD Ryzen AI NPU Up to 50 TOPS;
Copilot+ PC Capable;
Quad Display Support;
Wi-Fi 6E;
2.5GbE;
USB4 |
| Mechanical design | Compact Mini PC;
Active Cooling;
VESA Mounting Support |
| Dimensions | 117 × 111 × 30 mm (W × D × H) |
