| Part number / Product code | 90MB1N00-M0EAY0 |

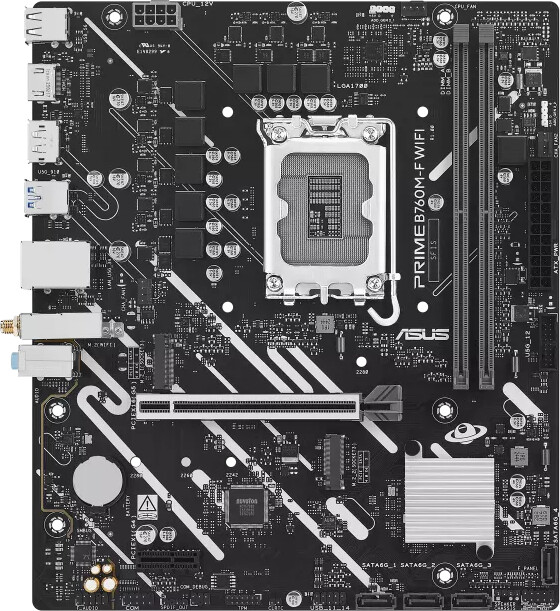

| Model | PRIME B760M-F WIFI |
| Socket | Intel LGA1700 |
| Graphics | 1 x DisplayPort**;
1 x HDMI™ port***;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
*** Supports 4K@30Hz as specified in HDMI 1.4. |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 |
| Expansion slots | Intel® CoreTM Processors (14th & 13th & 12th Gen);
1 x PCIe 5.0 x16 slot;
Intel® B760 Chipset;
1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;
Intel® Core™ Processors (14th & 13th & 12th Gen);
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);
Intel® B760 Chipset;
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);
4 x SATA 6Gb/s ports;
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Memory type | 2 x DIMM slots, Max. 96GB, DDR5;
8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;
Dual channel memory architecture;
Supports Intel® Extreme Memory Profile (XMP) memory module |
| Rear panel I/O | 4 x USB 5Gbps ports (4 x Type-A);
2 x USB 2.0 ports (2 x Type-A);
1 x HDMI™ port;
1 x DisplayPort;
1 x Wi-Fi module;
1 x Realtek 1Gb Ethernet port;
3 x Audio jacks |
| USB | Rear USB (Total 6 ports);
4 x USB 5Gbps ports (4 x Type-A);
2 x USB 2.0 ports (2 x Type-A);
Front USB (Total 4 ports);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Connectors | Fan and Cooling Related;
1 x 4-pin CPU Fan header;
2 x 4-pin Chassis Fan headers;
Power Related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V CPU Power connector;
Storage Related;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 2 additional USB 2.0 ports;
Miscellaneous;
2 x Addressable RGB Gen 2 headers;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (F_AUDIO);
1 x S/PDIF Out header;
1 x Speaker header;
1 x SPI TPM header (14-1pin);
1 x 10-1 pin Front Panel System header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB layers;
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Lan | 1 x Realtek 1Gb Ethernet;
ASUS LANGuard |
| Wireless | Wi-Fi 6;
1x1 Wi-Fi 6 (802.11ax);
Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth® v5.3 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | micro-ATX |
| OS | Windows® 11, Windows® 10 64-bit |
| Other | Special Features;
ASUS 5X PROTECTION III;
- DIGI+ VRM;
- LANGuard;
- Overvoltage Protection;
- SafeSlot;
- Stainless-Steel Back I/O;
ASUS Q-Design;
- Q-DIMM;
- Q-LED Core;
- Q-Slot;
ASUS EZ DIY;
- ProCool;
ASUS Thermal Solution;
- Aluminum heatsink design;
Aura Sync;
- Addressable RGB Gen 2 headers |
| Dimensions | 24.4cm x 21.1cm |
