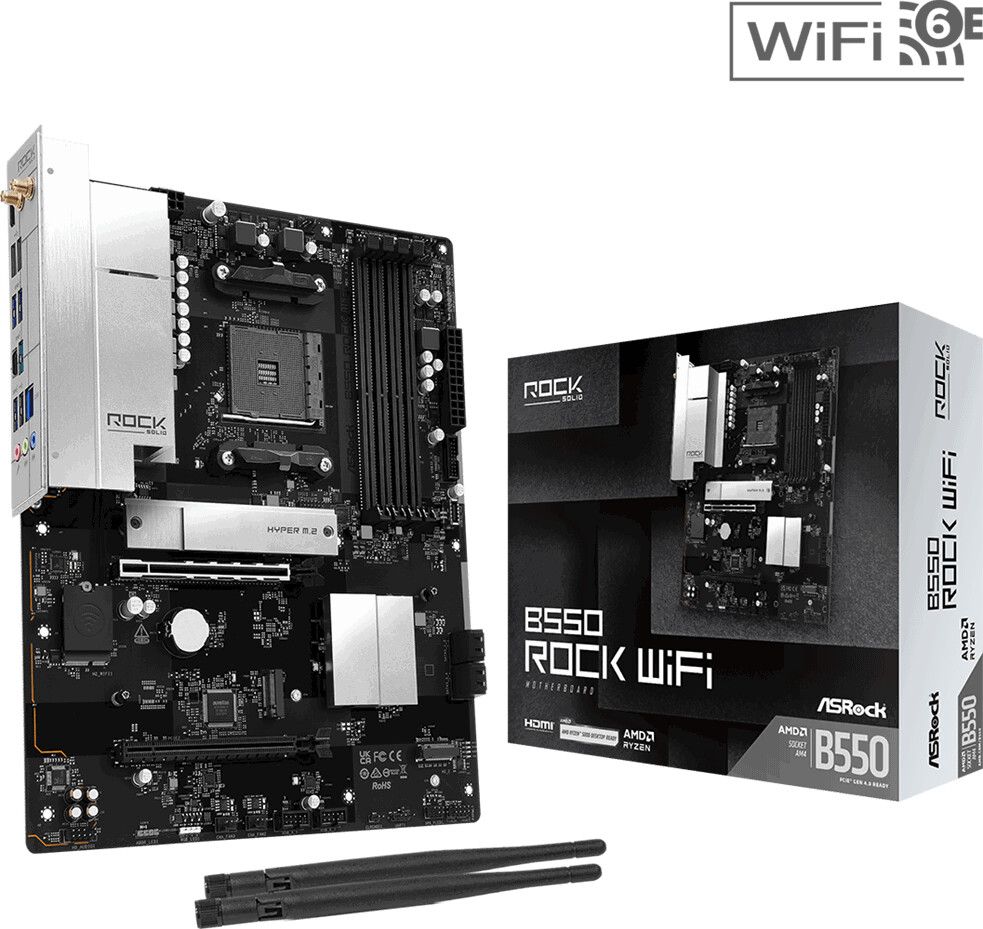

Дънна платка ASROCK B550 ROCK WIFI

Дънна платка ASROCK B550 ROCK WIFI

  • Производител:
    ASRock
  • Гаранция:
    3 години

Тагове: Дънни платки ASRock

123,60 €
На склад Код: 95683

Описание

ASROCK B550 ROCK WIFI


Спецификация

ModelB550 Rock WiFi
SocketAMD AM4
GraphicsIntegrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU); - 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz
CPU's supportedSupports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
ChipsetAMD B550
Expansion slotsAMD Ryzen series CPUs (Vermeer and Matisse); - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE2: Gen3 x2 mode); AMD Ryzen series APUs (Cezanne and Renoir); - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE2: Gen3 x2 mode); AMD Ryzen series APUs (Picasso); - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE2: Gen3 x2 mode); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
StorageCPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso); Chipset:; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes; - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors
RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Memory type- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory; - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory; - Max. capacity of system memory: 128GB; - Supports Extreme Memory Profile (XMP) memory modules; - 15μ Gold Contact in DIMM Slots
Rear panel I/O- 2 x Antenna Ports; - 1 x HDMI Port; - 1 x USB 3.2 Gen1 Type-C Port; - 4 x USB 3.2 Gen1 Type-A Ports; - 3 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
USBCPU:; - 1 x USB 3.2 Gen1 Type-C (Rear); - 3 x USB 3.2 Gen1 Type-A (3 Rear (USB32_12 and USB32_3)); Chipset:; - 1 x USB 3.2 Gen1 Type-C (Front); - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_4), 2 Front); - 7 x USB 2.0 (3 Rear, 4 Front)
Connectors- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header; - 3 x Addressable LED Headers; - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Wireless- 802.11axe Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax/axe; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.3; - Supports MU-MIMO
BluetoothSupports Bluetooth 5.3
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Form factorATX; 2oz Copper PCB
OSMicrosoft Windows® 10 64-bit / 11 64-bit
OtherRock-Solid Durability; - 8+2 Power Phase; - Pre-Installed I/O Shield; Ultrafast Connectivity; - 2.5G LAN, 802.11axe Wi-Fi 6E Module; EZ Troubleshooter; - ASRock Post Status Checker
Dimensions30.5 cm x 24.4 cm

Спецификация

Тегло: 1.00 kg
MPN: B550 ROCK WIFI
EAN: 4711581494732
Производител: ASRock

Тагове: Дънни платки ASRock
