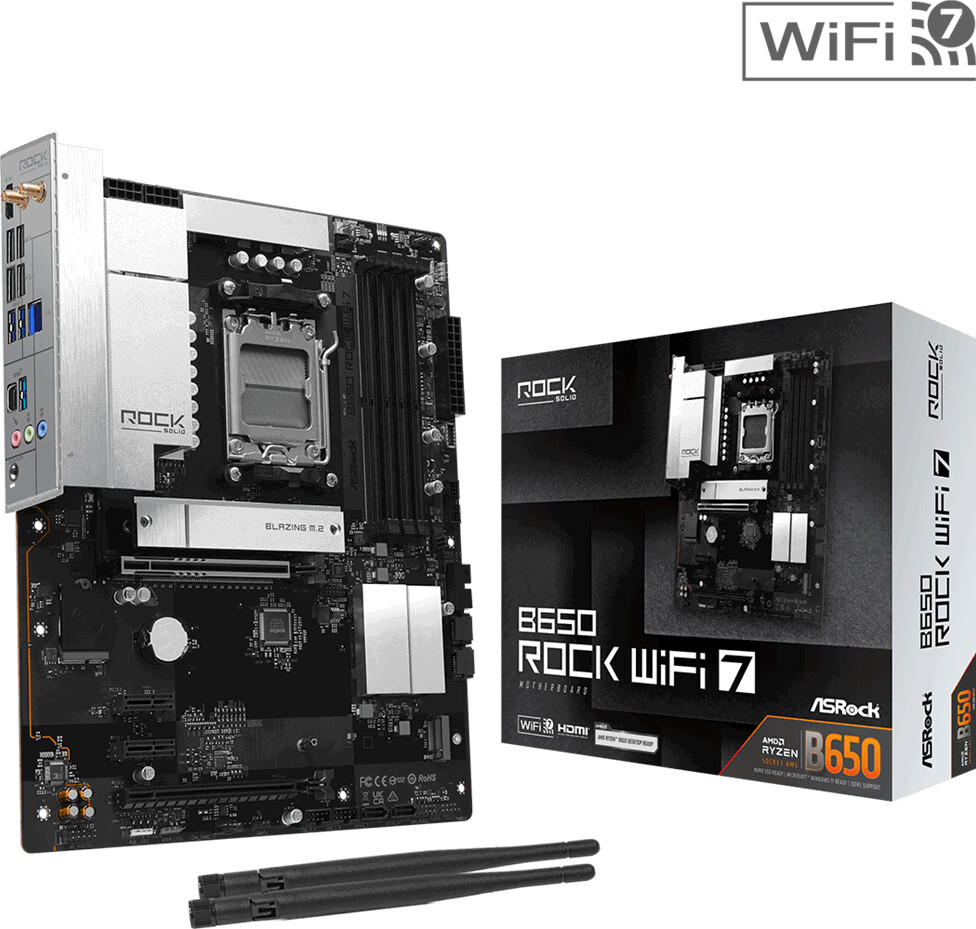

| Model | B650 Rock WiFi 7 |
| Socket | AMD AM5 |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| Expansion slots | CPU:;
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;
- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode;
Chipset:;
- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3);
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;
Chipset:;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
- 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Memory type | Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);
Max. capacity of system memory: 256GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Rear panel I/O | 2 x Antenna Ports;
1 x HDMI Port;
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s);
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s);
2 x USB 3.2 Gen1 Ports;
4 x USB 2.0 Ports;
1 x RJ-45 LAN Port;
1 x BIOS Flashback Button;
HD Audio Jacks: Line in / Front Speaker / Microphone |
| USB | CPU:;
- 1 x USB 3.2 Gen2 Type-C (Rear);
- 1 x USB 3.2 Gen2 Type-A (Rear);
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1));
Chipset:;
- 1 x USB 3.2 Gen1 Type-C (Front);
- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_2), 4 Front);
- 8 x USB 2.0 (4 Rear, 4 Front) |
| Connectors | 1 x SPI TPM Header;
1 x Power LED and Speaker Header;
1 x RGB LED Header;
3 x Addressable LED Headers;
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);
1 x 24 pin ATX Power Connector;
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);
1 x Front Panel Audio Connector;
2 x USB 2.0 Headers (Support 4 USB 2.0 ports);
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);
1 x Front Panel Type C USB 3.2 Gen1 Header |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Lan | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;
Dragon RTL8125BG;
Supports Dragon 2.5G LAN Software;
Smart Auto Adjust Bandwidth Control;
Visual User Friendly UI;
Visual Network Usage Statistics;
Optimized Default Setting for Game, Browser, and Streaming Modes;
User Customized Priority Control |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/be;
Supports 2.4GHz/5GHz/6GHz frequency band;
Supports 160MHz channel bandwidth with 6GHz frequency band;
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;
Supports Bluetooth 5.4;
Supports MU-MIMO |
| Bluetooth | Supports Bluetooth 5.4 |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | ATX, 8 Layer PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Other | Superb Productivity;
- PCIe Gen5 (Graphics, M.2);
- Dual Channel DDR5;
Rock-Solid Durability;
- 9+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC;
- Pre-Installed I/O Shield;
Ultrafast Connectivity;
- 2.5G LAN, 802.11be Wi-Fi 7 Module;
EZ Update;
- BIOS Flashback Button;
- ASRock Auto Driver Installer;
EZ Troubleshooter;
- ASRock Post Status Checker |
| Dimensions | 30.5 cm x 24.4 cm |
