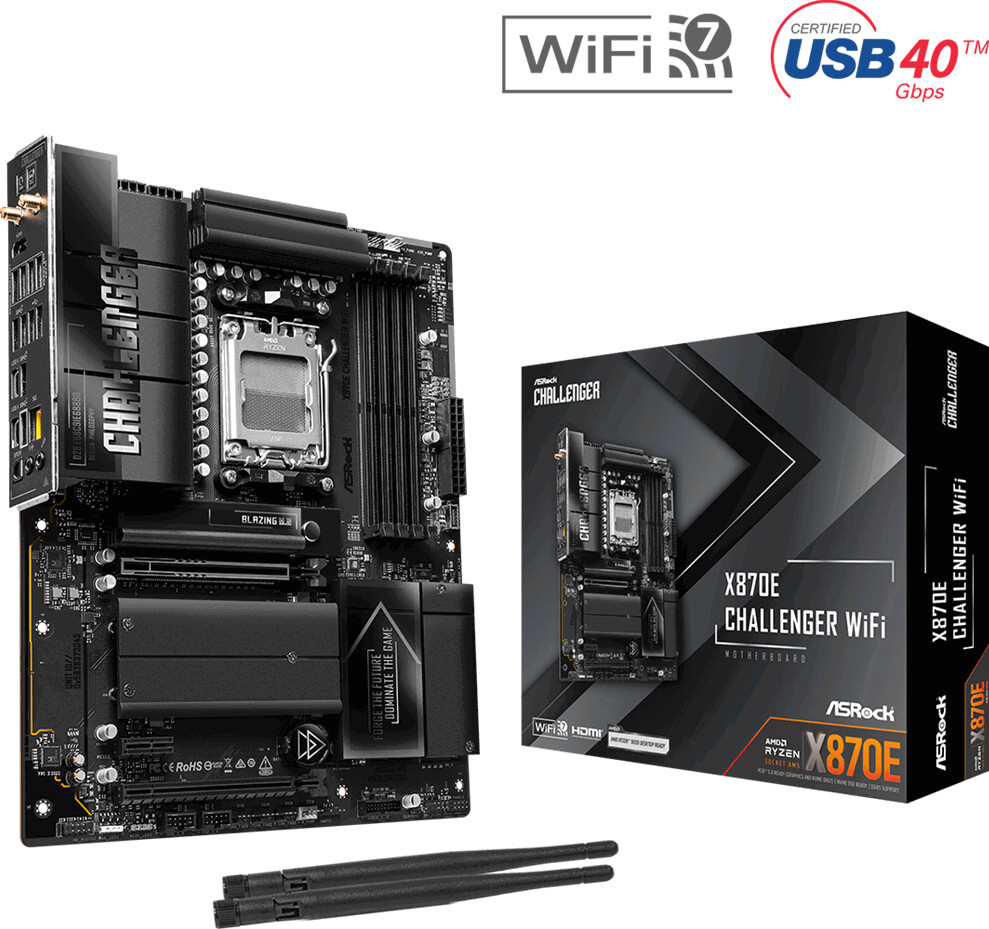

| Model | X870E Challenger WiFi |
| Socket | AMD AM5 |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X870E |
| Expansion slots | CPU:;
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;
Chipset:;
- 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode;
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode;
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;
* Chipset:;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
- 2 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Memory type | Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC);
Max. capacity of system memory: 256GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Rear panel I/O | 2 x Antenna Ports;
1 x HDMI Port;
1 x Optical SPDIF Out Port;
2 x USB4 Type-C Ports (40 Gb/s);
5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.);
3 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.);
2 x USB 2.0 Ports;
1 x RJ-45 LAN Port;
1 x Clear CMOS Button;
1 x BIOS Flashback Button;
1 x Line Out Jack (Gold Audio Jack);
1 x Microphone Input Jack (Gold Audio Jack) |
| USB | CPU:;
- 2 x USB4 Type-C (Rear);
- 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7));
Chipset:;
- 1 x USB 3.2 Gen2x2 Type-C (Front);
- 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56));
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front);
- 6 x USB 2.0 (2 Rear, 4 Front) |
| Connectors | 1 x Power LED and Speaker Header;
1 x RGB LED Header;
3 x Addressable LED Headers;
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);
1 x 24 pin ATX Power Connector (Hi-Density Power Connector);
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);
1 x Front Panel Audio Connector;
2 x USB 2.0 Headers (Support 4 USB 2.0 ports);
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);
Individual PCB Layers for R/L Audio Channel;
Nahimic Audio |
| Lan | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s;
Realtek RTL8126 |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/be;
Supports 2.4GHz/5GHz/6GHz frequency band;
Supports 160MHz channel bandwidth with 6GHz frequency band;
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;
Supports Bluetooth 5.4;
Supports MU-MIMO |
| Bluetooth | Supports Bluetooth 5.4 |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | ATX, 8 Layer PCB, 2oz Copper PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Other | Superb Productivity;
- PCIe Gen5 (Graphics, M.2);
- Dual Channel DDR5;
- USB4 Type-C Ports (40 Gb/s);
Rock-Solid Durability;
- Server-Grade Low-Loss PCB;
- 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor;
- Flexible Integrated I/O Shield Ultrafast Gaming;
- 5G LAN, 802.11be Wi-Fi 7 Module;
- ASRock Lightning Gaming Ports;
EZ Update;
- BIOS Flashback Button;
- ASRock Auto Driver Installer;
EZ Troubleshooter;
- ASRock Post Status Checker |
| Dimensions | 30.5 cm x 24.4 cm |
