Описание

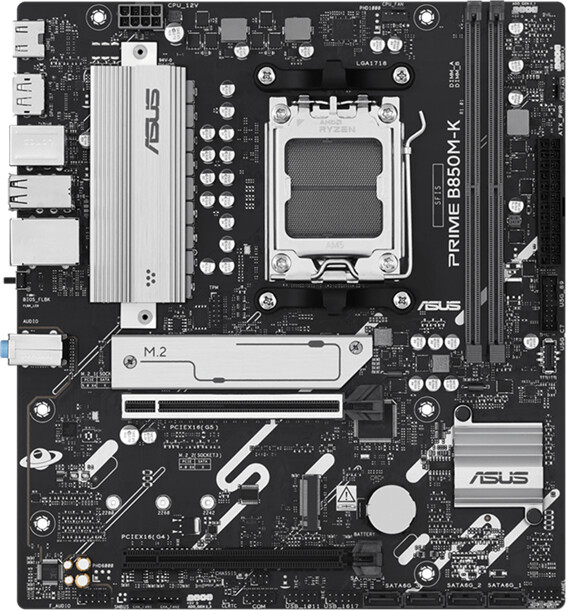

ASUS PRIME B850M-K
Спецификация
| USB | Rear USB (Total 8 ports);2 x USB 10Gbps ports (2 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A |
| Memory type | 2 x DIMM slots, max. 128GB, DDR5 Supports up to;8200+MT/s(OC) with Ryzen™ 9000 Series Processors,;8400+MT/s(OC) with Ryzen™ 8000 Series Processors,;8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |
| Features | ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- Q-Dashboard;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- M.2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack™ button;- BIOS FlashBack™ LED;- SafeSlot;Aura Sync;- Addressable RGB Gen 2 headers |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Graphics | 1 x DisplayPort;1 x HDMI™ port |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode)AMD B850 Chipset;1 x PCIe 4.0 x16 slot (support x4 mode) |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*;AMD B850 Chipset;4 x SATA 6Gb/s ports;* Specifications vary by CPU types.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| I/O | 2 x USB 10Gbps ports (2 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks1 x BIOS FlashBack™ button;1 x PS/2 Keyboard/Mouse combo port |
| Connectors | Fan and Cooling Related;1 x 4-pin CPU Fan header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable RGB Gen 2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| LAN | 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor;24.4 cm x 22.1 cm |
| OS | Windows® 11, Windows® 10 64-bit |
Спецификация
| MPN: |
90MB1LV0-M0EAY0 |
| EAN: |
4711636005517 |
| Производител: |
ASUS |
Тагове: Дънни платки ASUS, AMD AM5, microATX, AMD B850
