Описание

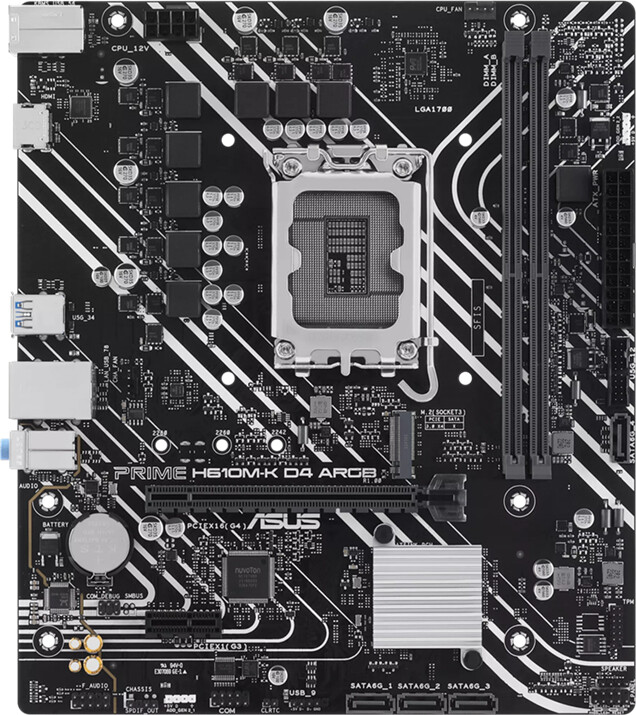

ASUS PRIME H610M-K-D4 ARGB
Спецификация
| Model | PRIME H610M-K D4 ARGB |
| Graphics | 1 x HDMI™ port**;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports 4K@60Hz as specified in HDMI 2.1. |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;
* Refer to www.asus.com for CPU support list.;
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H610 |
| Expansion slots | Intel® Core™ Processors (14th & 13th & 12th Gen);
1 x PCIe 4.0 x16 slot (supports x16 mode);
Intel® H610 Chipset;
1 x PCIe 3.0 x1 slot;
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;
Intel® H610 Chipset;
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);
4 x SATA 6Gb/s ports |
| Memory type | 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*;
Dual channel memory architecture;
Supports Intel® Extreme Memory Profile (XMP) memory module |
| Rear panel I/O | 2 x USB 5Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
1 x HDMI™ port;
1 x Realtek 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 keyboard/mouse combo port |
| USB | Rear USB (Total 6 ports);
2 x USB 5Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
Front USB (Total 3 ports);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Connectors | Fan and Cooling Related;
1 x 4-pin CPU Fan header;
1 x 4-pin Chassis Fan header;
Power Related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage Related;
1 x M.2 slot (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 1 additional USB 2.0 port;
Miscellaneous;
2 x Addressable Gen 2 headers;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (F_AUDIO);
1 x S/PDIF Out header;
1 x Speaker header;
1 x SPI TPM header (14-1 pin);
1 x 10-1 pin System Panel header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB layers;
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Lan | 1 x Realtek 1Gb Ethernet |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | micro-ATX Form Factor;
23.4 cm x 20.3 cm |
| OS | Windows® 11, Windows® 10 64-bit |
Спецификация
| MPN: |
90MB1HN0-M0EAY0 |
| EAN: |
4711387460177 |
| Производител: |
ASUS |
