Описание

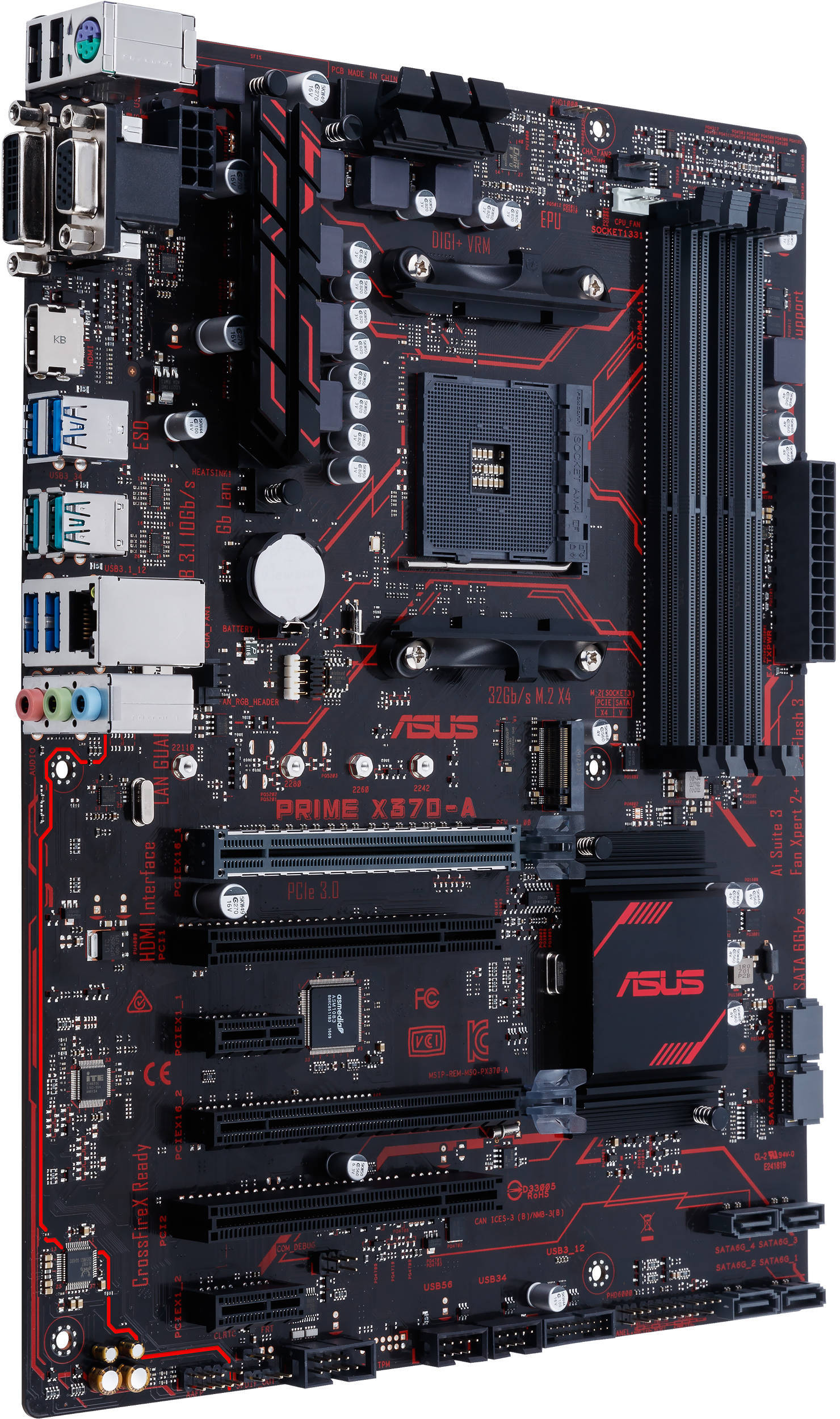

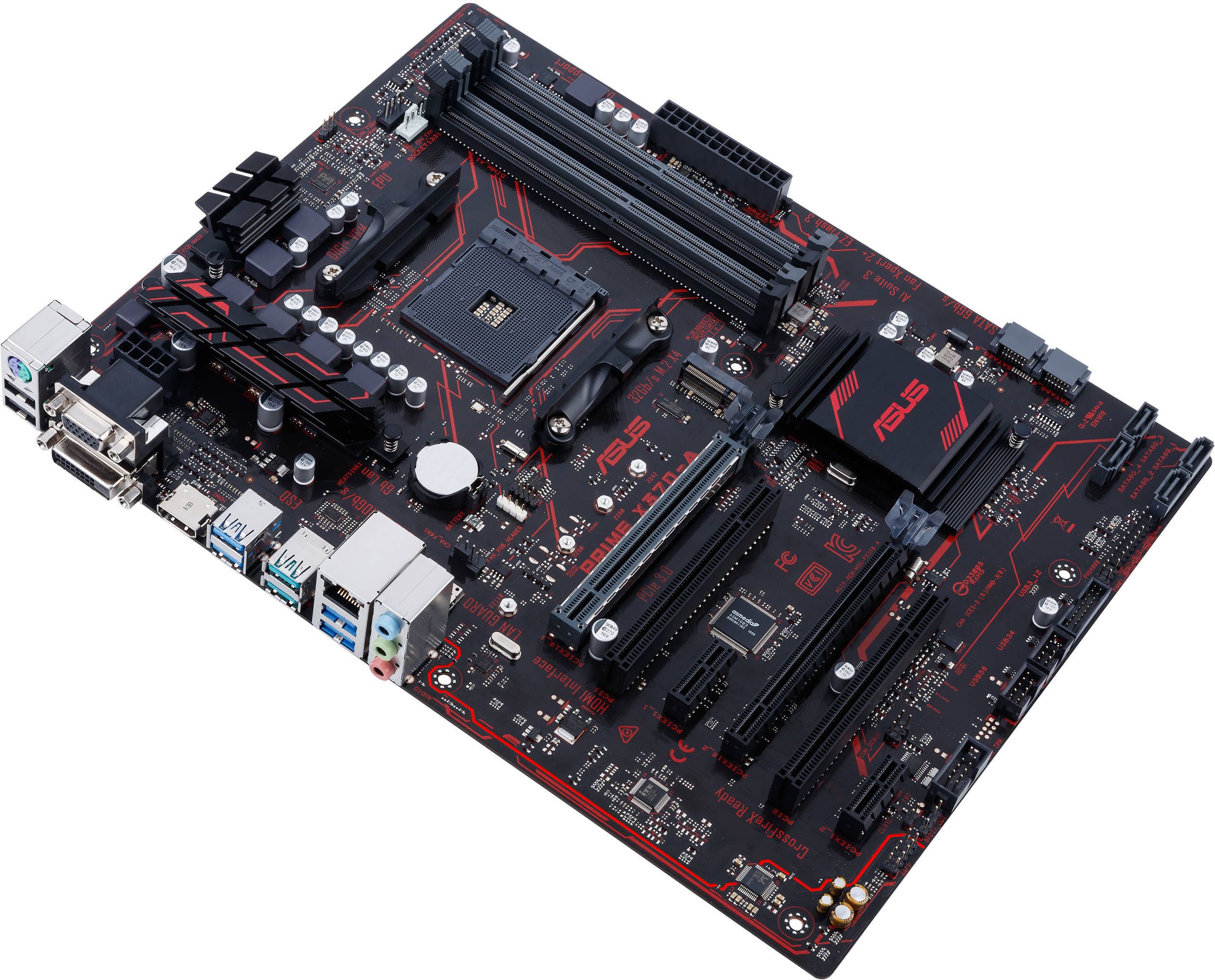

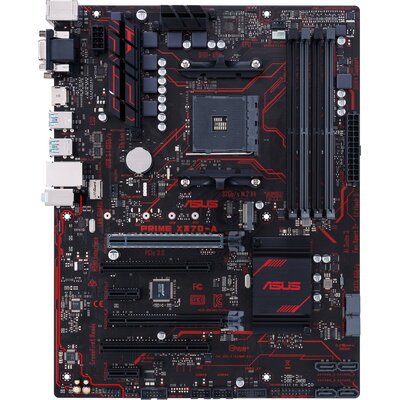

AMD AM4 ATX motherboard with LED lighting, DDR4 3200MHz , 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.1 Gen 2
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for both PCIe slot and audio trace paths
- Native M.2: Lightning-fast storage speeds
- Onboard USB 3.1 Gen 2: Latest connectivity for ultrafast 10Gbps transfers
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
Спецификация
| Сокет: |
AMD AM4 |
| Чипсет: |
AMD X370 |
| Процесори: |
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors |
| Поддържана памет: |
4 x DIMM, Max. 64GB, DDR4 3200 (O.C.)
Dual Channel Memory Architecture
ECC Memory (ECC model) support varies by CPU |
| Аудио: |
Realtek® ALC887-VD2 HD Audio Codec |
| Мрежова връзка: |
Realtek® RTL8111H Gigabit LAN |
| Слотове за периферия: |
1 x PCI Express 3.0 x16
1 x PCI Express 2.0 x16
2 x PCI Express 2.0 x1
2 x PCI |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |

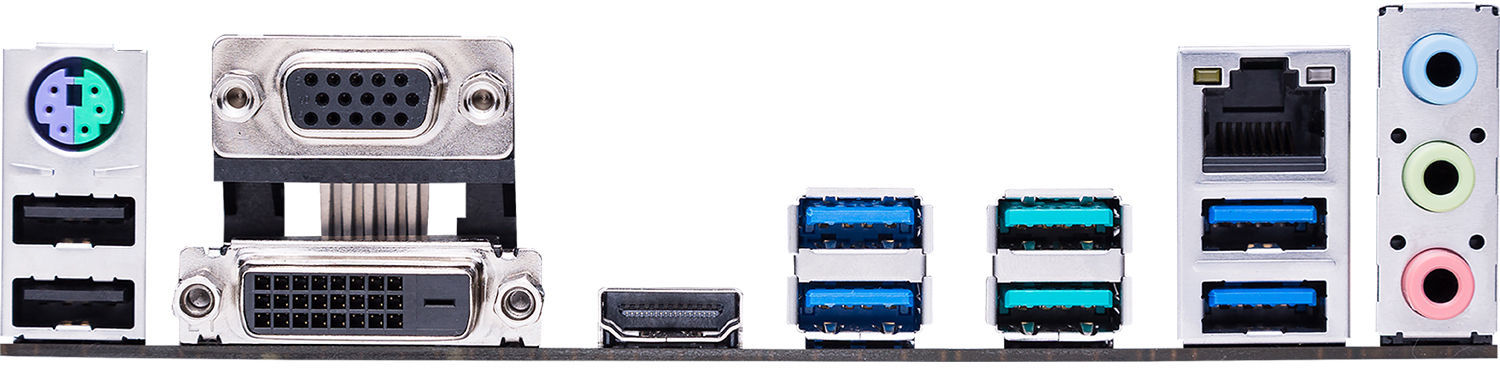

| Изходи на задния панел: |
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1 ,
2 x USB 2.0
3 x Audio jack(s) |
| Форм фактор / Размери: |
ATX |

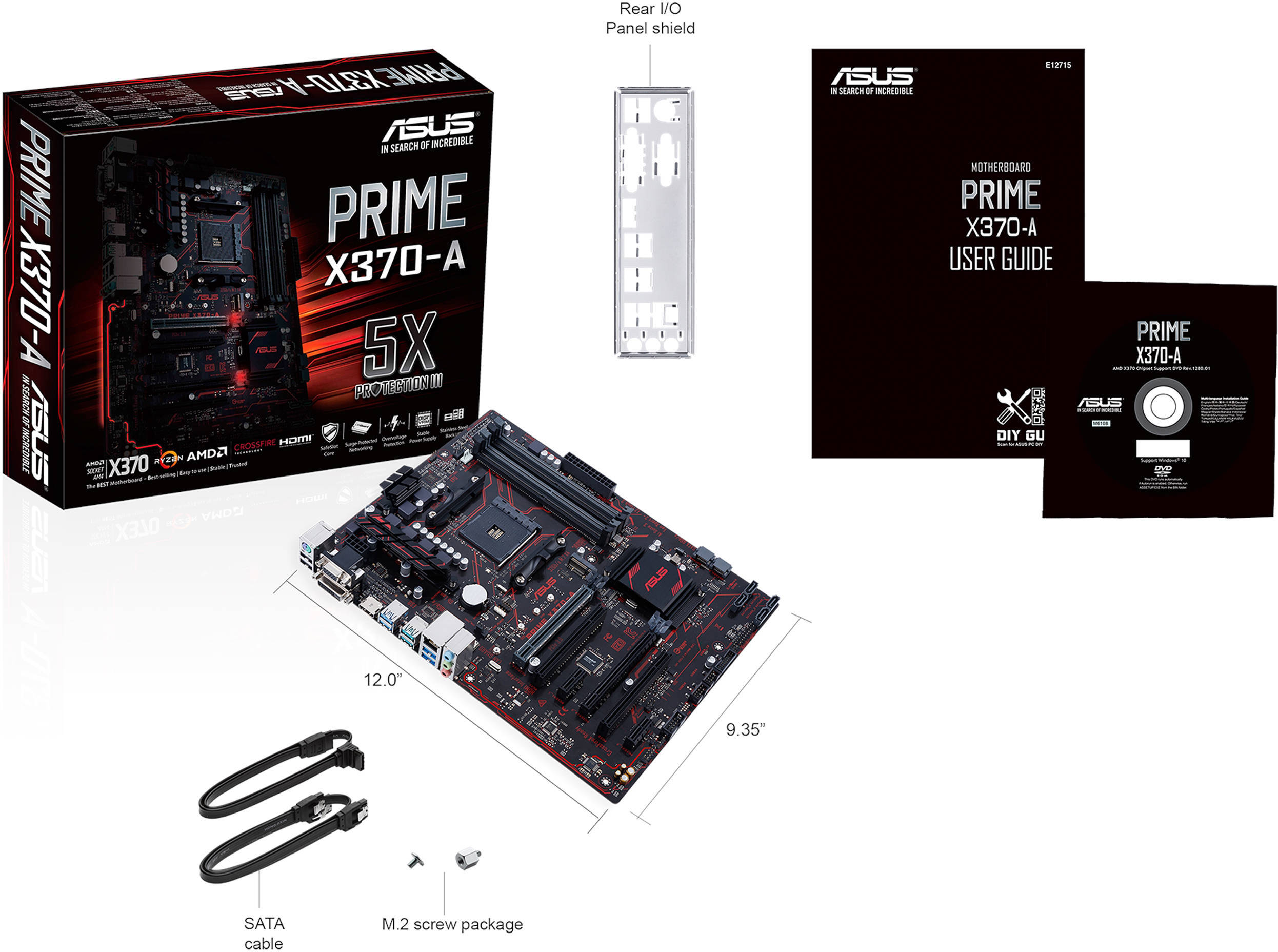

| Комплекта включва: |
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package |
| EAN: |
4712900738223 |
| Производител: |
ASUS |
Тагове: Дънни платки ASUS, AMD AM4, ATX
