Описание

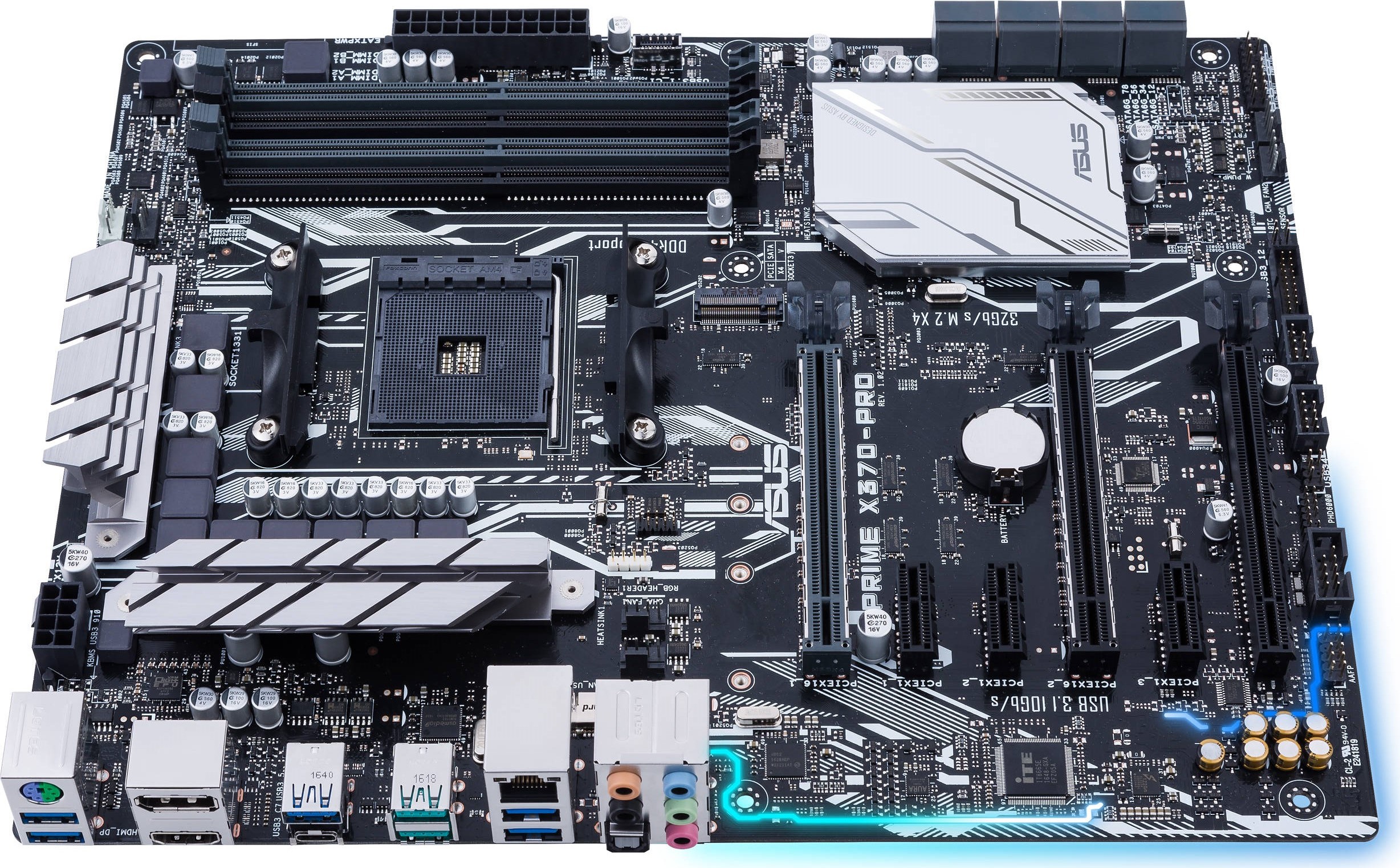

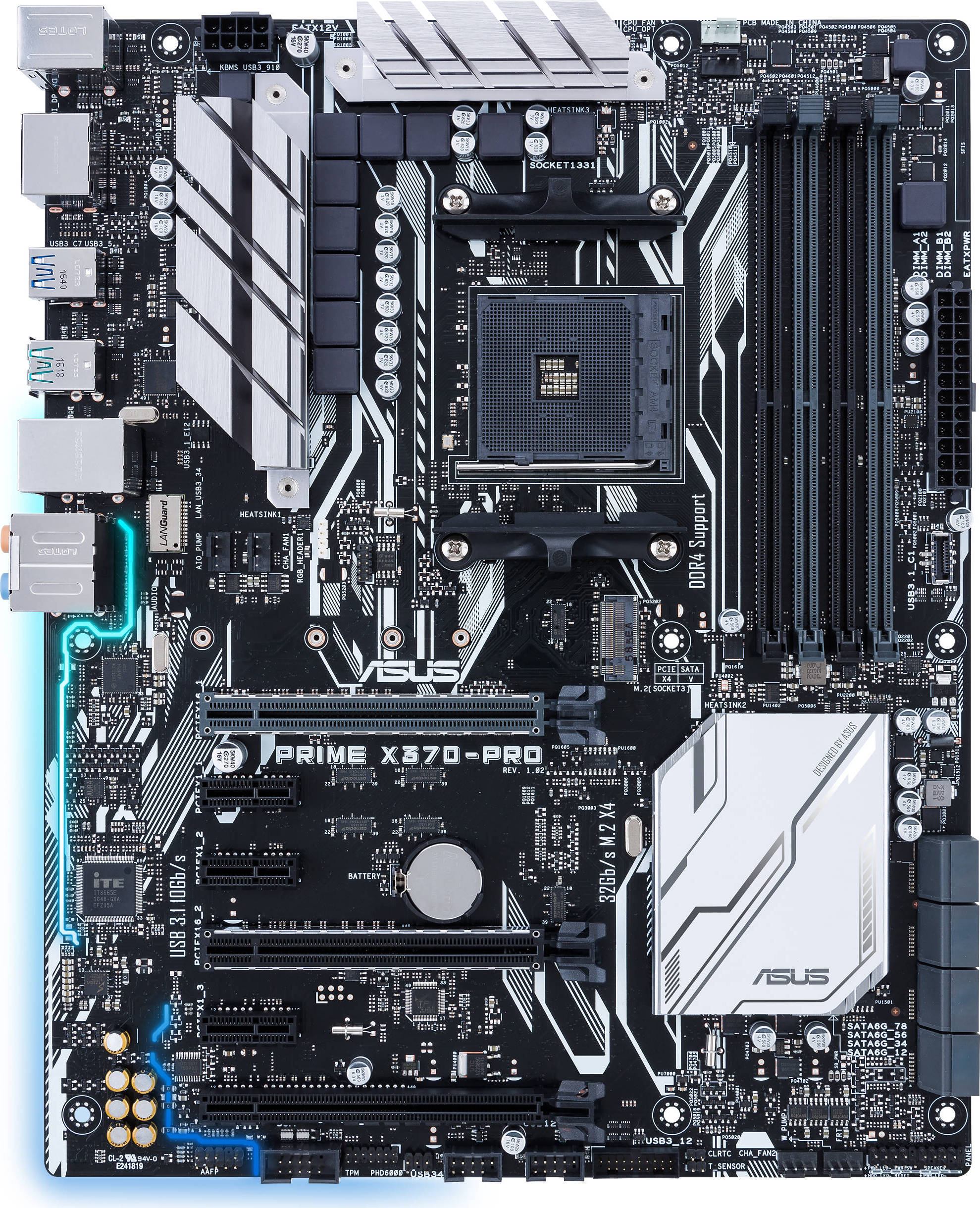

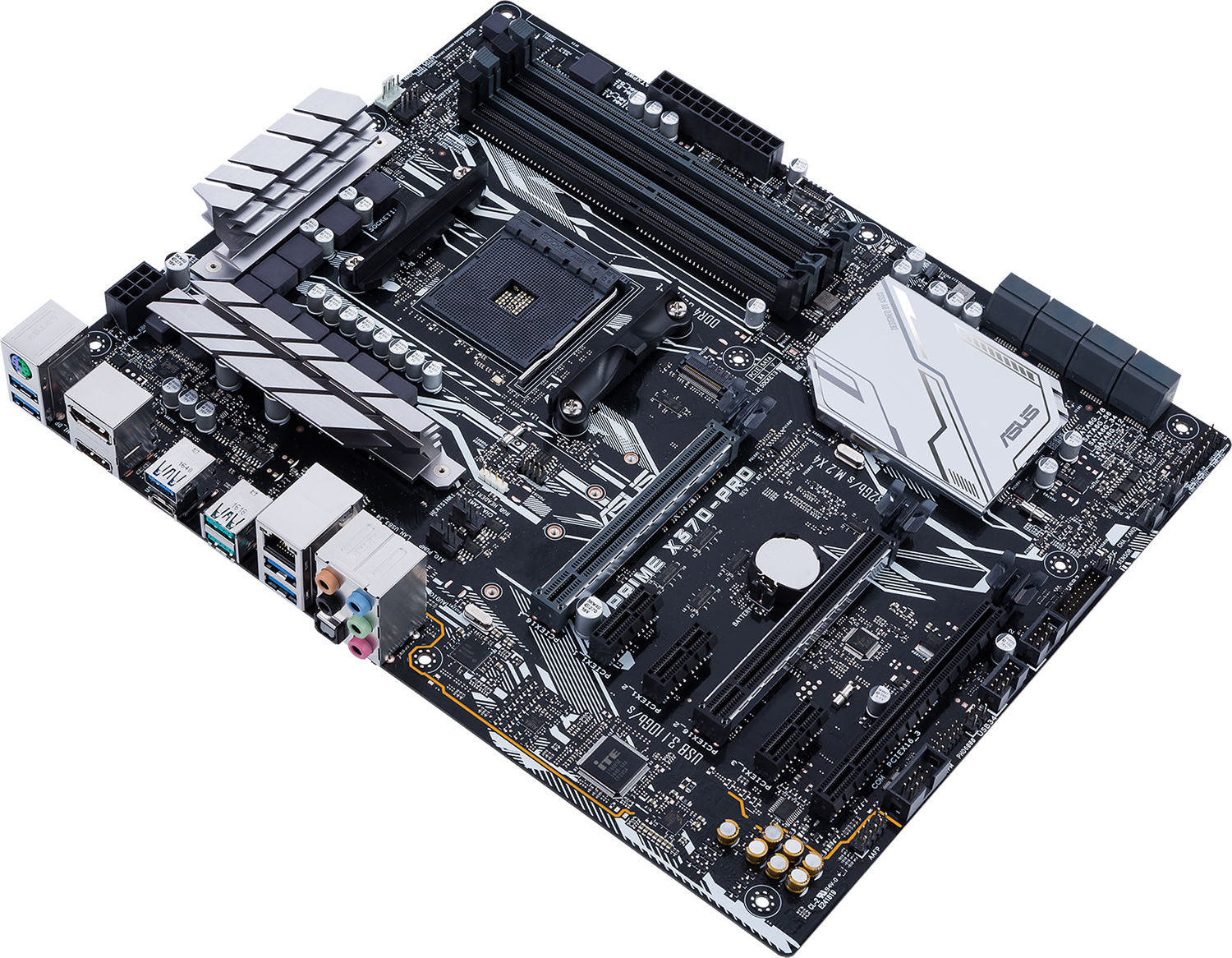

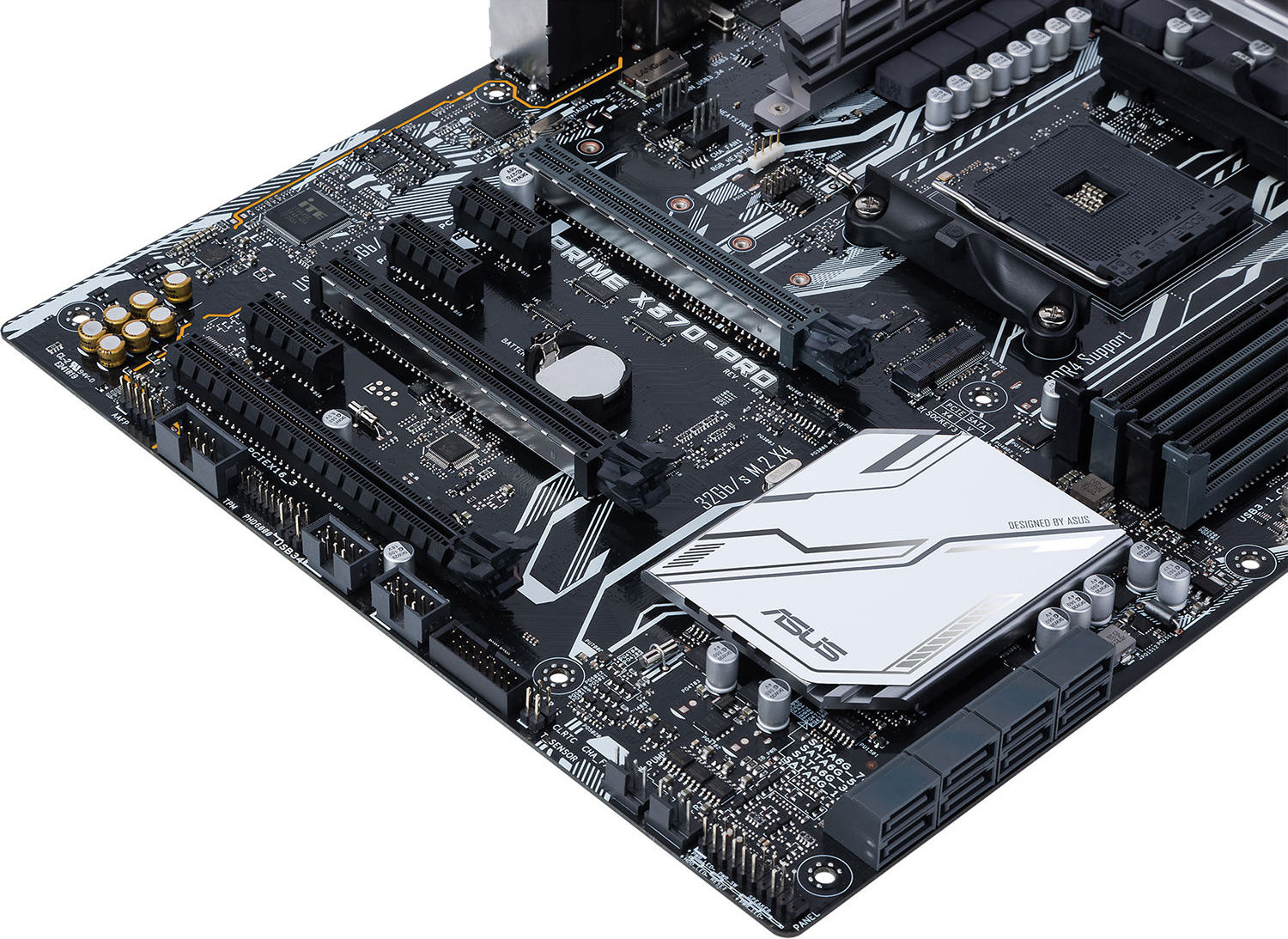

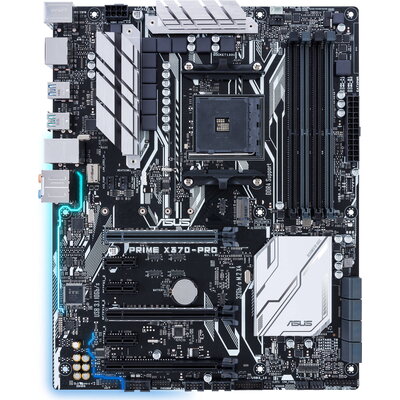

AMD AM4 ATX motherboard with Aura Sync, DDR4 3200MHz, 32Gb/s M.2, DP/HDMI, SATA 6Gb/s, USB 3.1.
- 5-Way Optimization: One-click system-wide tuning that now also senses GPU temperatures to ensure cooler gaming
- ASUS Aura Sync – World’s first synced RGB lighting with easy controls to orchestrate Aura Sync-capable hardware
- Refined Audio: Realtek ALC1220 codec provides pristine and powerful audio quality
- ASUS SafeSlot: Patent-pending PCIe with enhanced retention and shearing resistance
- 5X Protection III: Multiple hardware safeguards to protect components from damage by power or electrical surges
Спецификация
| Сокет: |
AMD AM4 |
| Чипсет: |
AMD X370 |
| Процесори: |
AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports AM4 Socket 14 nm CPU
Supports CPU up to 8 cores |
| Поддържана памет: |
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Dual Channel Memory Architecture |
| Аудио: |
Realtek ALC S1220A HD Audio Codec |
| Мрежова връзка: |
Intel® I211-AT Gigabit LAN |
| Слотове за периферия: |
2 x PCI Express 3.0 x16
1 x PCIe 2.0 x16
3 x PCIe 2.0 x1 |
| Интерфейс за данни: |
8 x SATA3 6.0 Gb/s
1 x M.2 Socket (NGFF) |

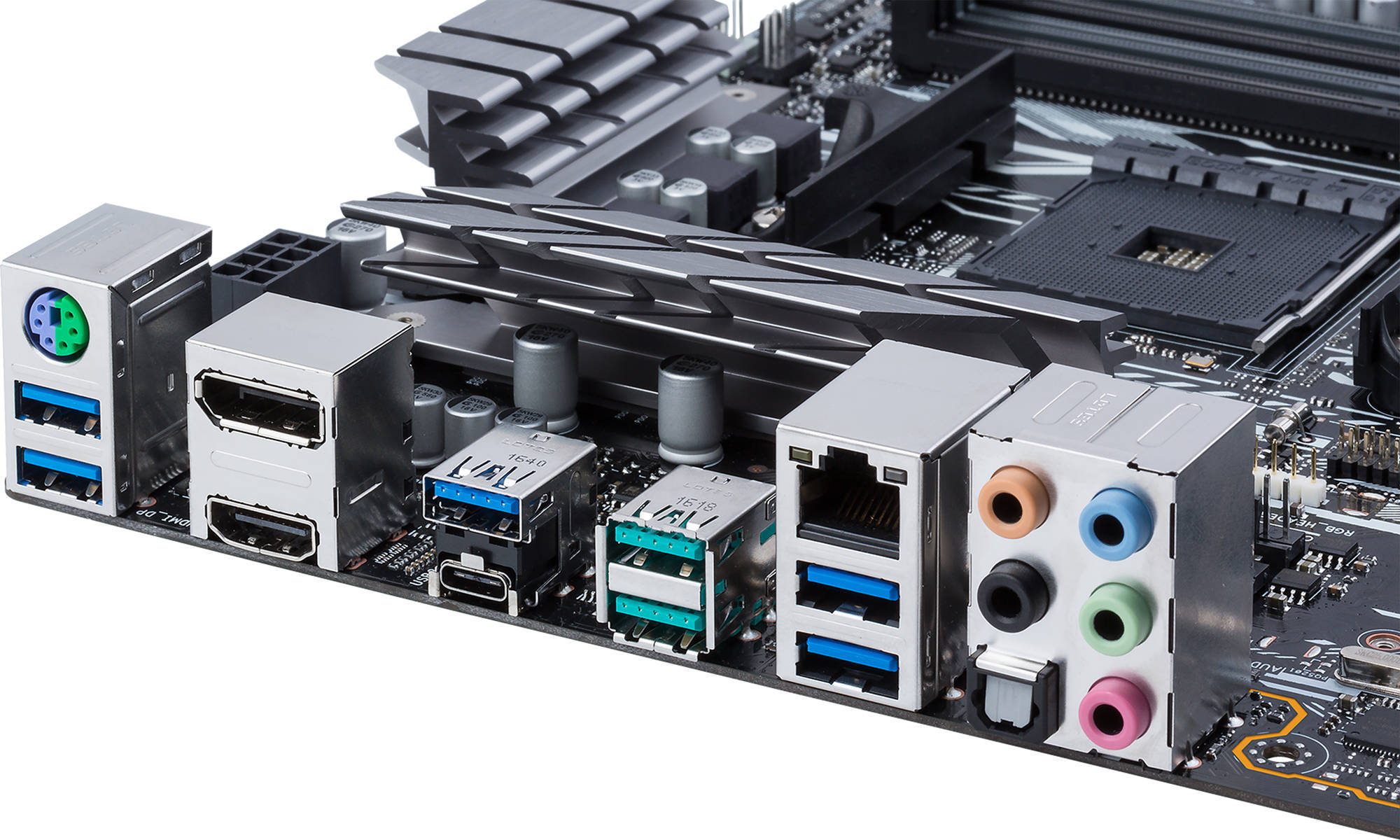

| Изходи на задния панел: |
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A
1 x USB 3.1 Gen 1 USB Type-C
5 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s) |
| Форм фактор / Размери: |
ATX |
| MPN: |
PRIME X370-PRO |
| Производител: |
ASUS |
Тагове: Дънни платки ASUS, AMD AM4, ATX
