(Код: 20520)
Описание

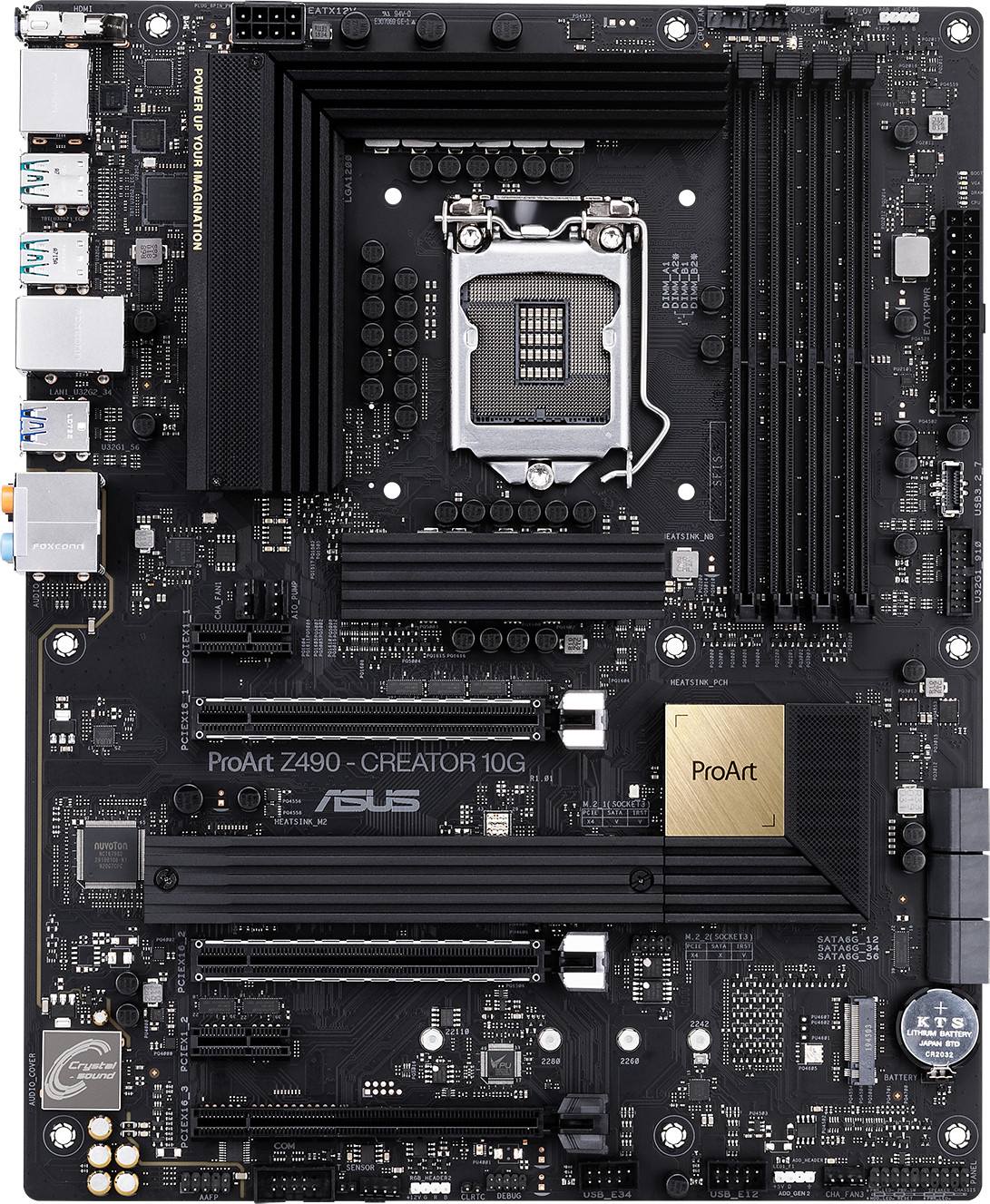

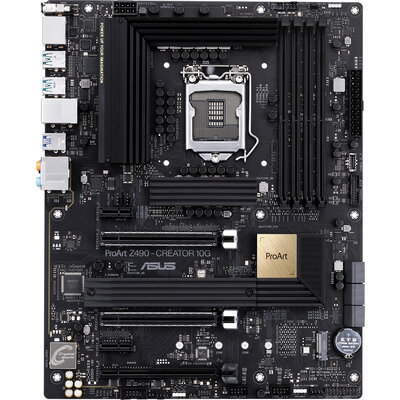

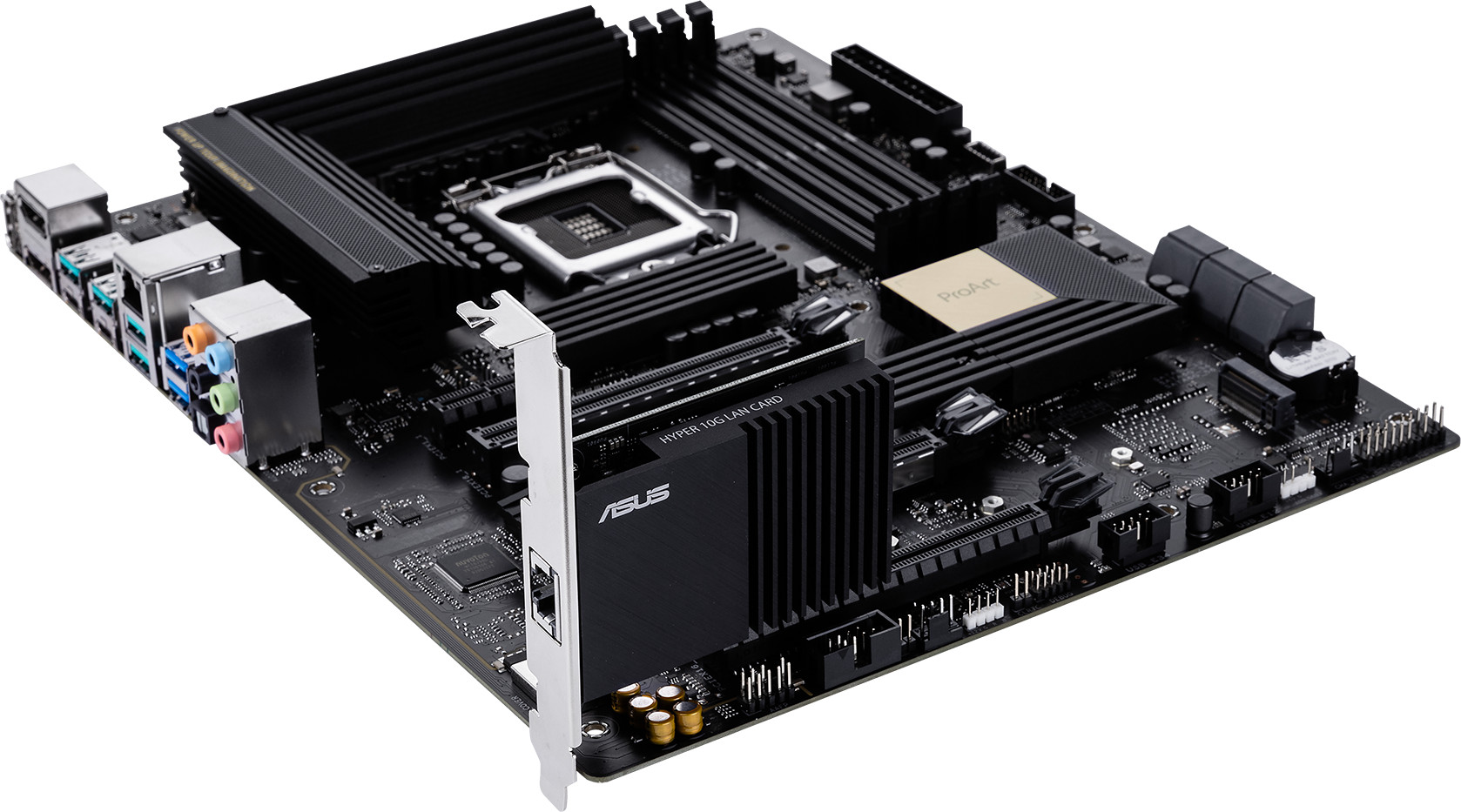

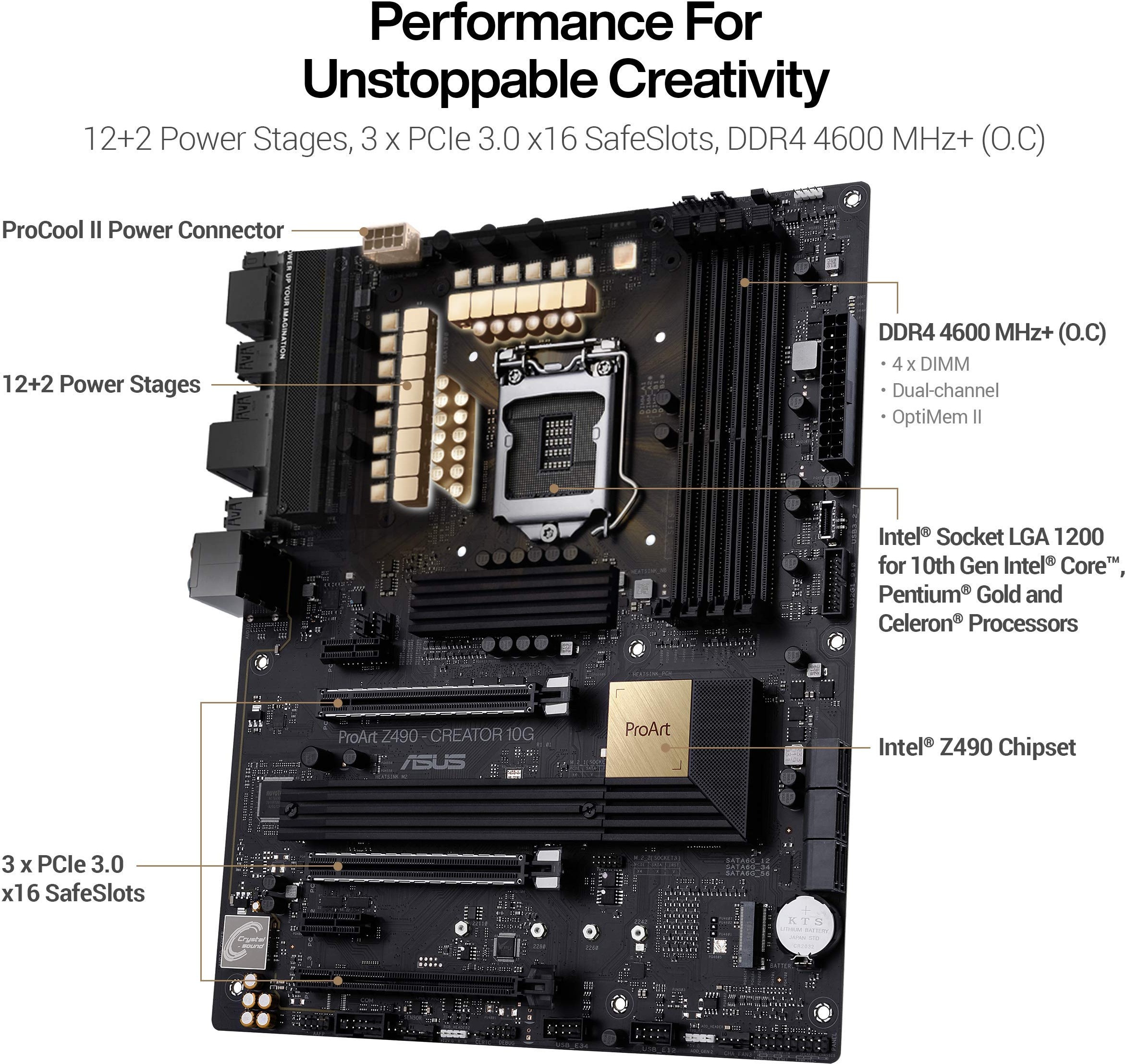

Intel® Z490 LGA 1200 ATX motherboard for content creators features a 10G LAN card, onboard 2.5G Intel LAN, dual Thunderbolt™ 3 Type-C ports, dual M.2, USB 3.2 Gen 2 ports, SATA 6 Gbps
Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

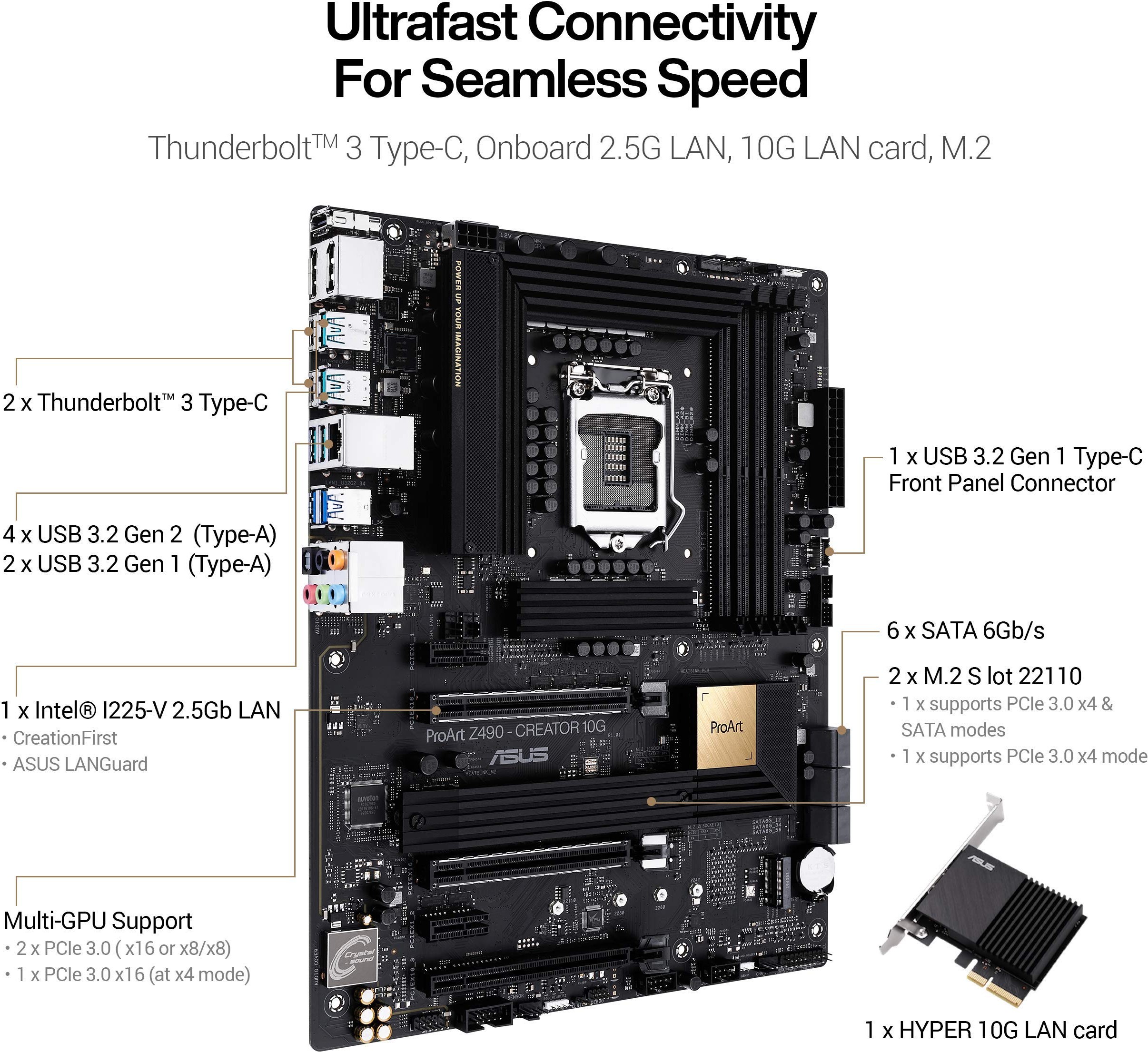

Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed

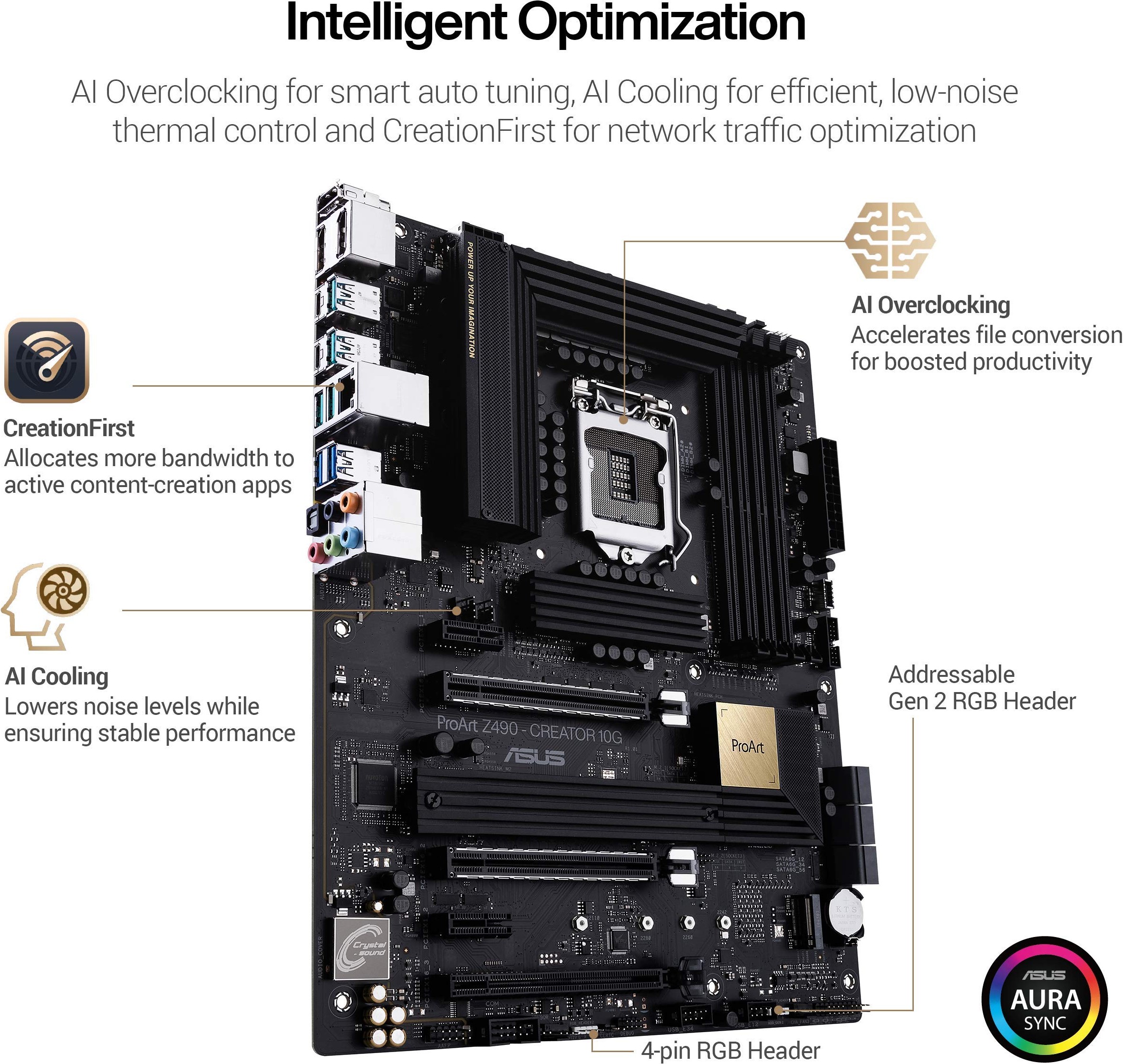

Intelligent optimization: AI Overclocking, AI Cooling and CreationFirst automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency
Powerful performance: 12+2 DrMOS power stages, multi-GPU support and improved memory frequency and stability empower creativity
Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability
ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows
Спецификация
Сокет:
Intel LGA 1200
Чипсет:
Intel Z490
Процесори:
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Integrated Graphics Processor
1 x DisplayPort 1.4; Support max. resolution of 4096 x 2304 @60Hz
1 x HDMI 1.4b
2 x Intel® Thunderbolt™ 3 ports (TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4 / with max. resolution 7680/ x 3840/@ 60 Hz
Data transfer rate up to 40 Gbps. Daisy-chain up to 12 Thunderbolt devices. Up to 5V/3A, 15W charging support.
Слотове за периферия:
3 x PCIe 3.0 x16
2 x PCIe 3.0 x1
* Supports AMD 3-Way CrossFireX™ Technology

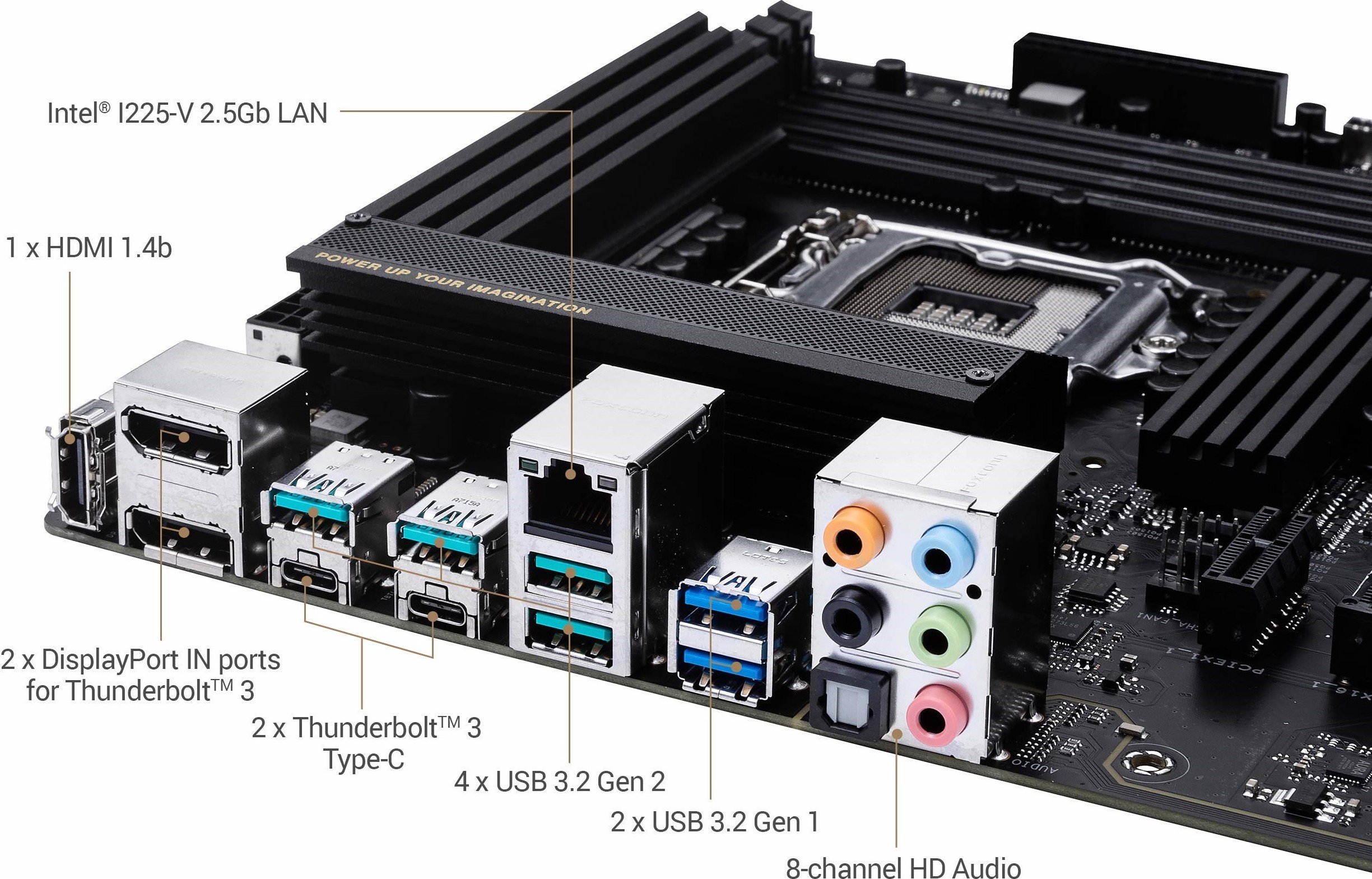

Интерфейс за данни:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
Вътрешни I/O конектори:
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x COM port header
Операционна система:
Microsoft® Windows® 10 64-bit
Форм фактор / Размери:
ATX / 12 x 9.2 inch ( 30.5 x 23.4 cm )

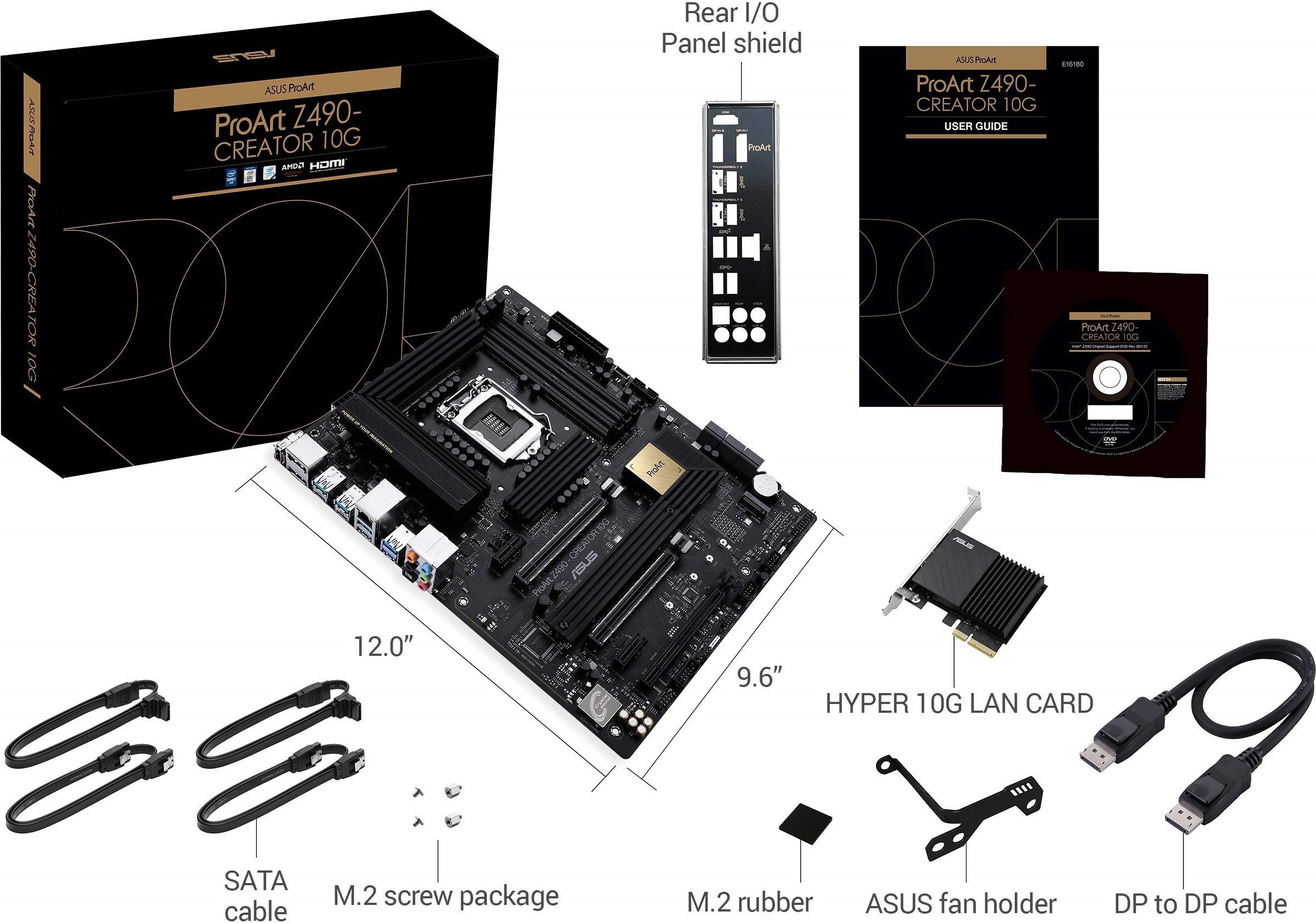

Комплекта включва:
I/O Shield, User manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x DisplayPort cable
1 x CPU Fan Holder
1 x 2-in-1 Rubber pad

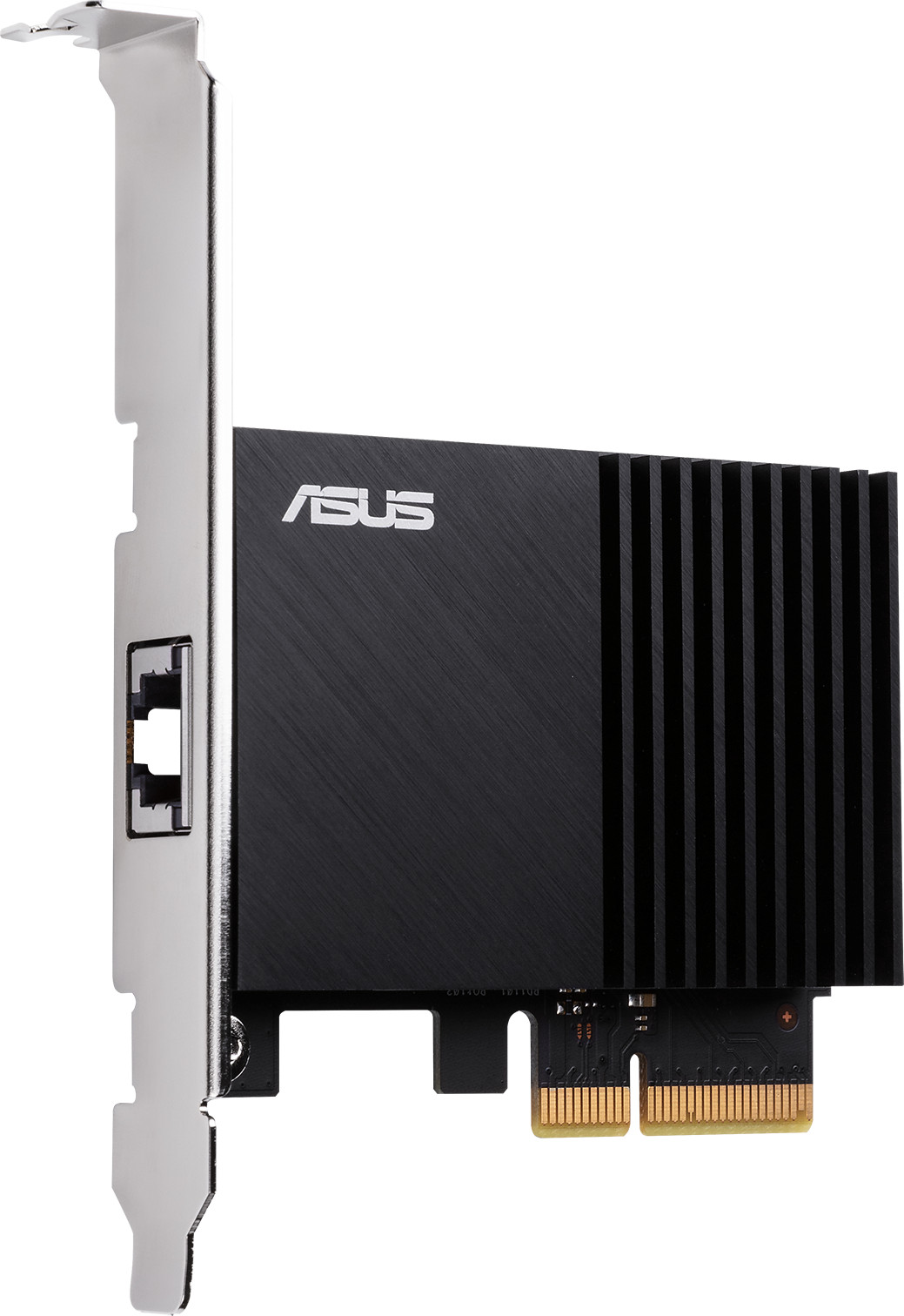

1 x HYPER 10G LAN CARD
