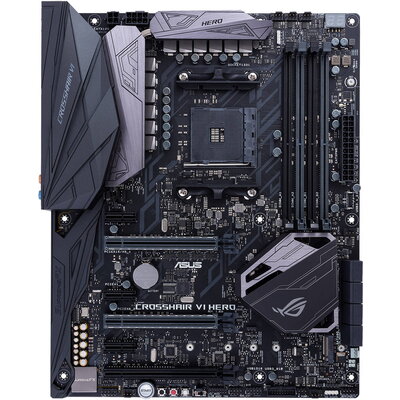

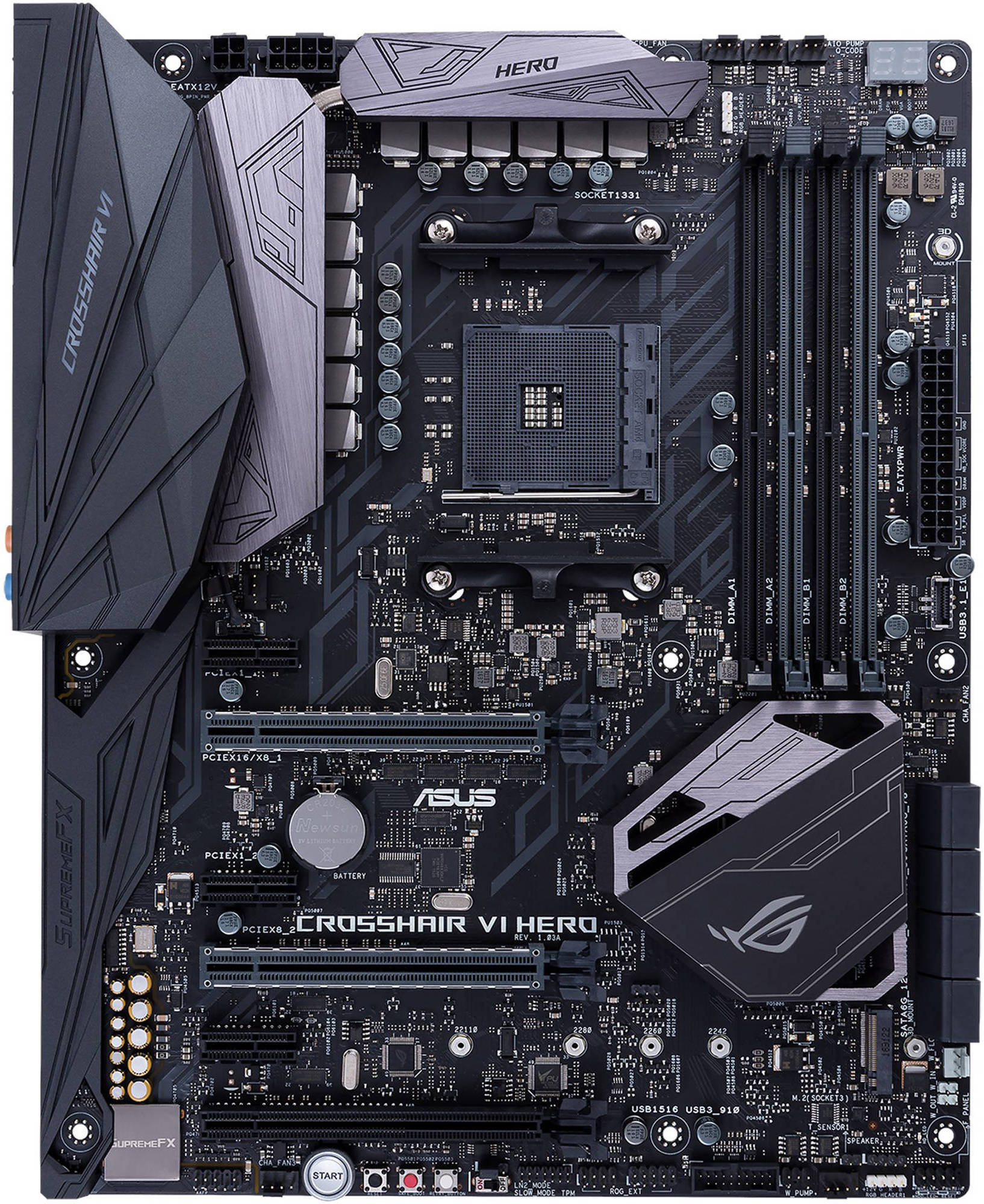

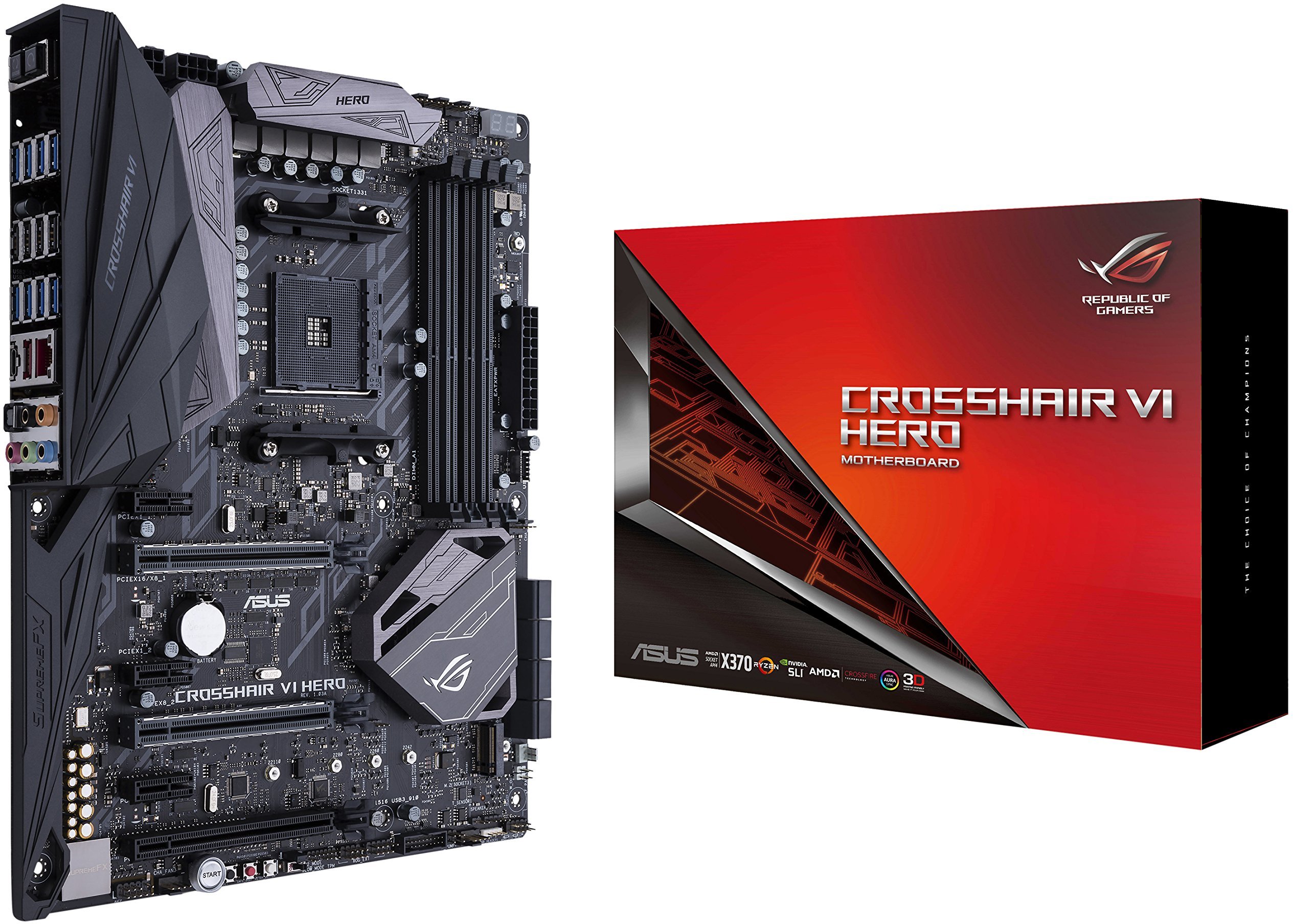

Дънна платка ASUS ROG CROSSHAIR VI HERO
Тагове: Дънни платки ASUS, AMD AM4, ATX
Продуктът е изчерпан и не може да бъде поръчан!
(Код: 4392)
Описание

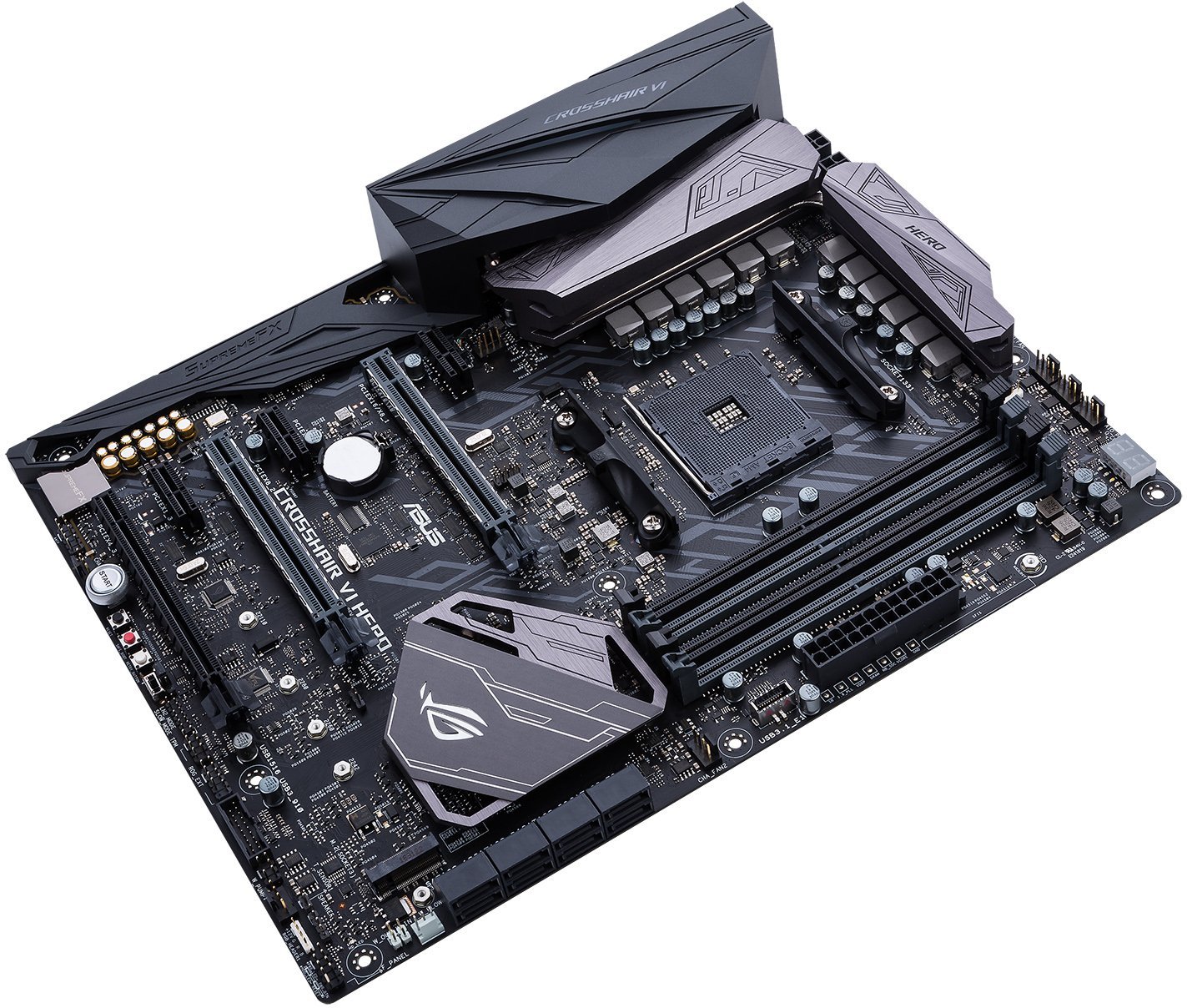

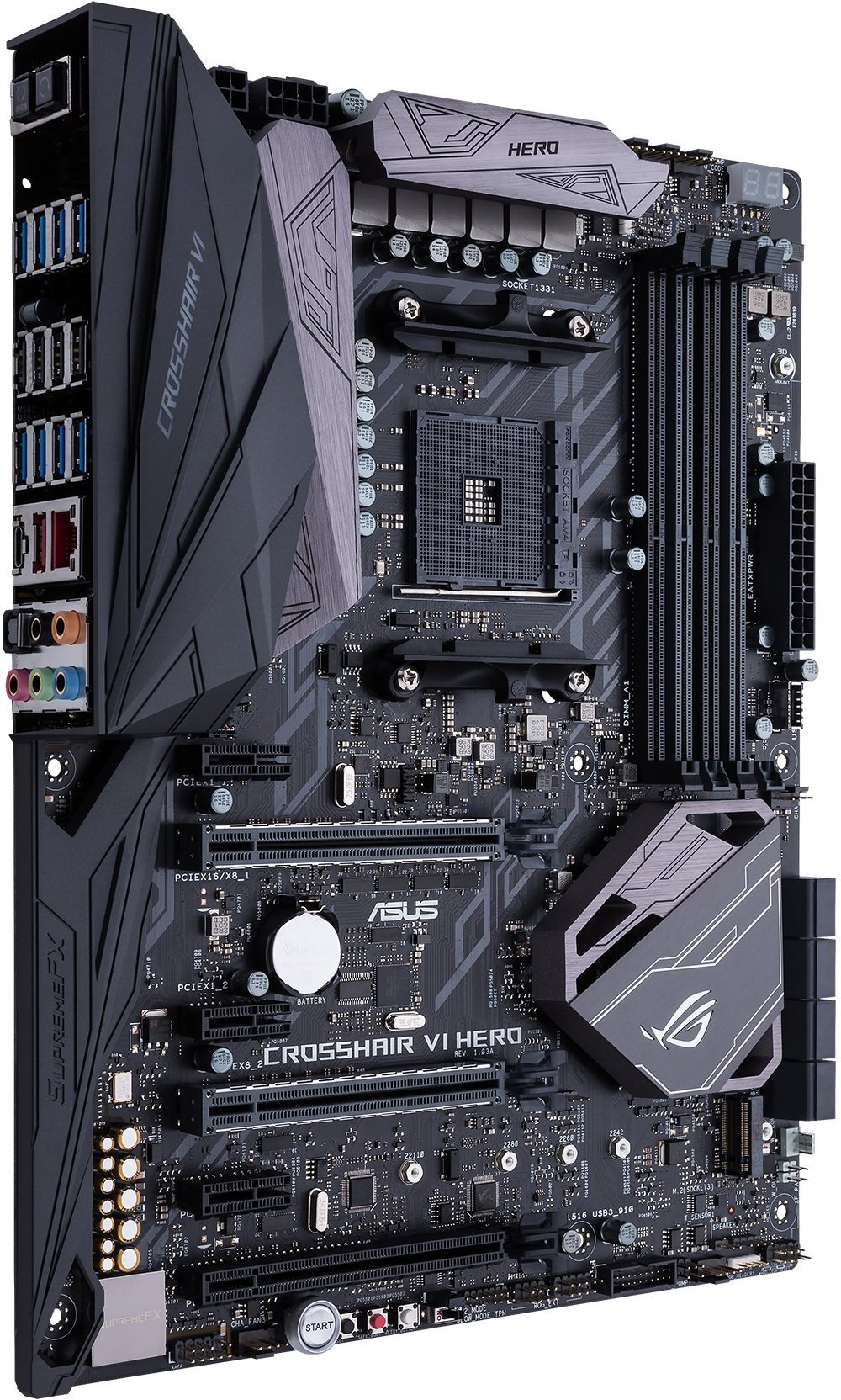

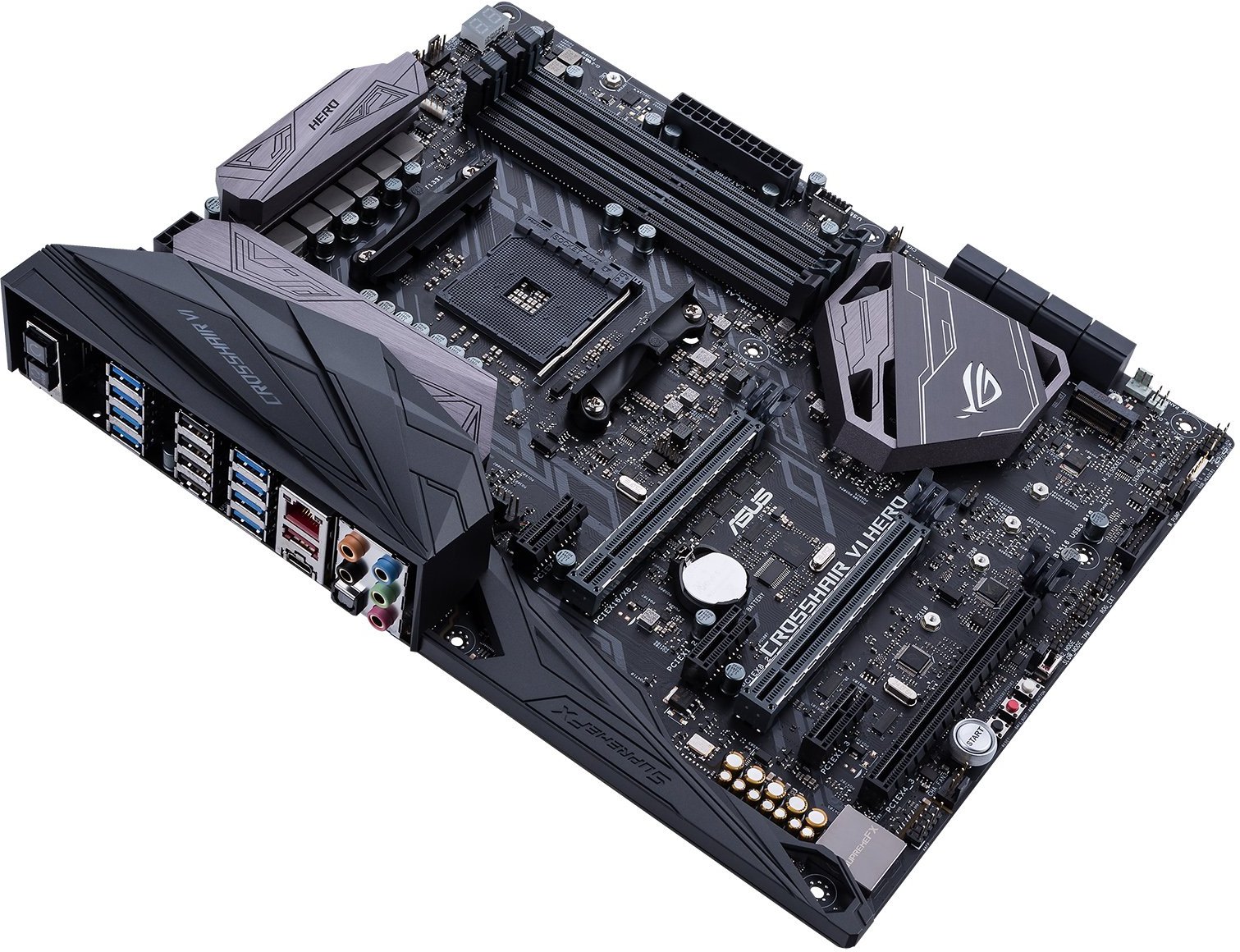

AMD X370 ATX Gaming motherboard with Aura Sync RGB LEDs, DDR4 3200MHz, M.2, USB 3.1 front-panel connector and type-A/C
- Aura Sync RGB LED: Stunning synchronized effects and two Aura 4-pin RGB-strip headers
- SupremeFX: Exclusive new codec plus intuitive Sonic Studio III and Sonic Radar III
- Compatible with both AM3/AM4 coolers
- ROG Water Cooling Zone : Dominate your cooling system
- 5-Way Optimization: One-click system-wide overclocking.
- Best gaming networking: Intel® Gigabit Ethernet, LANGuard and GameFirst technologies

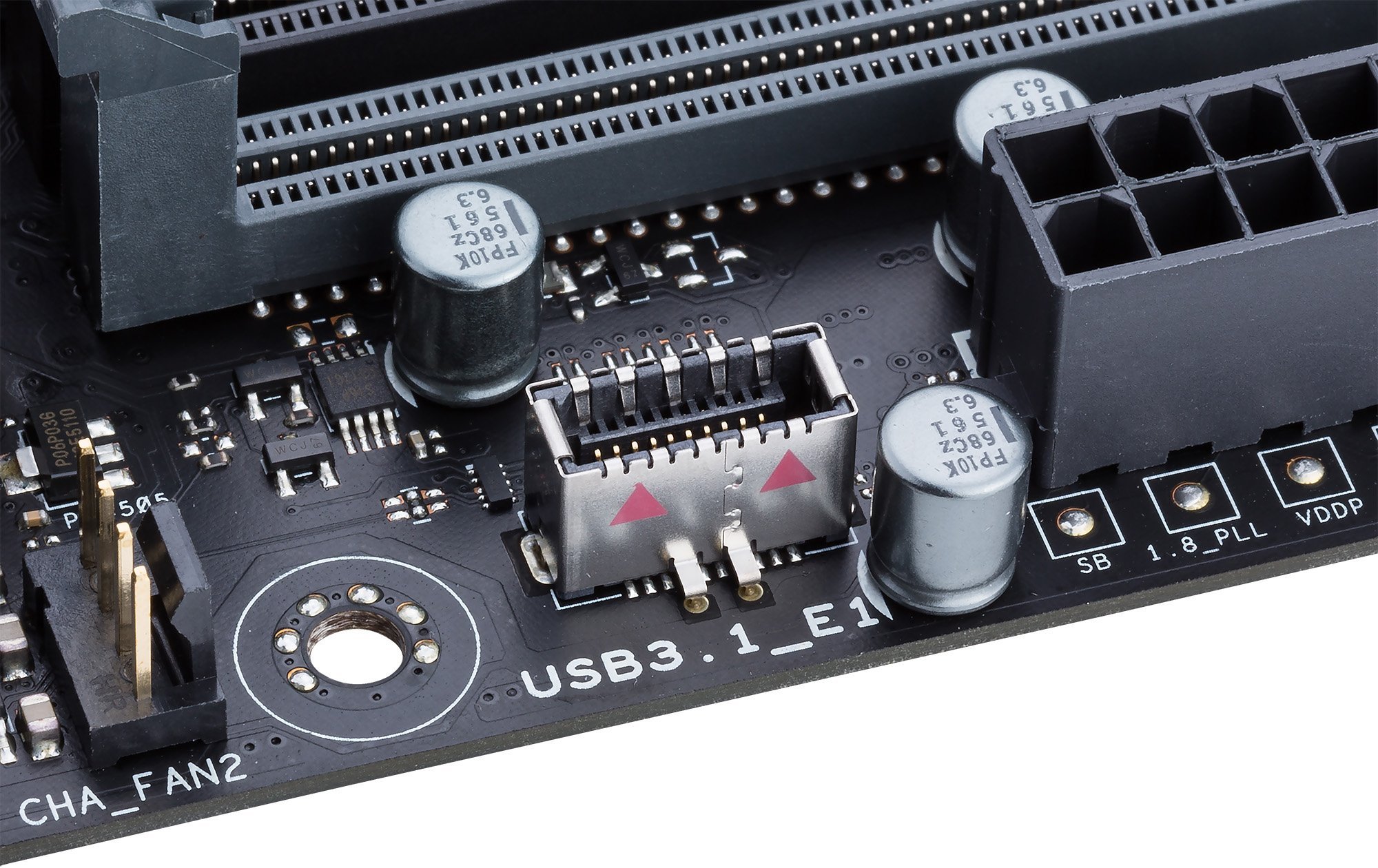

- Best gaming connectivity: M.2, USB 3.1 front-panel connector and both USB 3.1 Type-A/C
- Best gaming durability: Safeslot and premium components for maximum durability
Спецификация
| Сокет: |
AMD AM4 |
| Чипсет: |
AMD X370 |
| Процесори: |
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors |
| Поддържана памет: |
4 x DIMM, Max. 64GB, DDR4 3200 (O.C.)
Dual Channel Memory Architecture
ECC Memory (ECC model) support varies by CPU |
| Аудио: |

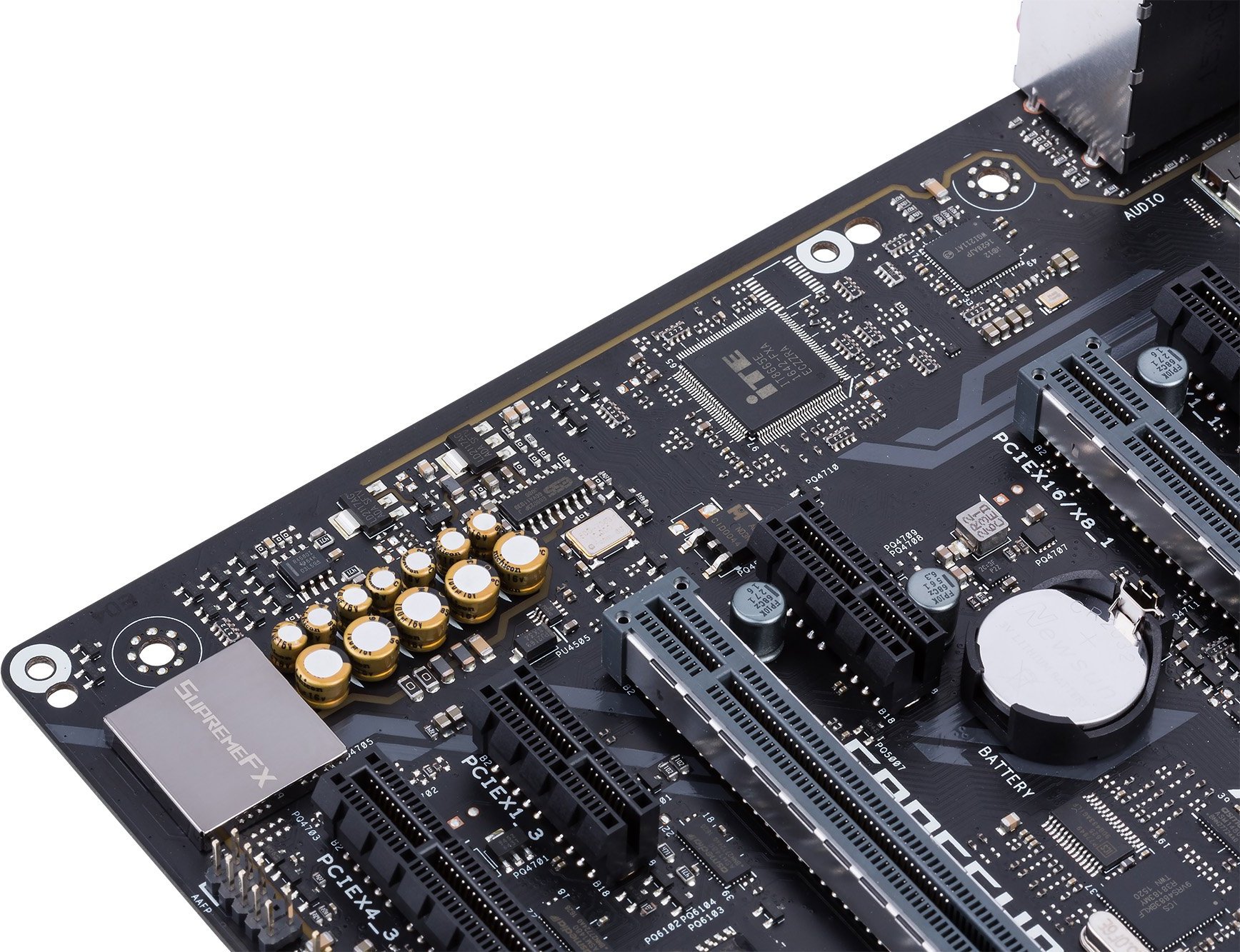

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Мрежова връзка: |
Intel® I211-AT Gigabit LAN |
| Слотове за периферия: |
2 x PCI Express 3.0 x16
1 x PCI Express 2.0 x16
3 x PCI Express 2.0 x1 |
| Интерфейс за данни: |

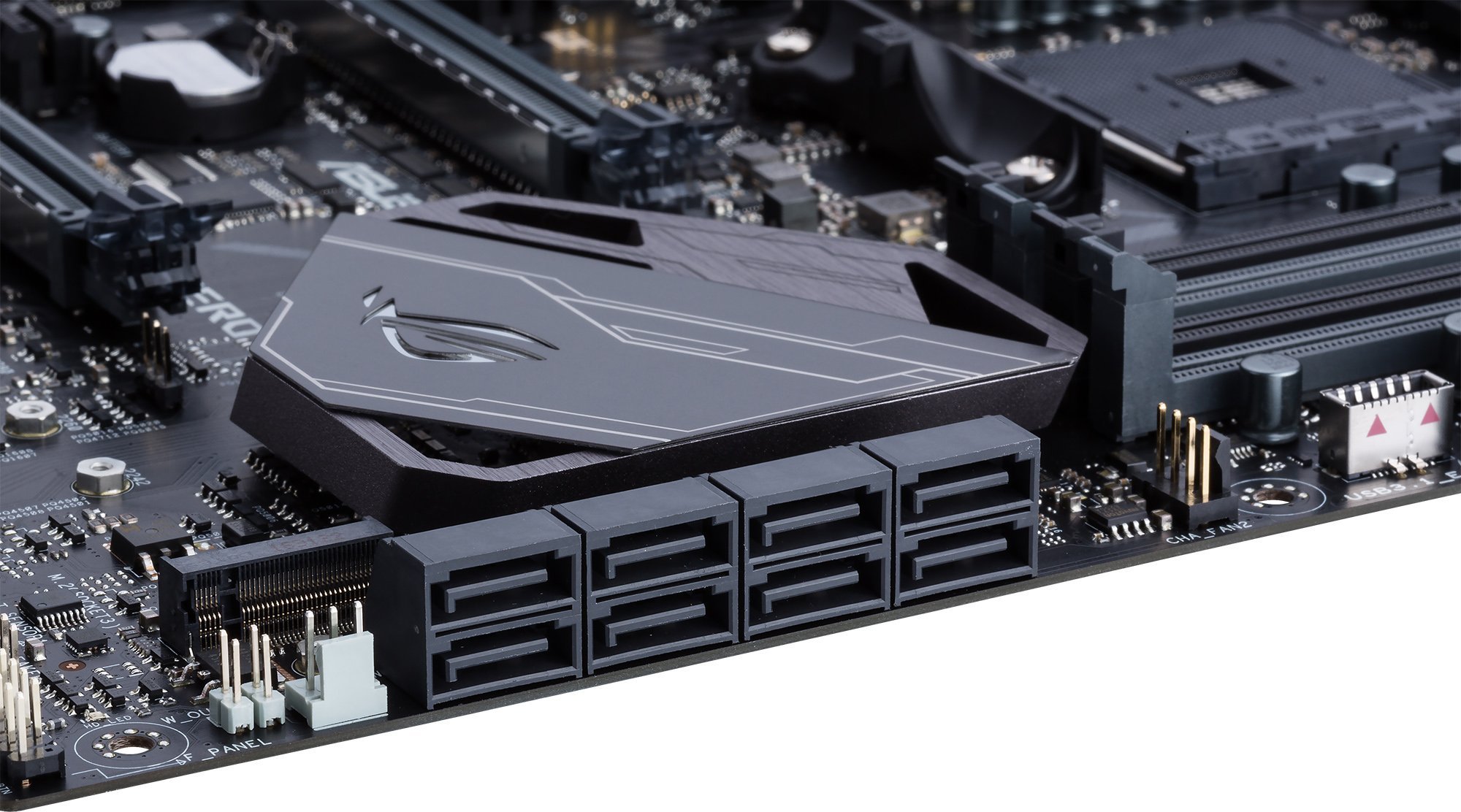

8 x SATA3 6.0 Gb/s
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |

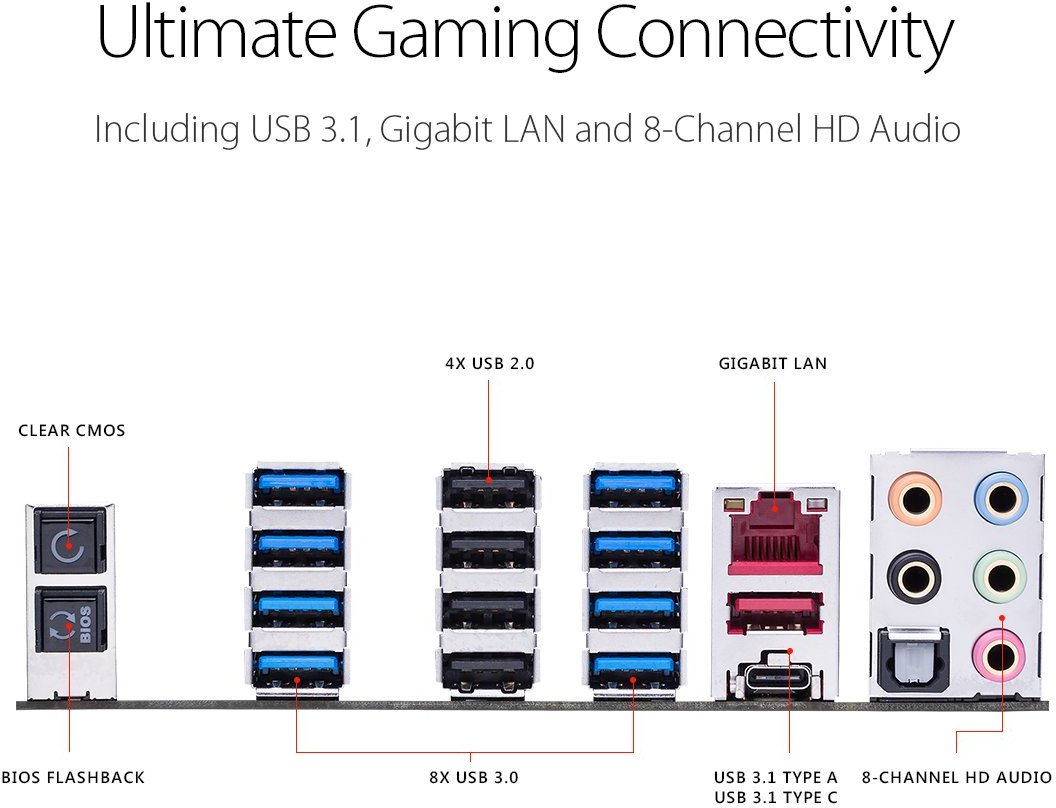

| Изходи на задния панел: |
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)USB Type-C
1 x USB 3.1 Gen 2 (red)Type-A
8 x USB 3.1 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
5 x Gold-plated audio jacks
1 x M.2 Wi-Fi Slot |
| Форм фактор / Размери: |
ATX |
| Комплекта включва: |
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package
1 x ROG coaster(s) |
| MPN: |
90MB0SC0-M0EAY0 |
| Производител: |
ASUS |
