Описание

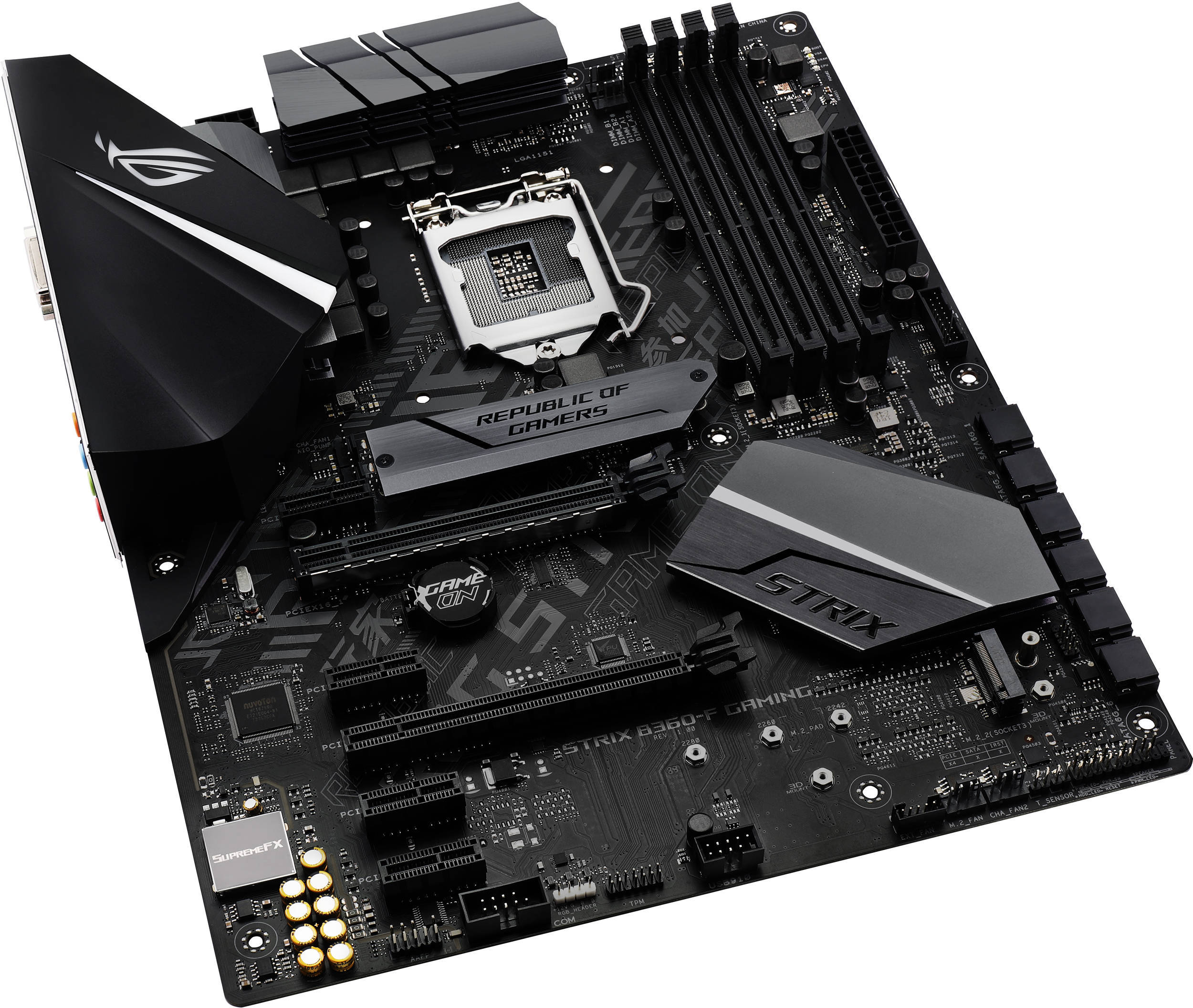

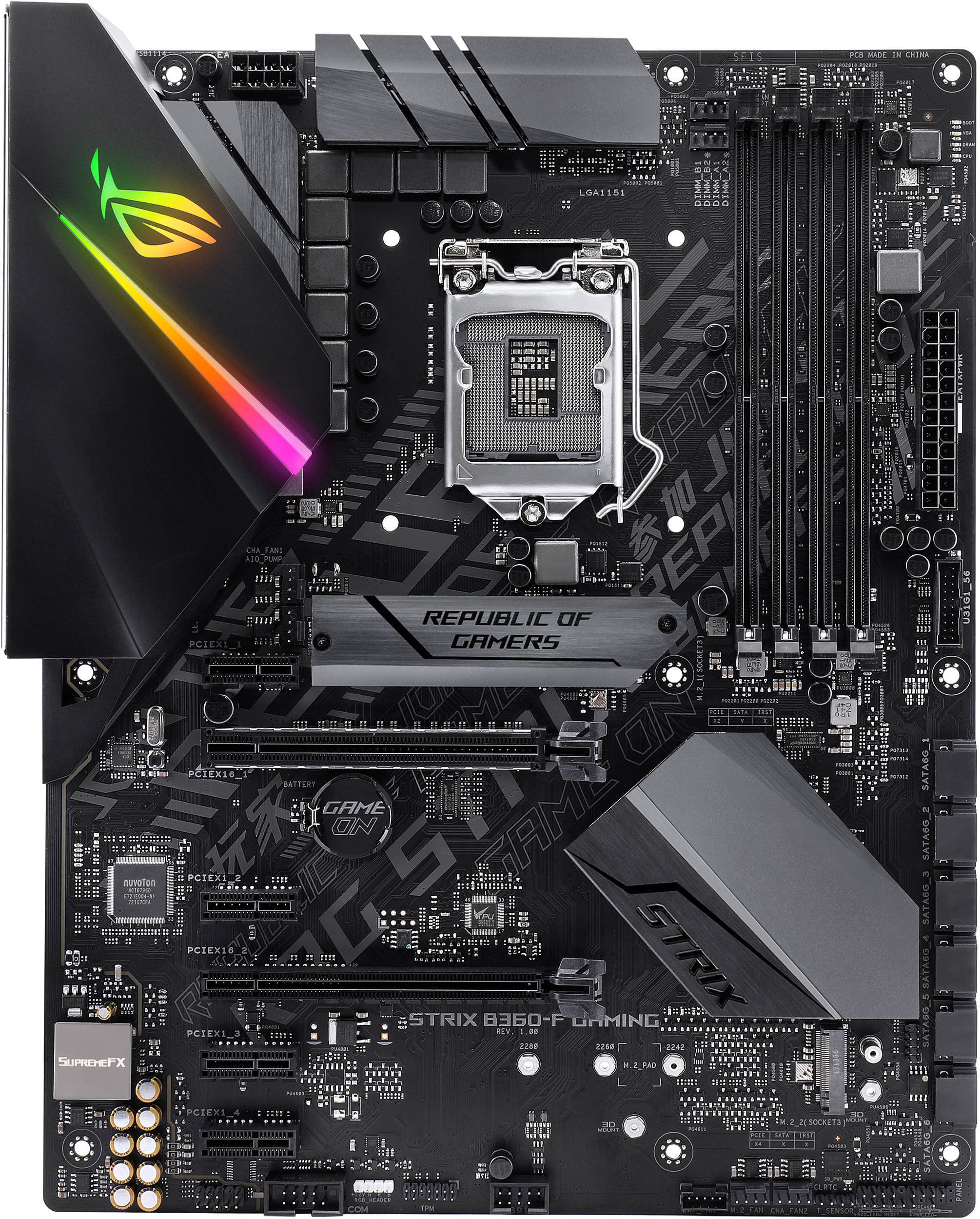

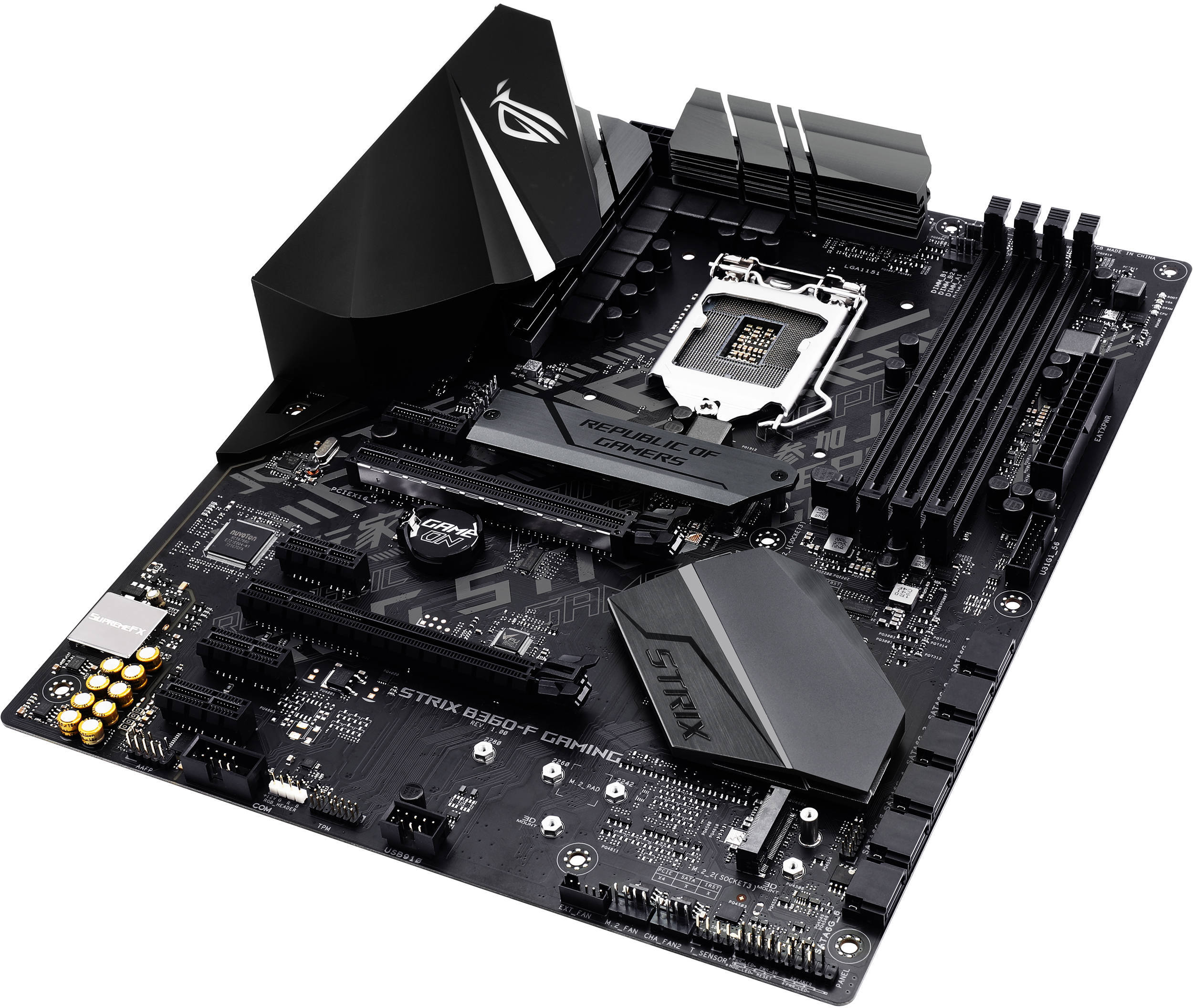

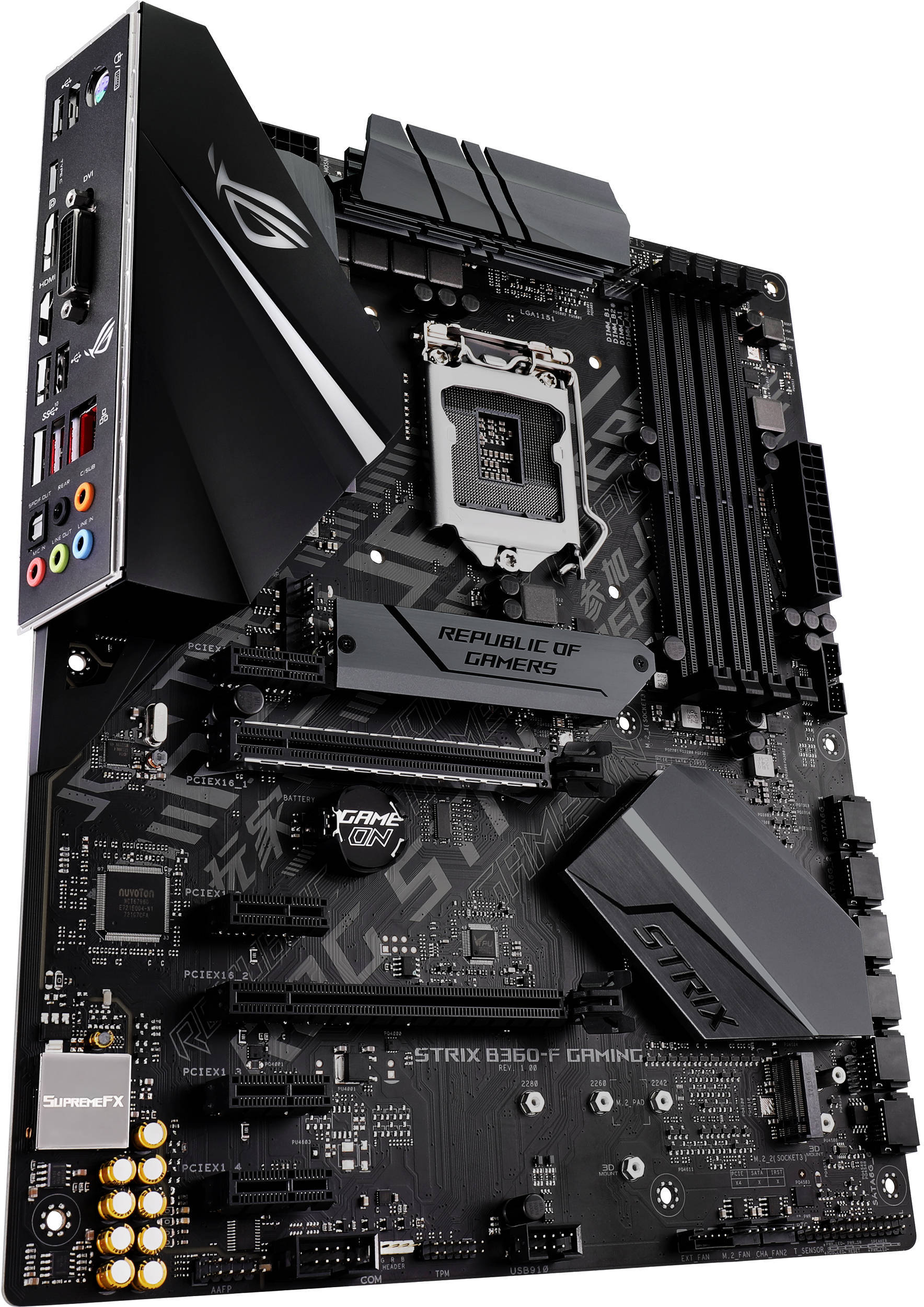

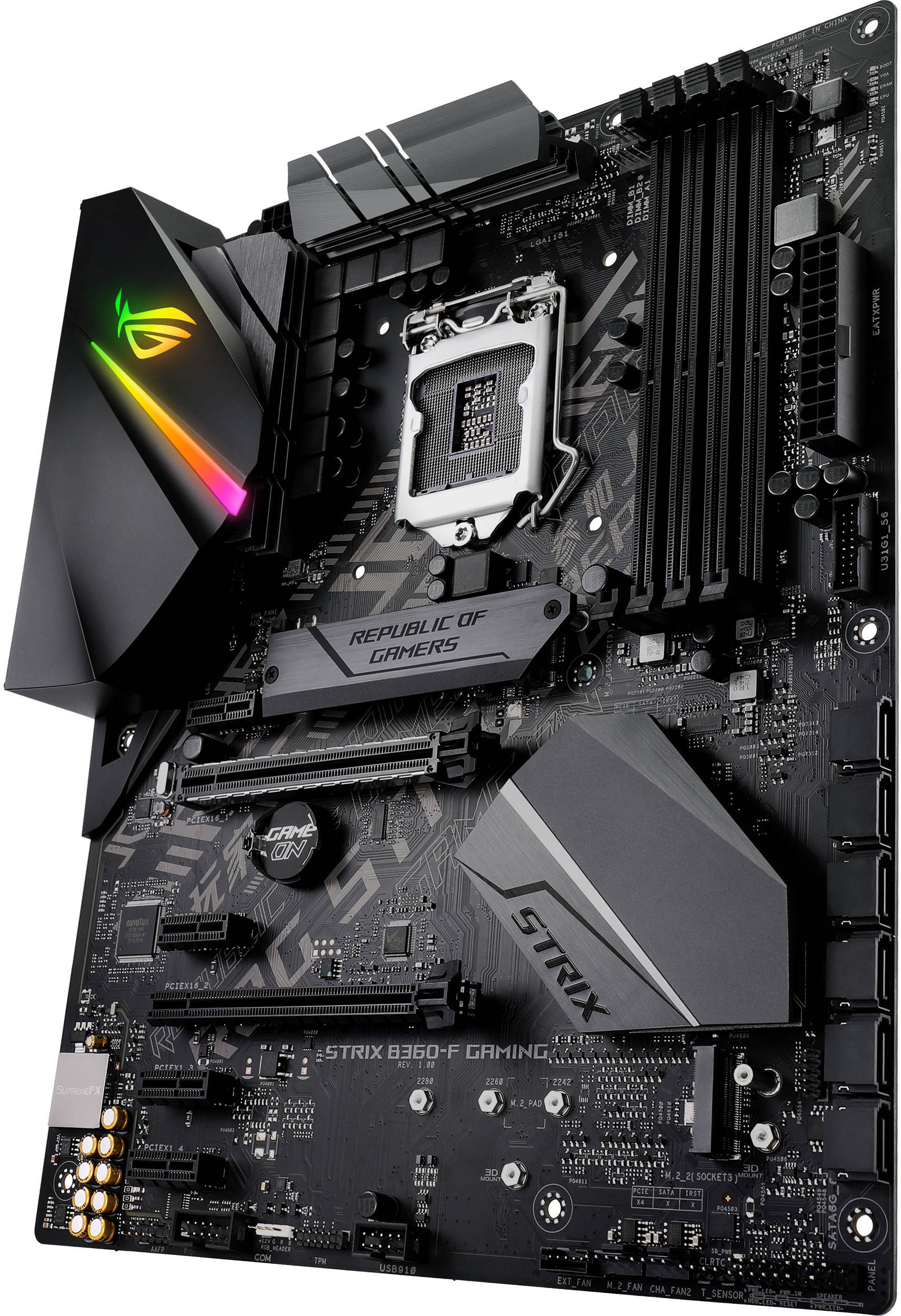

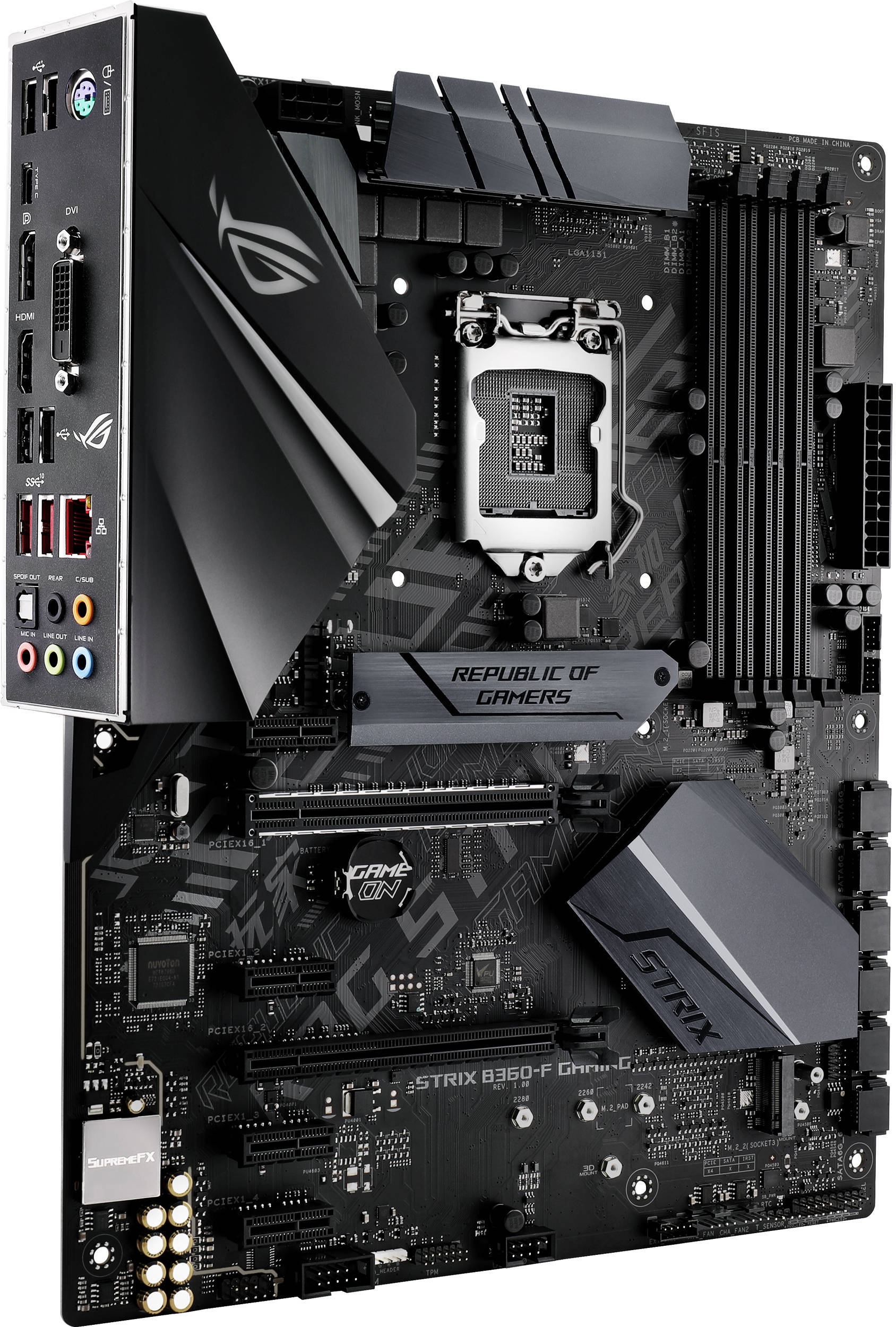

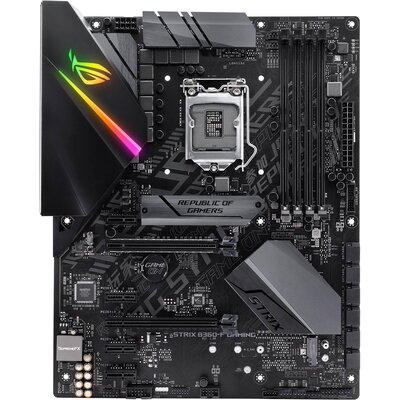

Intel B360 ATX gaming motherboard with Aura Sync RGB LED lighting, pre-mounted I/O shield, dual M.2, onboard M.2 heatsink, SATA 6Gbps and USB 3.1 Gen 2.
- LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
- 3D-printing-friendly design: Dedicated 3D mounts make quick work of fitting 3D-printed parts.
- Onboard M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.
- Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play.
Спецификация
| Сокет: |
Intel LGA 1151 |
| Чипсет: |
Intel B360 |
| Процесори: |
Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 |
| Поддържана памет: |
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) |
| Аудио: |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A |
| Мрежова връзка: |
Intel® I219V Gigabit LAN |
| Слотове за периферия: |
2 x PCIe 3.0/2.0 x16 (x16 mode)
4 x PCIe 3.0/2.0 x1 |
| Интерфейс за данни: |
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA3 6.0 Gb/s
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready |

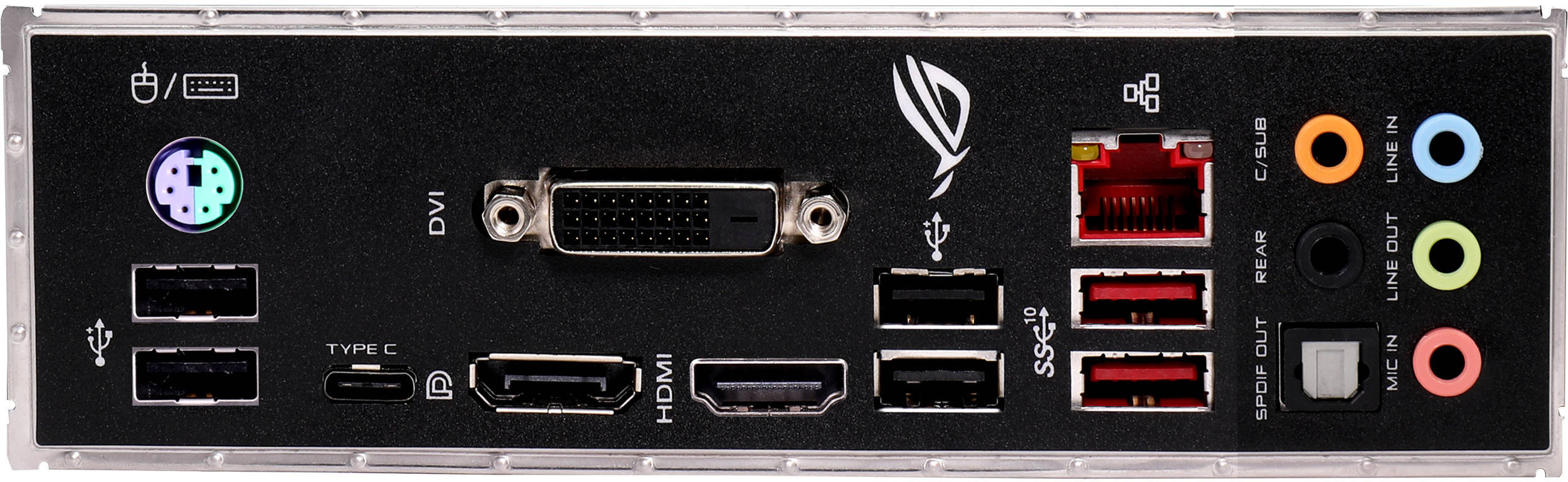

| Изходи на задния панел: |
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)USB Type-C
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s) |
| Форм фактор / Размери: |
ATX |

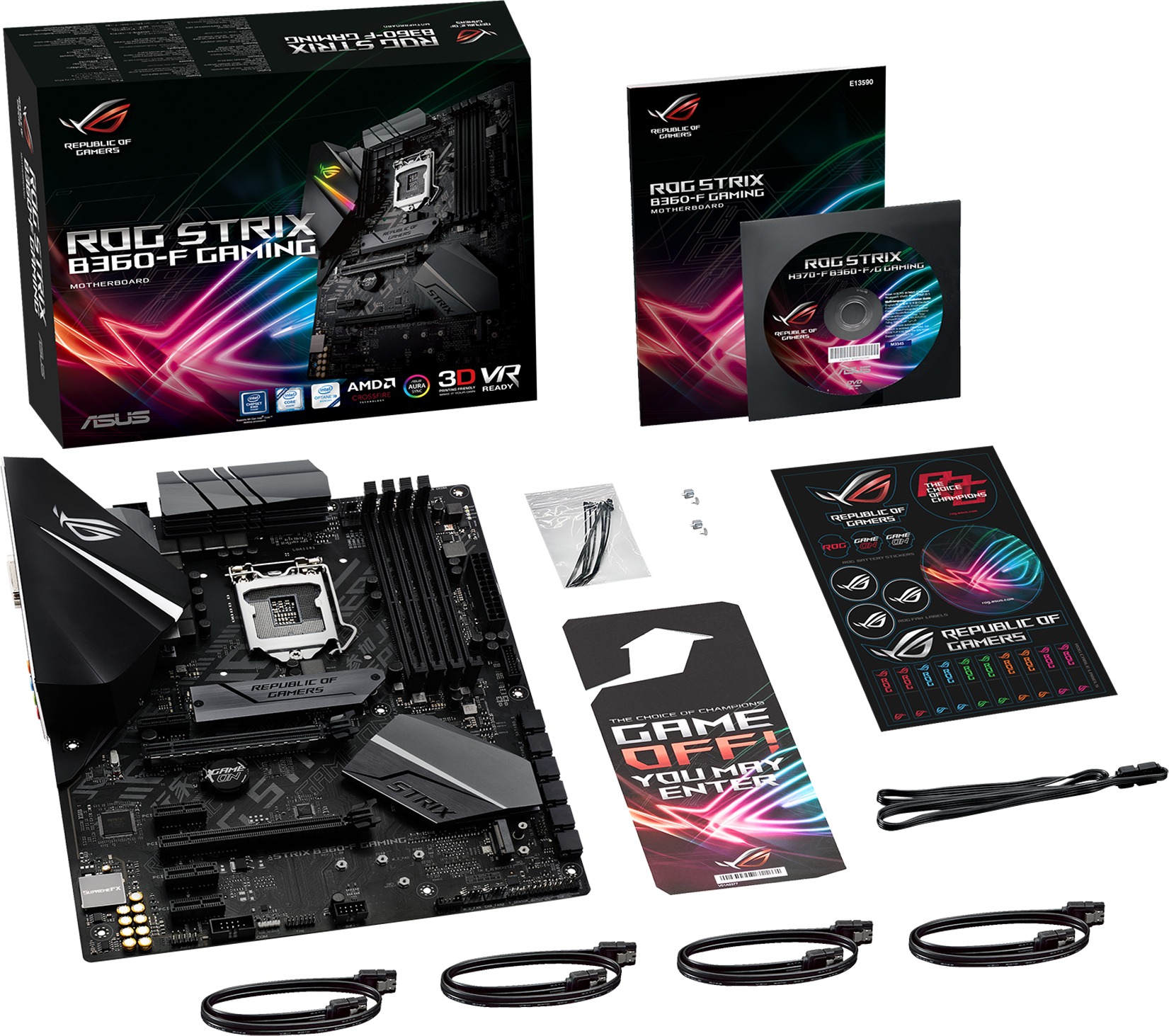

| Комплекта включва: |
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x CABLE TIE BLACK
1 x ROG Strix stickers
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package |
| EAN: |
4712900906202 |
| Производител: |
ASUS |
