AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support.

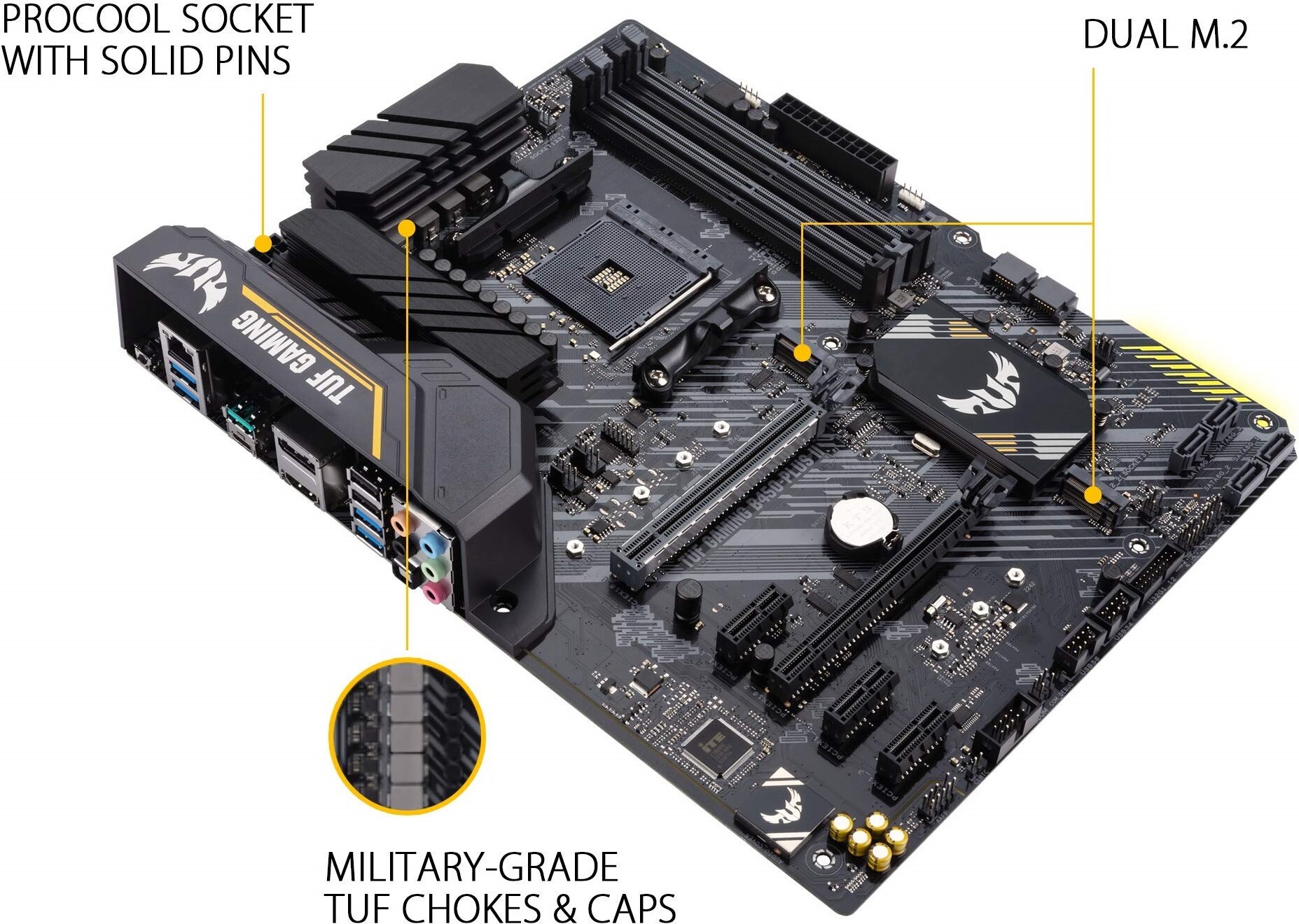

Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear

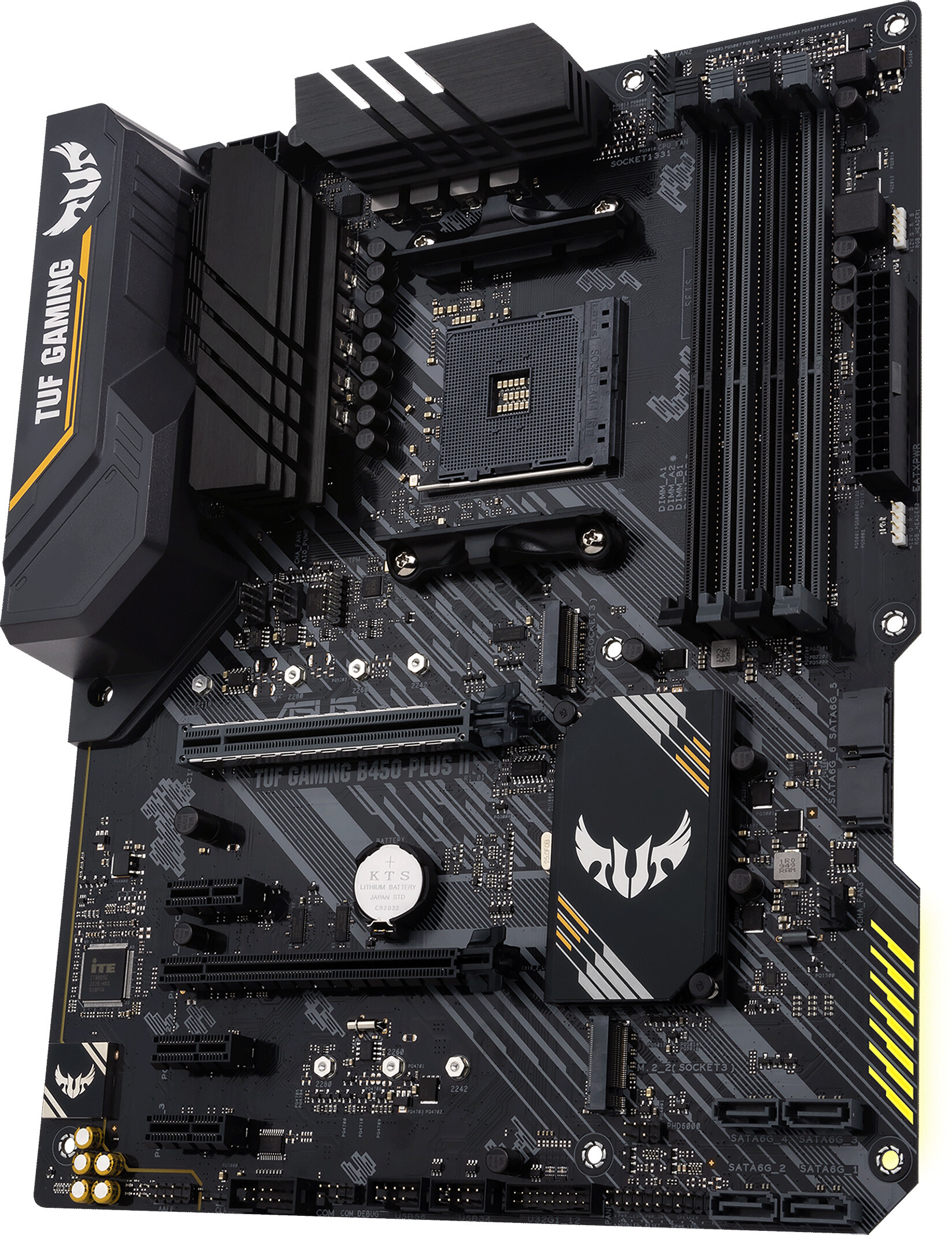

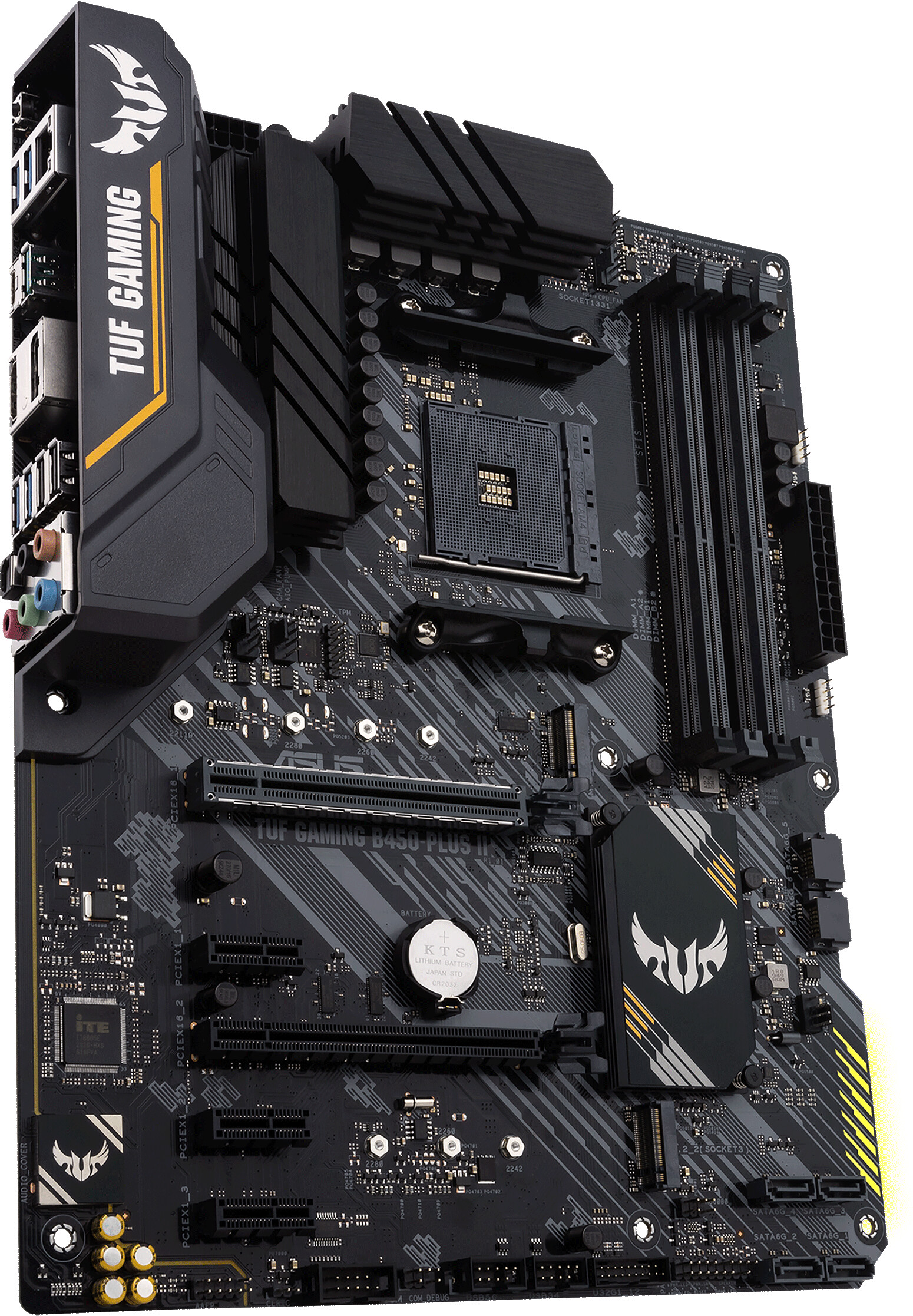

TUF Gaming B450-PLUS II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
Спецификация
Сокет:
AMD AM4
Чипсет:
AMD B450
Процесори:
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Поддържана памет:
4 x DIMM, Max. 128 GB, DDR4 4400(O.C) MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Аудио:
Realtek ALC S1200A HD Audio Codec
Мрежова връзка:
Realtek L8200A Gigabit LAN
Вградена графика:
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
1 x DisplayPort 1.2
1 x HDMI 2.0b
* Graphics specifications may vary between CPU types.
Слотове за периферия:
1 x PCI Express 3.0 x16
1 x PCI Express 2.0 x16
3 x PCI Express 2.0 x1
* Supports AMD CrossFireX™ Technology
Интерфейс за данни:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)
6 x SATA3 6.0 Gb/s
* Support Raid 0, 1, 10
Изходи на задния панел:
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Вътрешни I/O конектори:
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
2 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Операционна система:
Windows® 10 / 7 64-bit
Форм фактор / Размери:
ATX / 12 x 9.6 inch (30.5 x 24.4 cm)

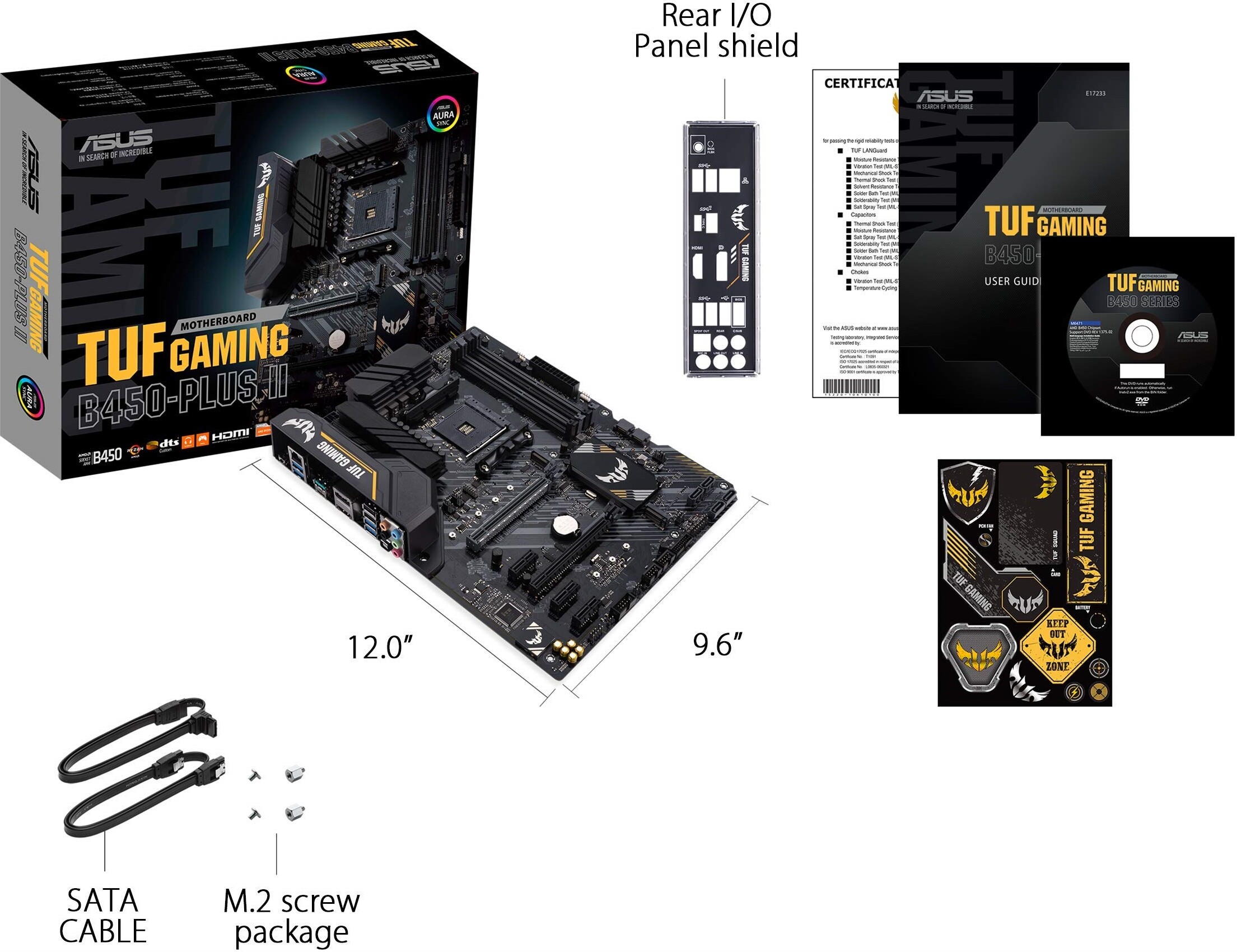

Комплекта включва:
User´s manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x TUF GAMING Sticker, 1 x TUF Certification card(s)
