Описание
Дънна платка ASUS TUF GAMING B550M-PLUS WIFI II, AMD AM4, micro ATX, 4x DDR4, dual M.2, Wi-Fi 6, PCIe 4.0, Aura Sync RGB
TUF GAMING B550M-PLUS WIFI II
AMD B550 (Ryzen AM4) micro ATX гейминг дънна платка с PCIe 4.0, два M.2 слота, 10 DrMOS захранващи степени, Wi-Fi 6, 2,5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A и Type-C®, BIOS FlashBack™ и поддръжка на Aura Sync RGB осветление.
Технически детайли
| CPU Socket: | AM4 |
| Чипсет: | AMD B550 |
| Поддържани процесори: | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Форм фактор: | Micro ATX |
| Поддържана памет: | DDR4 |
| Максимален капацитет RAM памет: | 128 GB |
| Слотове памет: | 4 |
| Честота памет: | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Поддръжка на Dualchannel: | Да |
| Вградено аудио: | Realtek 7.1 Surround Sound High Definition Audio CODEC, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, ALC897 |
| Вграден LAN: | TUF LANGuard, Realtek 2.5Gb Ethernet |
| Вграден Wi-Fi: | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Вграден Bluetooth: | Bluetooth V5.2 |
| Слотoве PCI-E x16: | 1 x PCIe 3.0 x16, 1 x PCIe 4.0 x16 |
| Слотoве PCI-E x1: | 1 |
| Интерфейс Serial ATA: | 4 x SATA 6Gb/s |
| М2 слот: | M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| Поддръжка на RAID: | 0, 1, 10 |
| Конектор захранване: | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Видео слот: | PCI Express |

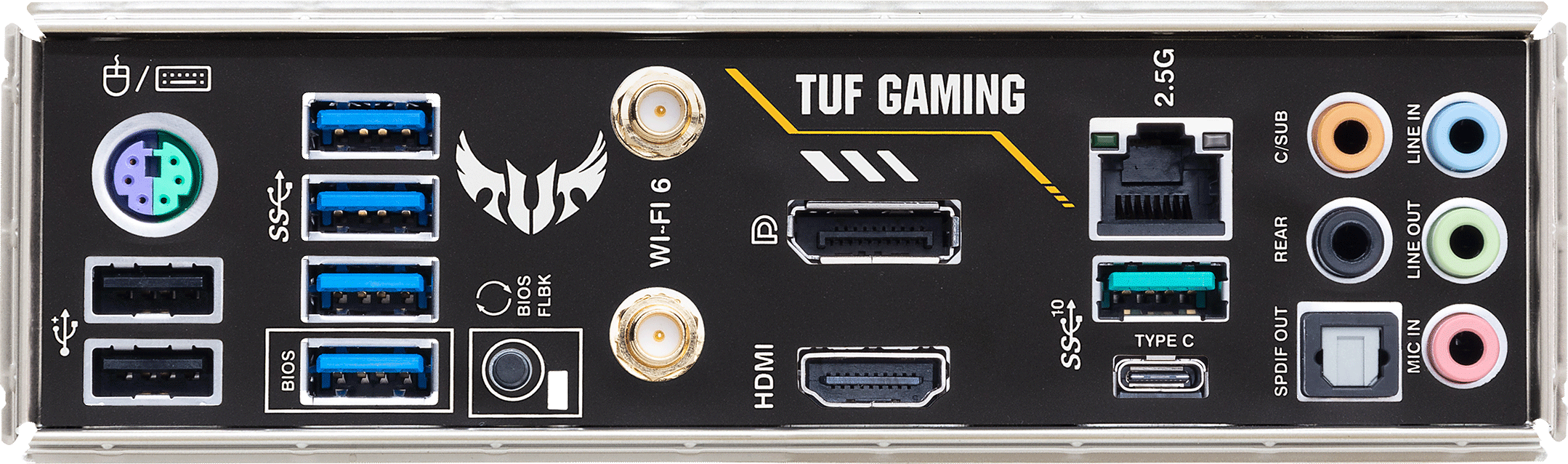

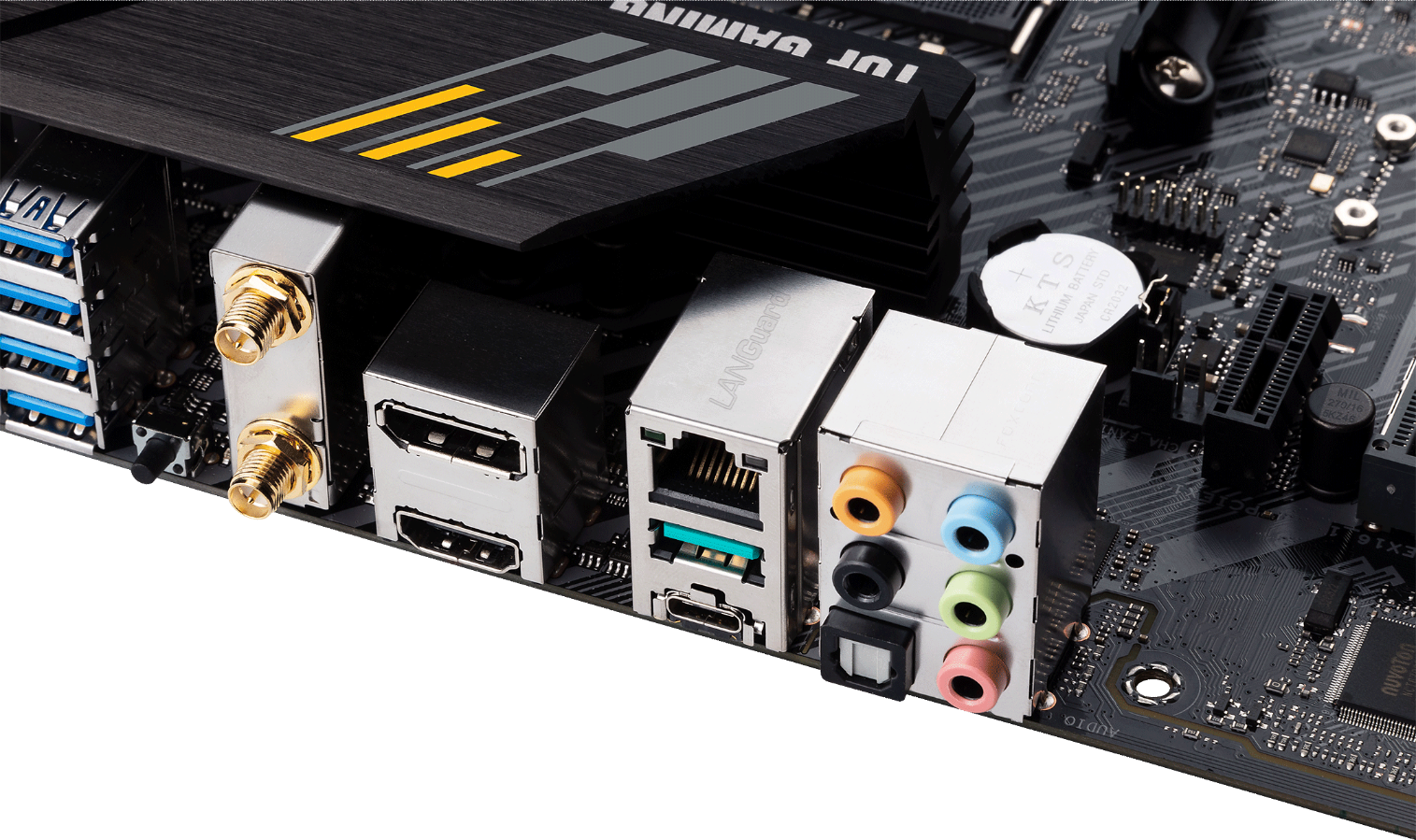

| Свързаност: | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port |
| USB Type-C: | 1 |
| USB 3.2: | 5 |
| USB 2.0: | 2 |
| Размери: | 24.4cm x 24.4cm |
| Поддържани технологии: | ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |

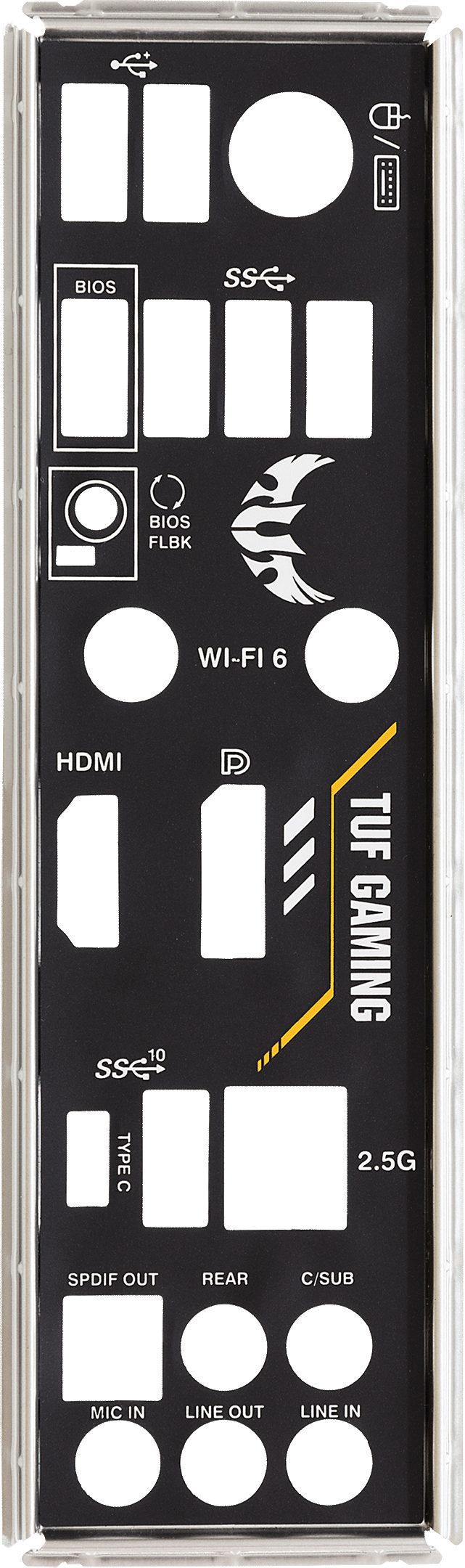

| Комплектът включва: | 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber package, 1 x M.2 SSD screw package, 1 x TUF Gaming sticker, 1 x Support DVD, 1 x TUF Certification card, 1 x User guide |
| Други: | 256 Mb Flash ROM, UEFI AMI BIOS |
Спецификация
| MPN: |
90MB19Y0-M0EAY0 |
| EAN: |
4711081305705 |
| Производител: |
ASUS |
Тагове: Дънни платки ASUS, AMD AM4, AMD B550, microATX
