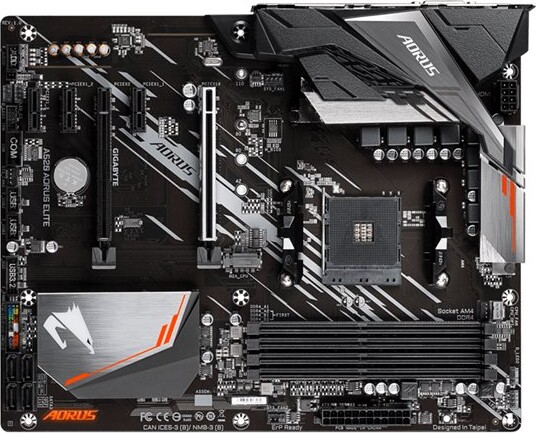

| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC1200 |
| Compliant Standards: | High Definition Audio |
| Network Interfaces: | Gigabit Ethernet |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type: | AMI |
| BIOS Features: | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features: | Q-Flash, On/Off Charge, Ultra Durable, GIGABYTE AMP-UP Audio, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0, 5+3 Phase Power Design |
| Software Included: | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
