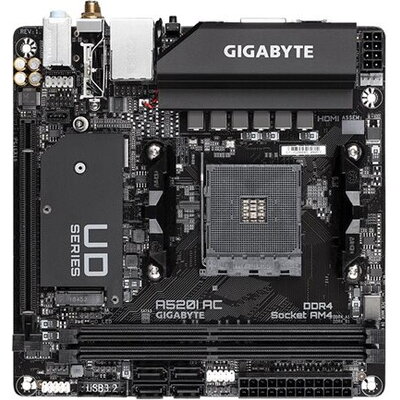

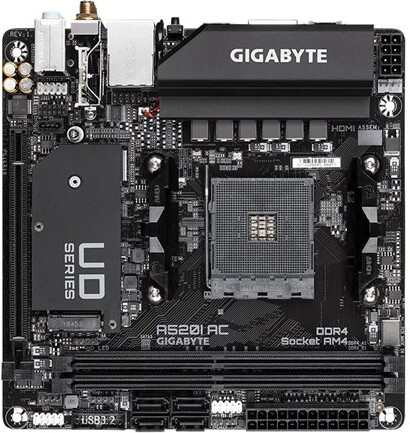

| Product Type: | Motherboard - mini ITX |
| Chipset Type: | AMD A520 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5200 MHz (O.C.), 5100 MHz (O.C.), 5300 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| Network Interfaces: | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type: | AMI |
| BIOS Features: | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Hardware Features: | Q-Flash, On/Off Charge, 6 Phase Power Design, Ultra Durable, Q-Flash Plus, Dr.MOS MOSFET, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0 |
| Software Included: | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width: | 17 cm |
| Depth: | 17 cm |
