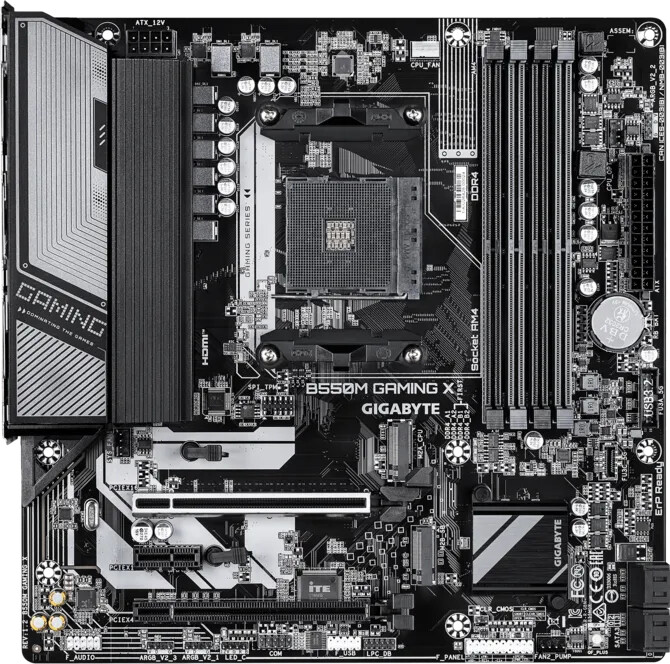

| Model | B550M GAMING X |
| Socket | AMD AM4 |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:;
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz;
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
** Support for native HDMI 2.1 TMDS compatible ports.;
(Graphics specifications may vary depending on CPU support.);
Maximum shared memory of 16 GB |
| CPU's supported | AMD Socket AM4, support for:;
AMD Ryzen™ 5000 G-Series Processors/;
AMD Ryzen™ 5000 Series Processors/;
AMD Ryzen™ 4000 G-Series Processors/;
AMD Ryzen™ 3000 G-Series Processors/;
AMD Ryzen™ 3000 Series Processors |
| Chipset | AMD B550 |
| Expansion slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode;
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4;
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs;
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs;
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs;
4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory;
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for Extreme Memory Profile (XMP) memory modules |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | CPU:;
- 4 x USB 3.2 Gen 1 ports on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;
- 2 x USB 3.2 Gen 1 ports available through the internal USB header;
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Connectors | 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
1 x system fan header;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
2 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 1 support;
1 x USB 3.2 Gen 1 header;
1 x USB 2.0/1.1 header;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);
1 x serial port header;
1 x Clear CMOS jumper;
1 x Q-Flash Plus button;
Back Panel Connectors;
2 x USB 2.0/1.1 ports;
1 x PS/2 keyboard/mouse port;
1 x HDMI port;
1 x DisplayPort;
4 x USB 3.2 Gen 1 ports;
1 x RJ-45 port;
2 x antenna connectors;
3 x audio jacks |
| Audio | Realtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| BIOS | 1 x 128 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | Micro ATX |
| OS | Support for Windows 11 64-bit;
Support for Windows 10 64-bit |
| Dimensions | 24.4cm x 24.4cm |
