Описание

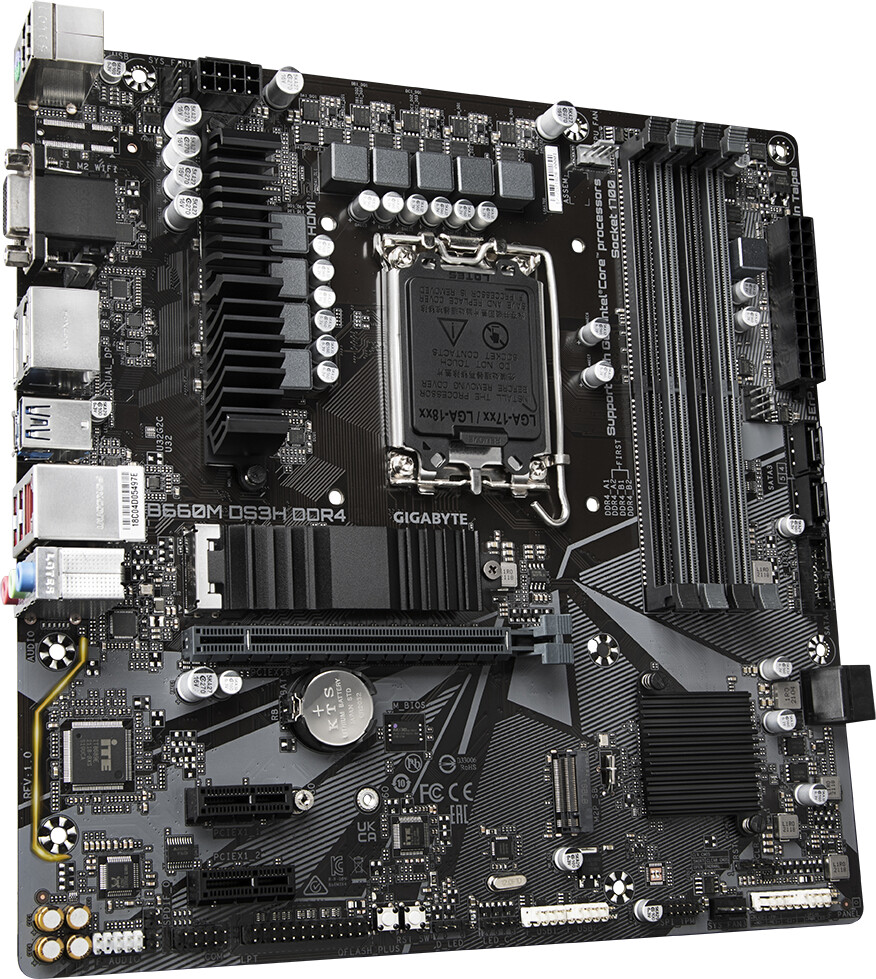

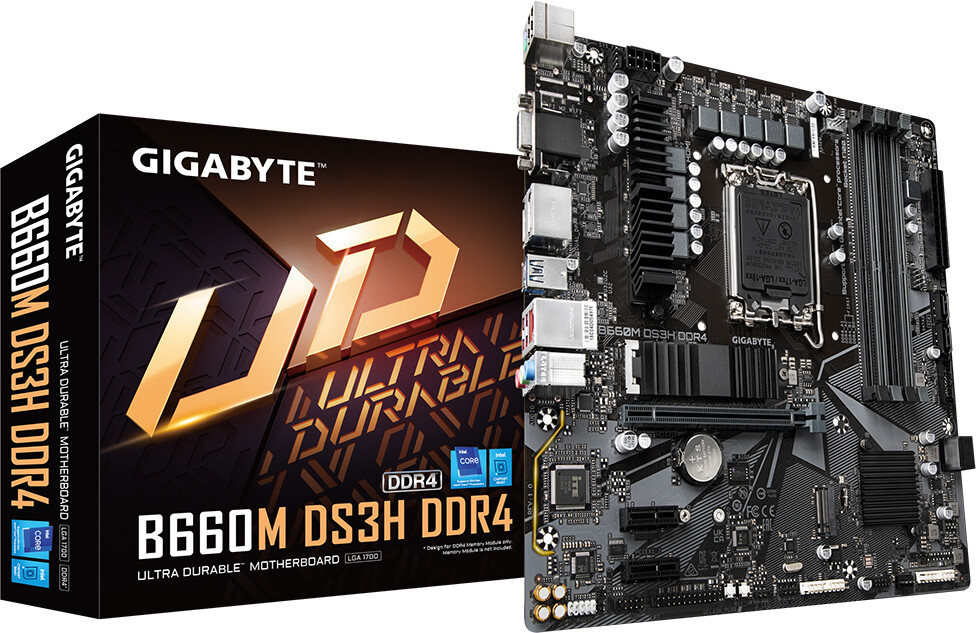

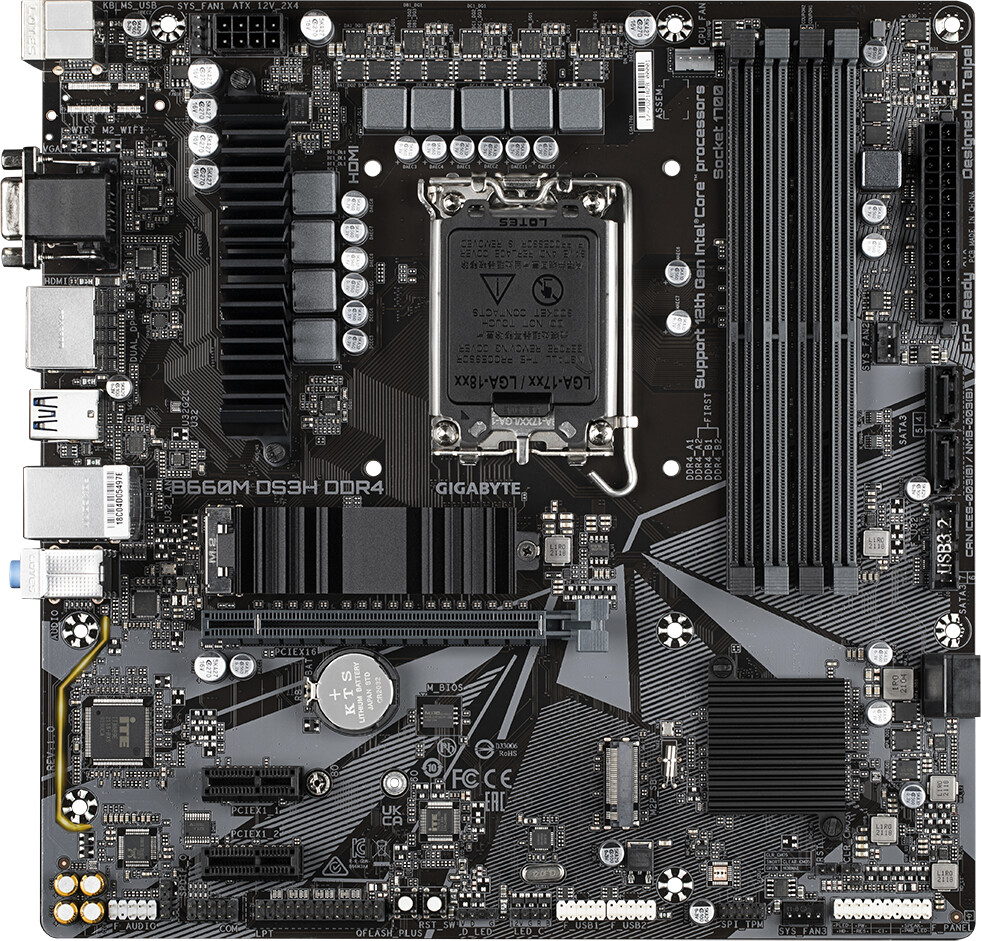

Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus.
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
- Fast 2.5 GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
- Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Спецификация
| Сокет: |
Intel LGA 1700 |
| Чипсет: |
Intel B660 |
| Процесори: |
Supports 12th Gen Intel® Core™ Processors (LGA1700) |
| Поддържана памет: |
Dual channel memory architecture
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Аудио: |
Realtek Audio Codec |
| Мрежова връзка: |
Realtek 2.5GbE LAN |
| Вградена графика: |
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.
2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Graphics specifications may vary depending on CPU support; Support for up to 4 displays at the same time |
| Слотове за периферия: |
1x PCI Express 4.0 x16
2x PCI Express 3.0 x1 |
| Интерфейс за данни: |
2 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU + M2P_SB)
4 x SATA 6Gb/s connectors
* Support for RAID 0, RAID 1, RAID 5, and RAID 10; Intel® Optane™ Memory Ready |

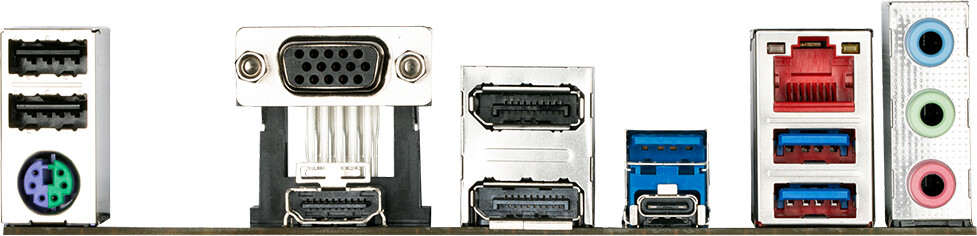

| Изходи на задния панел: |
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks |
| Вътрешни I/O конектори: |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper |
| Операционна система: |
Microsoft® Windows® 10 / 11 64-bit |
| Форм фактор / Размери: |
Micro ATX / 24.4 x 24.4 cm |
| MPN: |
B660M DS3H DDR4 |
| EAN: |
4719331830328 |
| Производител: |
GIGABYTE |
Допълнителна информация за продукта вижте на страницата на производителя
Тагове: Intel LGA 1700, Дънни платки GIGABYTE, microATX, Intel B660
