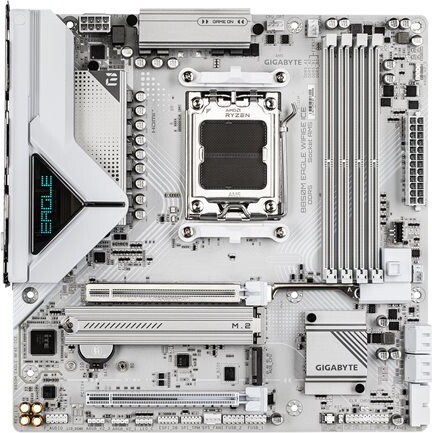

Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B850 |
Processor Socket: | Socket AM5 |
Max Processors Qty: | 1 |
Compatible Processors: | (supports Ryzen 7000/8000/9000 Series) |
Max Size: | 256 GB |
Technology: | DDR5 |
Bus Clock: | 4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 8000 MT/s (O.C.), 8200 MT/s (O.C.) |
Supported RAM Integrity Check: | Non-ECC, ECC (operate in non-ECC mode) |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, AMD EXPO technology, supported ECC modules operate in non-ECC mode |
Type: | HD Audio (8-channel) |
Compliant Standards: | High Definition Audio |
Network Controller: | Realtek RTL8852CE |
Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
Hardware Monitoring: | System voltage, temperature detection, fan speed detection, fan fail warning, water cooling flow rate, fan control |
Hardware Features: | 8+2+2 Phase Power Design, 6 Layer PCB, Premium Power Choke, pre-mounted I/O shield, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus button, WIFI EZ-Plug, High-end Audio Capacitors, RGB FUSION, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, EZ Debug LED, Ultra Durable |
Software Included: | GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
Width: | 24.4 cm |
Depth: | 24.4 cm |
