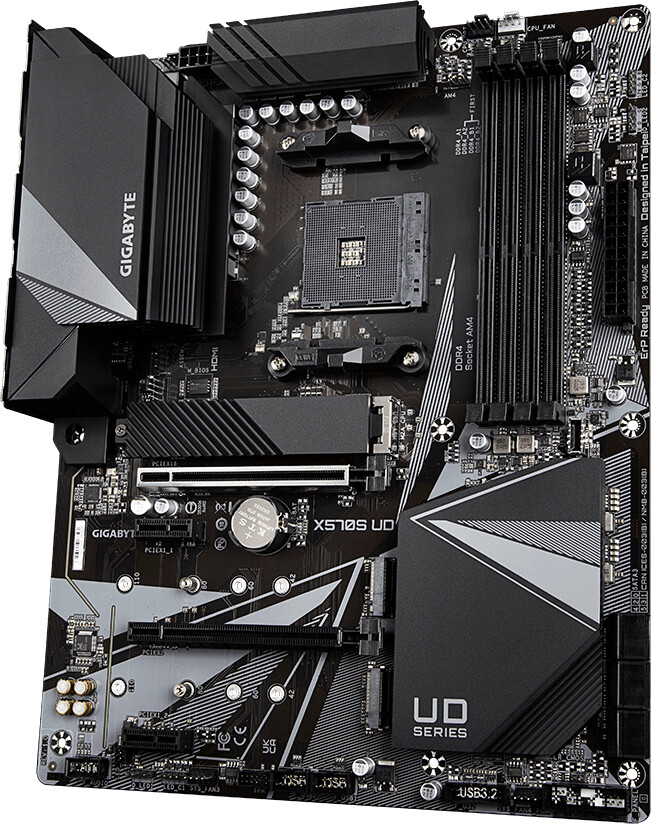

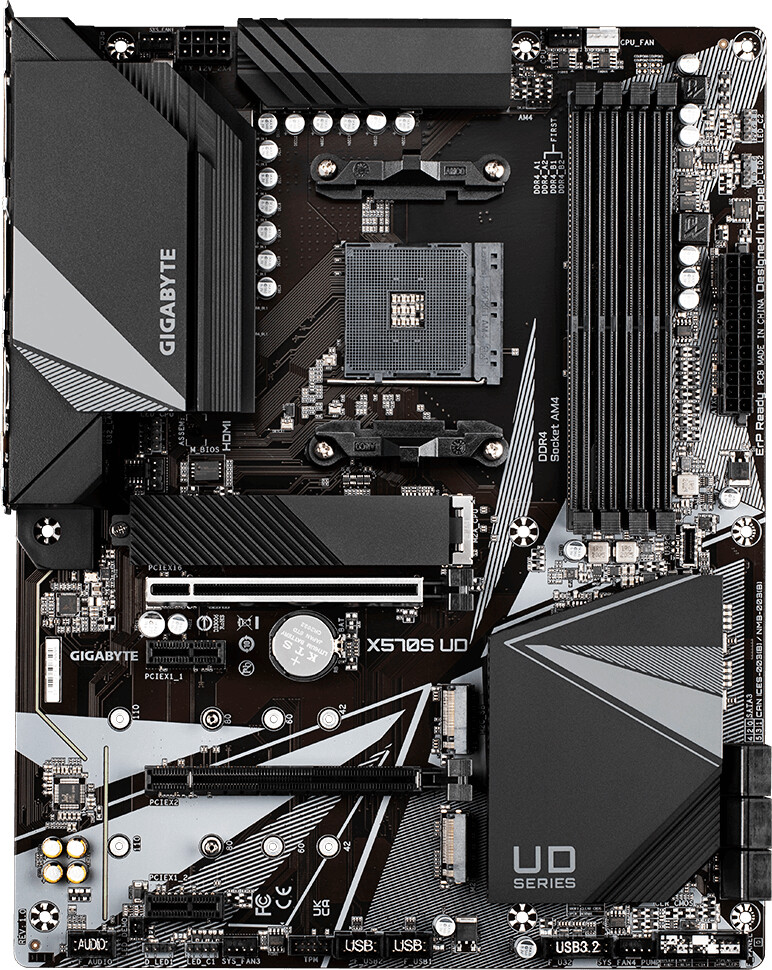

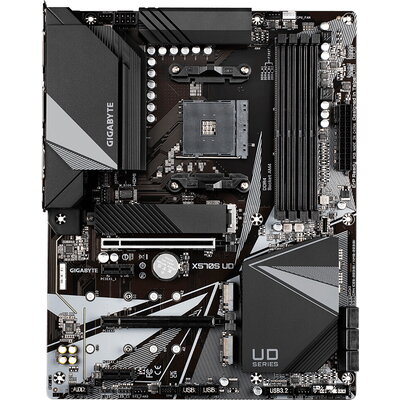

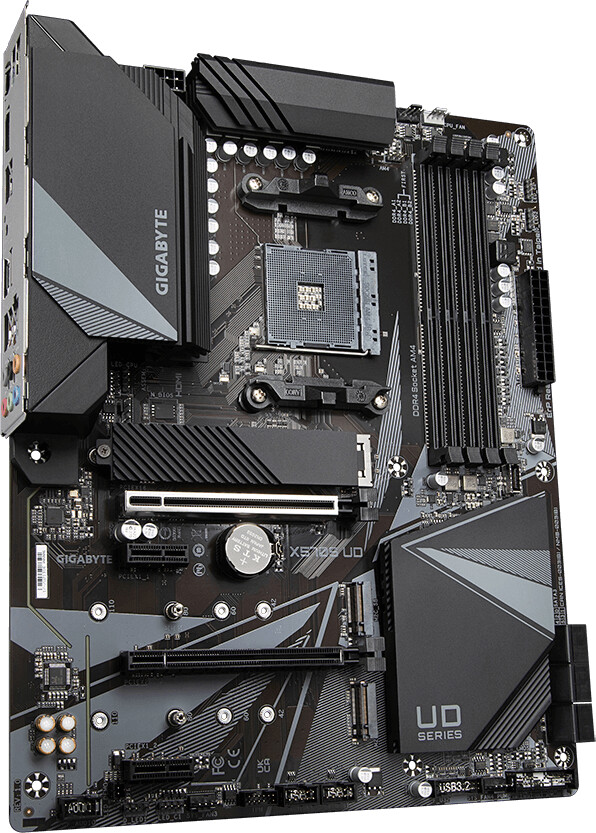

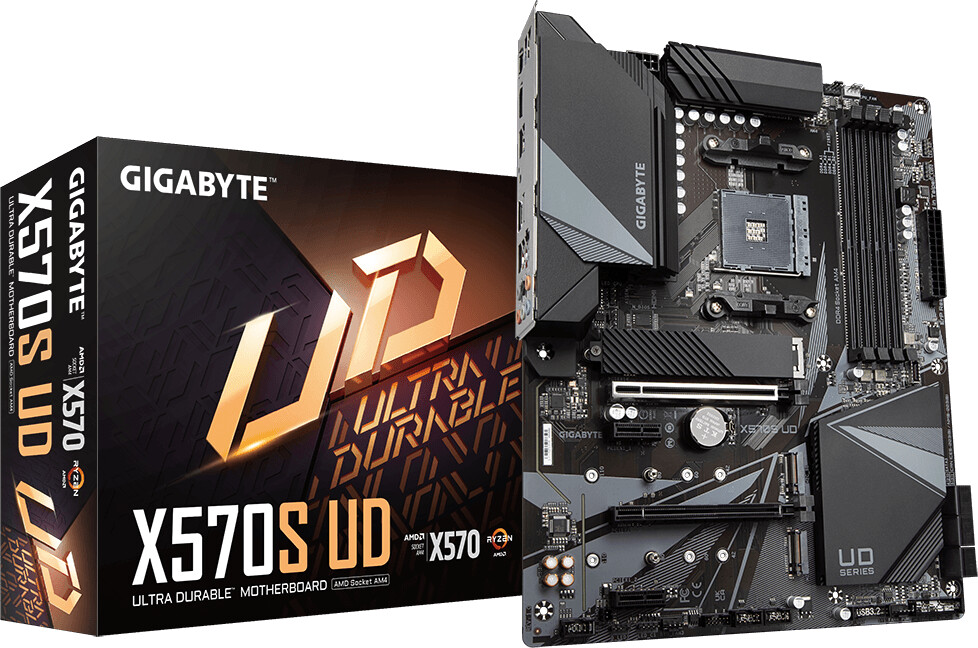

Дънна платка GIGABYTE X570S UD
Дънна платка GIGABYTE X570S UD
Дънна платка GIGABYTE X570S UD
Дънна платка GIGABYTE X570S UD
Дънна платка GIGABYTE X570S UD

Дънна платка GIGABYTE X570S UD

  • Сокет:
    AMD AM4
  • Чипсет:
    AMD X570S
  • Аудио:
    Realtek Audio Codec
  • Мрежова връзка:
    Realtek® 2.5GbE Ethernet
  • Форм фактор / Размери:
    ATX / 12 x 9.6 in. (30.5 x 24.4 cm)
  • Производител:
    GIGABYTE
  • Гаранция:
    3 години

Тагове: Дънни платки GIGABYTE, AMD AM4, ATX

Продуктът е изчерпан и не може да бъде поръчан!
(Код: 41415)

Описание

AMD® X570S UD Motherboard with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN, Rear & Front USB 3.2 Type-C®, RGB FUSION 2.0, Q-Flash Plus.

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Fast 2.5GbE LAN with Bandwidth Management
  • Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Спецификация

Сокет: AMD AM4
Чипсет: AMD X570S
Процесори: Supports AMD Ryzen™ 5000 / 4000 G-Series / 3000 / 2000 Series desktop processors Socket AM4
Поддържана памет: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5100 (O.C.) MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Аудио: Realtek Audio Codec
Мрежова връзка: Realtek® 2.5GbE Ethernet
Вградена графика: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; *Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Слотове за периферия: 2x PCI Express 4.0 x16
2x PCI Express 4.0 x1
Интерфейс за данни: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs
2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset. Support for RAID 0, RAID 1, and RAID 10

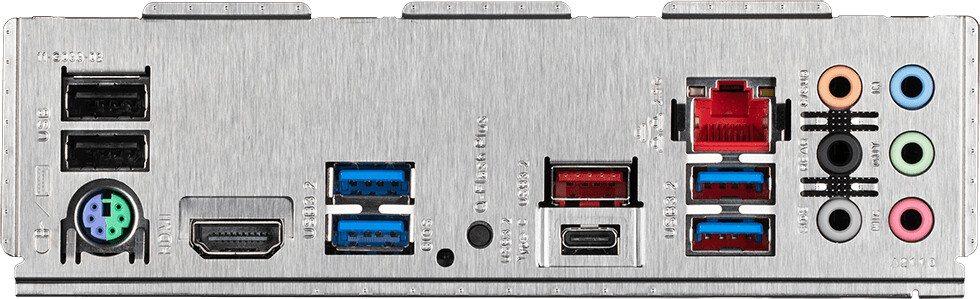

Изходи на задния панел: 1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x Q-Flash Plus button
1 x RJ-45 port
6 x audio jacks
Вътрешни I/O конектори: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Операционна система: Windows® 10 / 11 64-bit
Форм фактор / Размери: ATX / 12 x 9.6 in. (30.5 x 24.4 cm)
MPN: X570S UD
Производител: GIGABYTE

Тагове: Дънни платки GIGABYTE, AMD AM4, ATX
