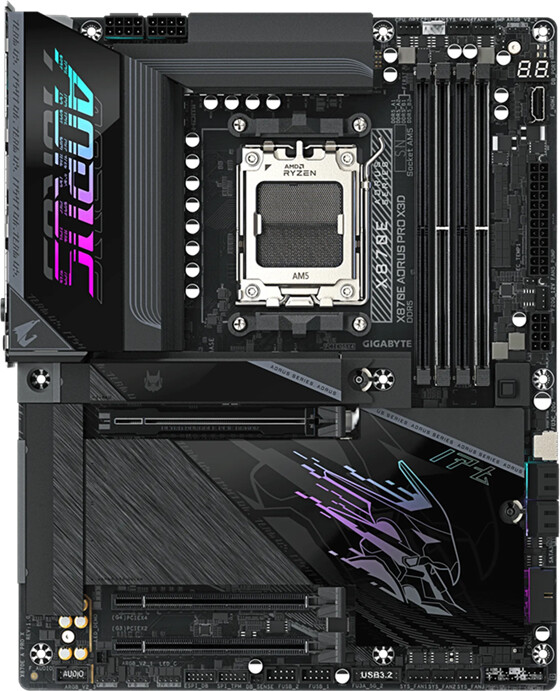

Дънна платка GIGABYTE X870E AORUS PRO X3D ICE

Дънна платка GIGABYTE X870E AORUS PRO X3D ICE

  • Производител:
    GIGABYTE
  • Гаранция:
    3 години

Тагове: Дънни платки GIGABYTE

739,80 лв. (378,25€)
На склад Код: 86674
Безплатна доставка!
Кредитен калкулатор DSK Credit

Описание

GB X870E AORUS PRO X3D ICE

Спецификация

USBCPU+ASMedia USB4® controller:;- 2 x USB4® USB Type-C® ports on the back pane;CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;Chipset+USB 3.2 Gen 1 Hub:;- 4 x USB 3.2 Gen 1 ports available through the internal USB headers;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging);- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;- 3 x USB 3.2 Gen 1 ports on the back panel;- 4 x USB 2.0/1.1 ports available through the internal USB headers
WirelessQualcomm® Wi-Fi 7 QCNCM865;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 320MHz wireless standard;(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.;***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details
Memory typeSupport for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
FeaturesSupport for GIGABYTE Control Center (GCC);Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPU's supportedAMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors
ChipsetAMD X870E
Bluetooth5.4
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR;Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
I/OiTE® I/O Controller Chip
Connectors1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x PCIe power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;4 x system fan headers;2 x system fan/water cooling pump headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x SATA 6Gb/s connectors;4 x M.2 Socket 3 connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;2 x USB 3.2 Gen 1 headers;2 x USB 2.0/1.1 headers;1 x noise detection header;1 x HDMI port (Note);1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);2 x temperature sensor headers;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x HDMI port (Note);1 x reset button;1 x power button;1 x Clear CMOS button;1 x Q-Flash Plus button;5 x USB 3.2 Gen 2 Type-A ports (red);2 x USB Type-C® ports, with USB 3.2 Gen 2 support;2 x USB4® USB Type-C® ports (DisplayPort (Note));1 x RJ-45 port;3 x USB 3.2 Gen 1 ports;2 x antenna connectors (2T2R);2 x audi
AudioRealtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
LANRealtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
BIOS1 x 512 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 24.4cm
OSSupport for Windows 11 64-bit

Спецификация

Тегло: 2.00 kg
MPN: X870E AORUS PRO X3D ICE
Производител: GIGABYTE
