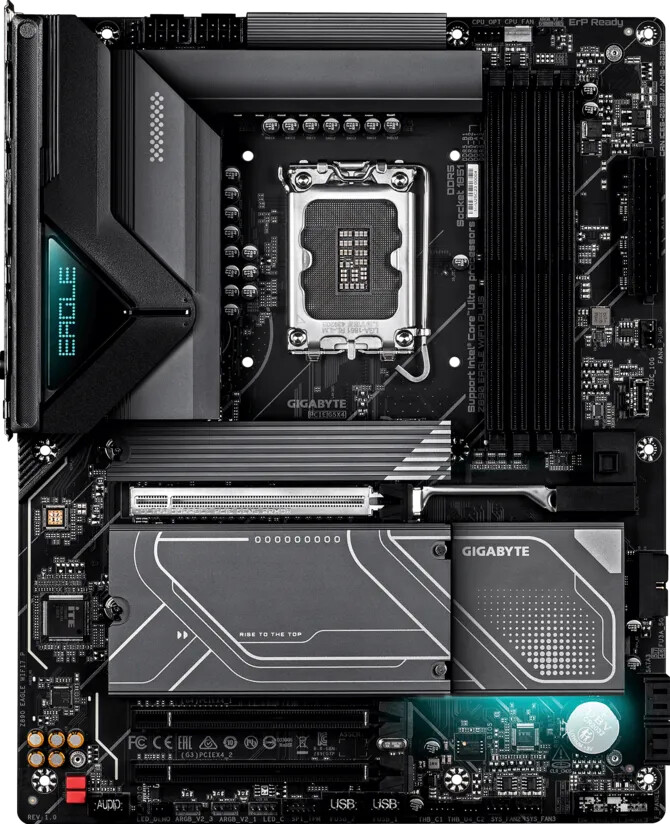

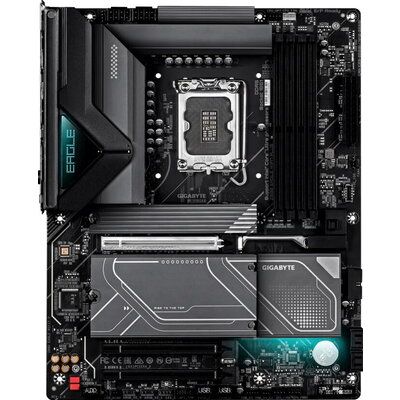

| Model | Z890 EAGLE WIFI7 P |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:;
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version;
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors;
(Go to GIGABYTE's website for the latest CPU support list.);
L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset
|
| Expansion slots | CPU:;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
| Storage | CPU:;
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);
Chipset:;
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);
- 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Memory type | Support up to DDR5 9466+MT/s (OC);
4 x DDR5 DIMM slots, Dual Channel;
Max. Capacity 256 GB;
Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM);
Supports Intel® Extreme Memory Profile (XMP) memory module |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | CPU:;
- 1 x USB4® USB Type-C® port on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);
Chipset+2 USB 2.0 Hubs:;
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Connectors | 1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
4 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only);
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);
1 x reset jumper;
1 x Clear CMOS jumper;
Back Panel Connectors:;
1 x power button;
1 x reset button;
1 x Q-Flash Plus button;
1 x Clear CMOS button;
1 x USB4® USB Type-C® port (DisplayPort (Note));
2 x USB 3.2 Gen 2 Type-A ports (red);
3 x USB 3.2 Gen 1 ports;
4 x USB 2.0/1.1 ports;
1 x DisplayPort (Note);
2 x antenna connectors (2T2R);
1 x RJ-45 port;
2 x audio jacks;
1 x optical S/PDIF Out connector |
| Audio | Realtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;
Support for S/PDIF Out |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel® Wi-Fi 7 BE202 (BE200NGW M);
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard; |
| BIOS | 1 x 512 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX Form Factor; 30.5cm x 24.4cm |
| OS | Support for Windows 11 64-bit |
