Дънна платка MSI B550 GAMING WIFI6E

Дънна платка MSI B550 GAMING WIFI6E

  • Производител:
    MSI
  • Гаранция:
    3 години

Тагове: Дънни платки MSI

130,92 €
На склад Код: 94636
Кредитен калкулатор DSK Credit

Описание

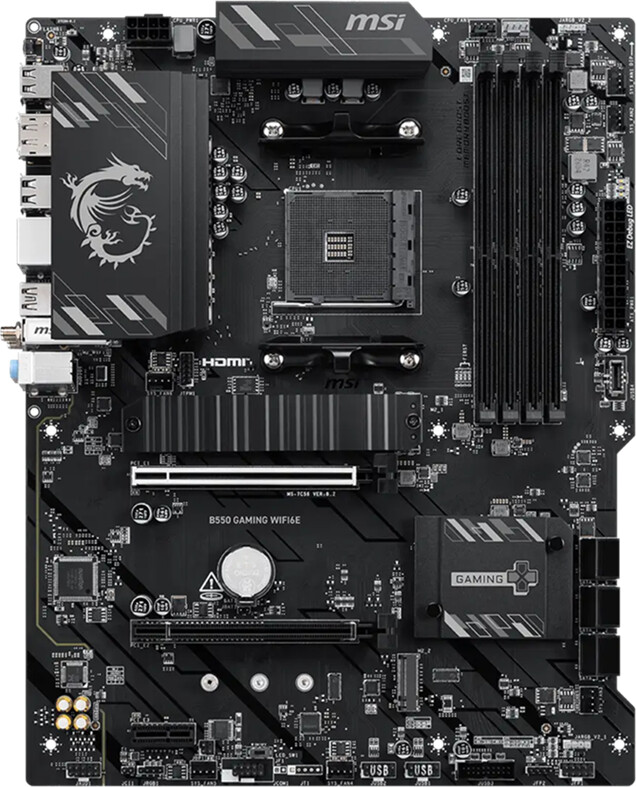

MSI B550 GAMING WIFI6E


Спецификация

SocketSocket AM4
Graphics1x HDMI™; Support HDMI™ 1.4, maximum resolution of 4K 30Hz; 1x DisplayPort; Support DisplayPort 1.2, maximum resolution of 4K 60Hz
CPU's supportedSupports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
ChipsetAMD B550
Expansion slots2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset); *The supported specification depends on installed processor.; **When installing PCIe SSD in M.2_2 slot, PCI_E2 slot will be unavailable.
Storage2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices; 6x SATA 6G
Memory type4x DDR4, Maximum Memory Capacity 128GB; Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 3866+ MHz; • 2DPC 1R Max speed up to 4000+ MHz; • 2DPC 2R Max speed up to 3600+ MHz; • Dual channel memory architecture; • Supports non-ECC UDIMM memory; • Supports ECC UDIMM memory (non-ECC mode); • Supports un-buffered memory
Rear panel I/OUSB 2.0; DisplayPort 1.2; 1G LAN; USB 10Gbps (Type-A); Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI™; USB 2.0; USB 5Gbps (Type-A); USB 10Gbps (Type-C)
USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear)
Connectors1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
AudioRealtek® ALC897; 7.1-Channel High Definition Audio
LanRealtek® 8111H 1G LAN
WirelessWi-Fi 6E Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Dual-band 1T1R mode; Supports MU-MIMO RX; Supports 2.4GHz/ 5GHz/ 6GHz* frequency band; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3**; * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
Form factorATX 243.84mmx304.8mm
OSSupport for Windows® 11 64-bit

Спецификация

Тегло: 1.50 kg
MPN: 911-7C56-095
EAN: 4711377459082
Производител: MSI
