Описание
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience: PCIe 4.0
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Спецификация
| Сокет: |
Intel LGA 1200 |
| Чипсет: |
Intel B560 |
| Процесори: |
Supports 10-то/11-то поколение процесори Intel® Core ™, Pentium, Celeron (LGA1200) |
| Поддържана памет: |
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots; DDR4 non-ECC, un-buffered memory up to 4800+ (OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64 GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Аудио: |
Realtek ALC897 Audio Codec |
| Мрежова връзка: |
Intel® I219V Gigabit LAN |
| Вградена графика: |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536, 1920x1200 60Hz
* Available only on processors featuring integrated graphics. |
| Слотове за периферия: |
1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x1 |
| Интерфейс за данни: |
4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
1x M.2 slot (Key M), support up to PCIe 3.0 x4 / SATA 2242 / 2260 / 2280 storage devices |

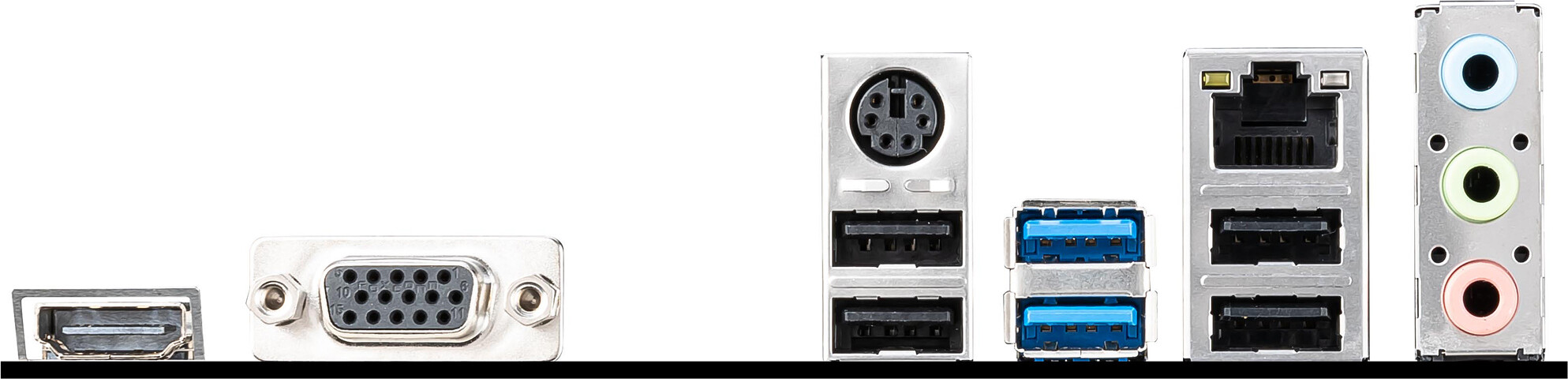

| Изходи на задния панел: |
HDMI
VGA
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0 |

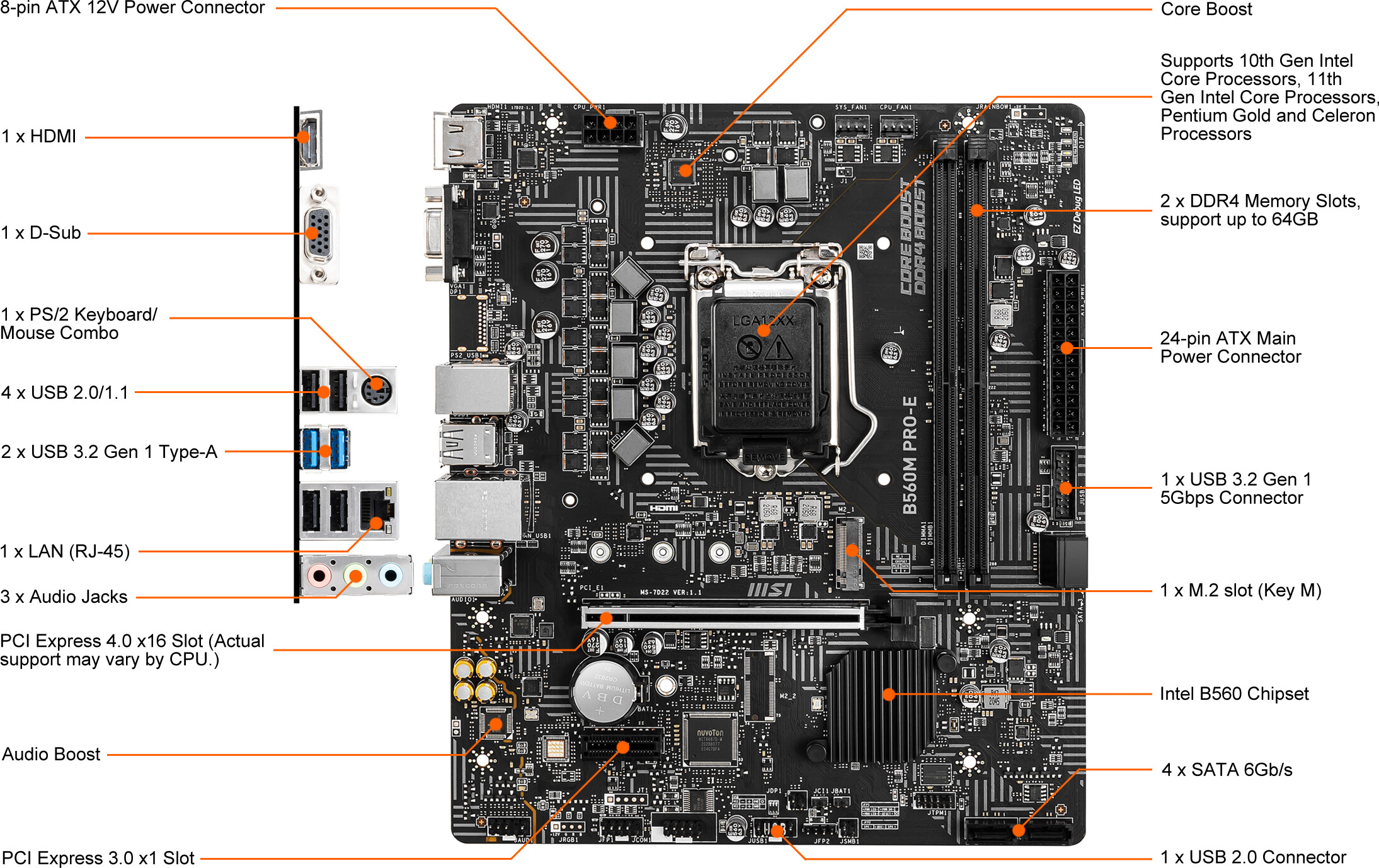

| Вътрешни I/O конектори: |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector |
| Операционна система: |
Microsoft® Windows® 10 / 11 64-bit |
| Форм фактор / Размери: |
Micro ATX / 9.29 x 7.95 in. (23.6 x 20.2 cm) |
| MPN: |
911-7D22-030 |
| SKU: |
7D22-005R |
| EAN: |
4719072807856 |
| Производител: |
MSI |
Тагове: Intel LGA 1200, microATX, Дънни платки MSI
