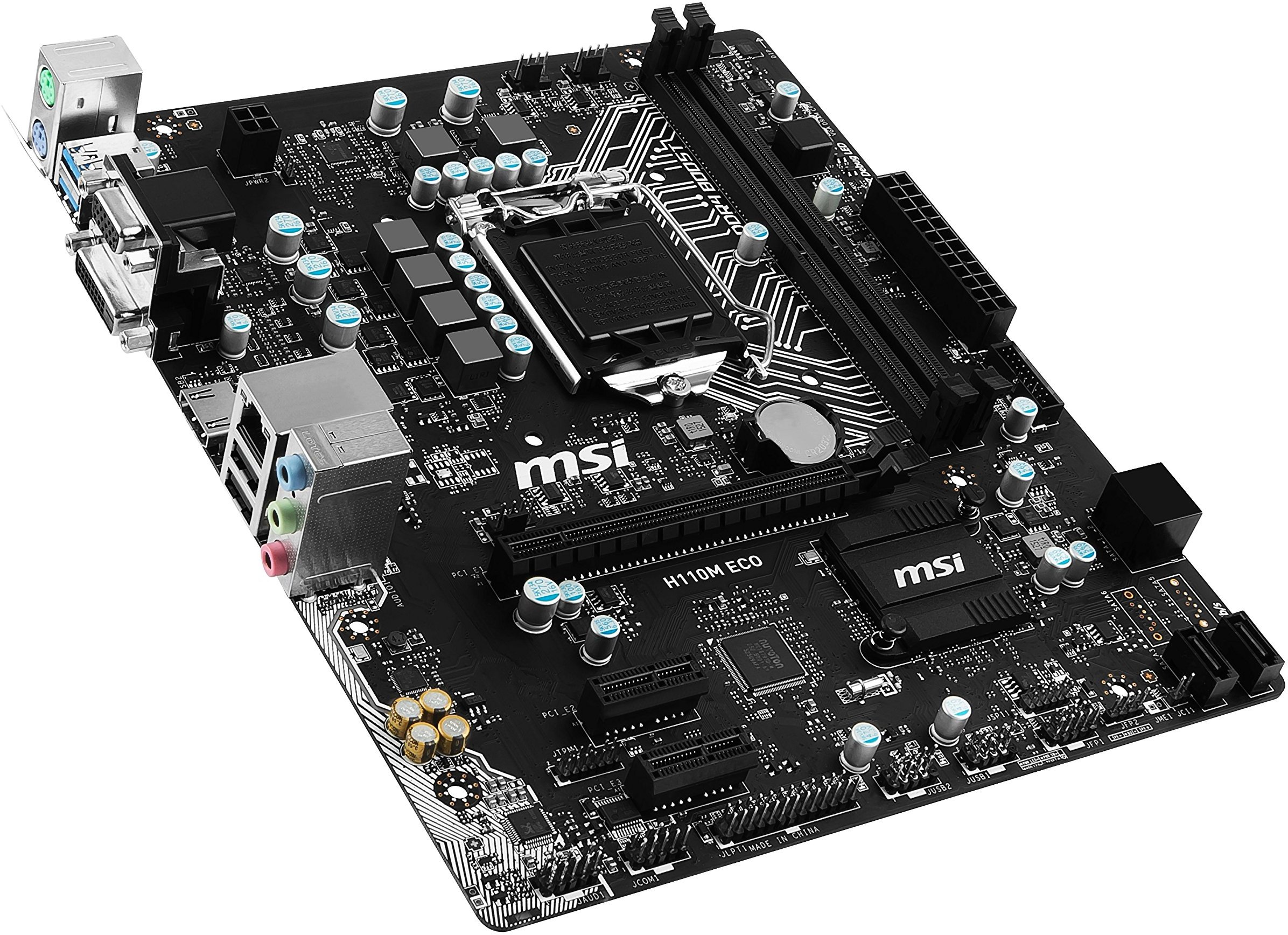

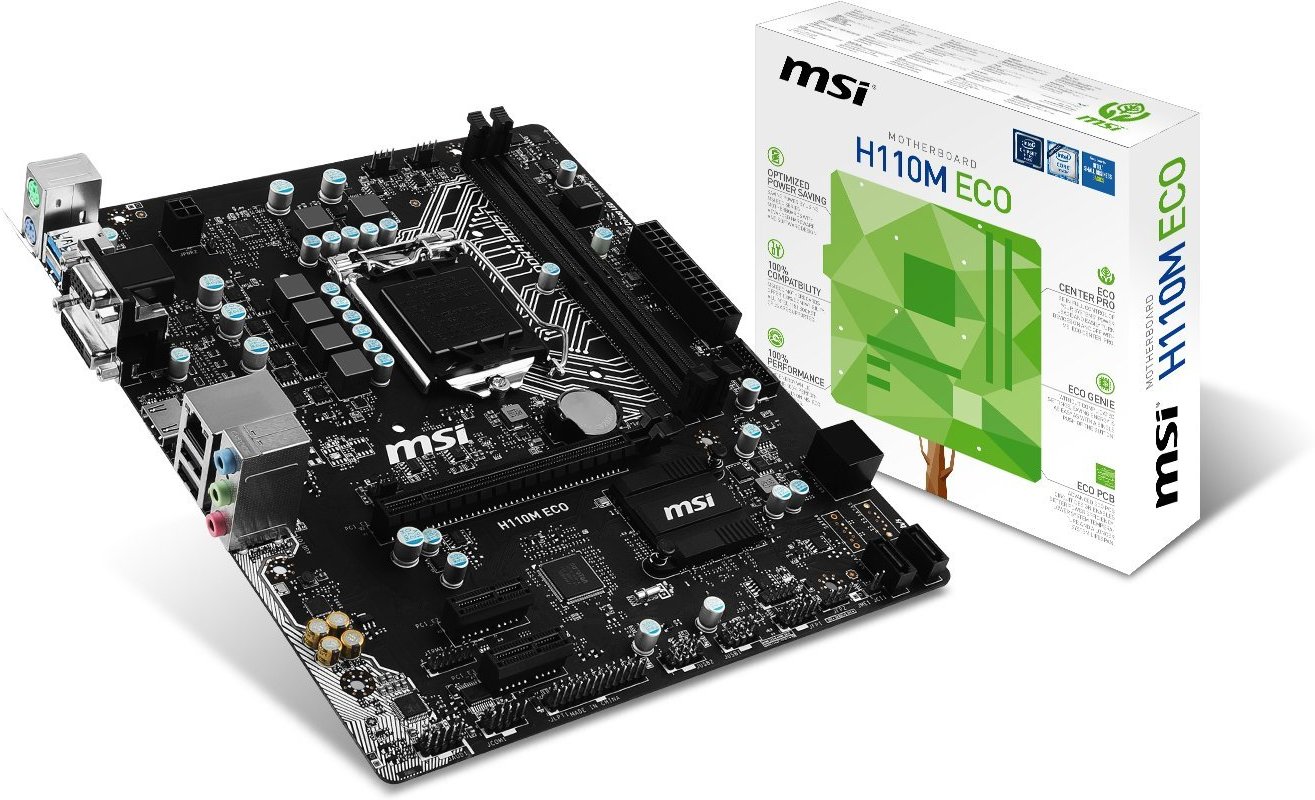

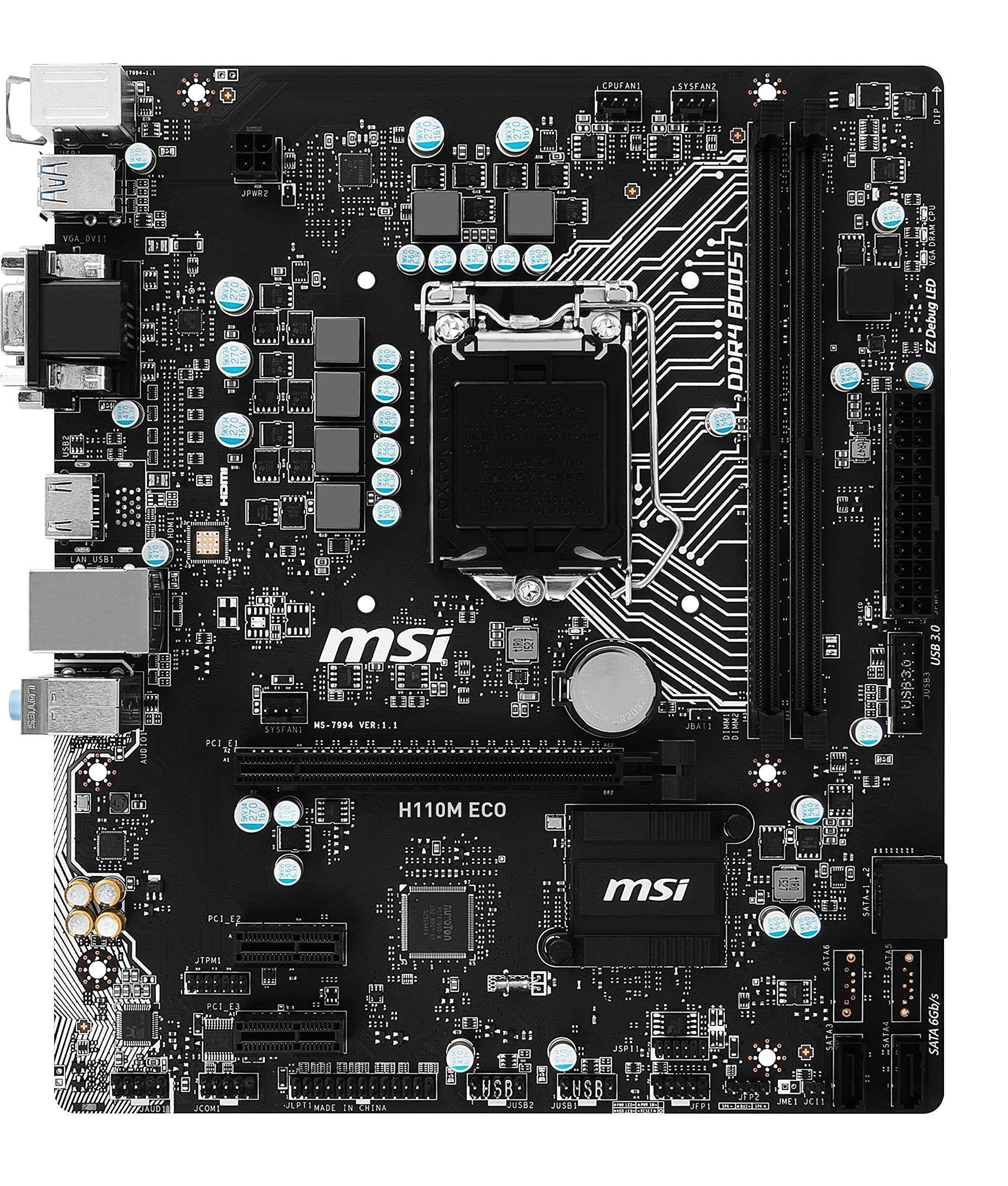

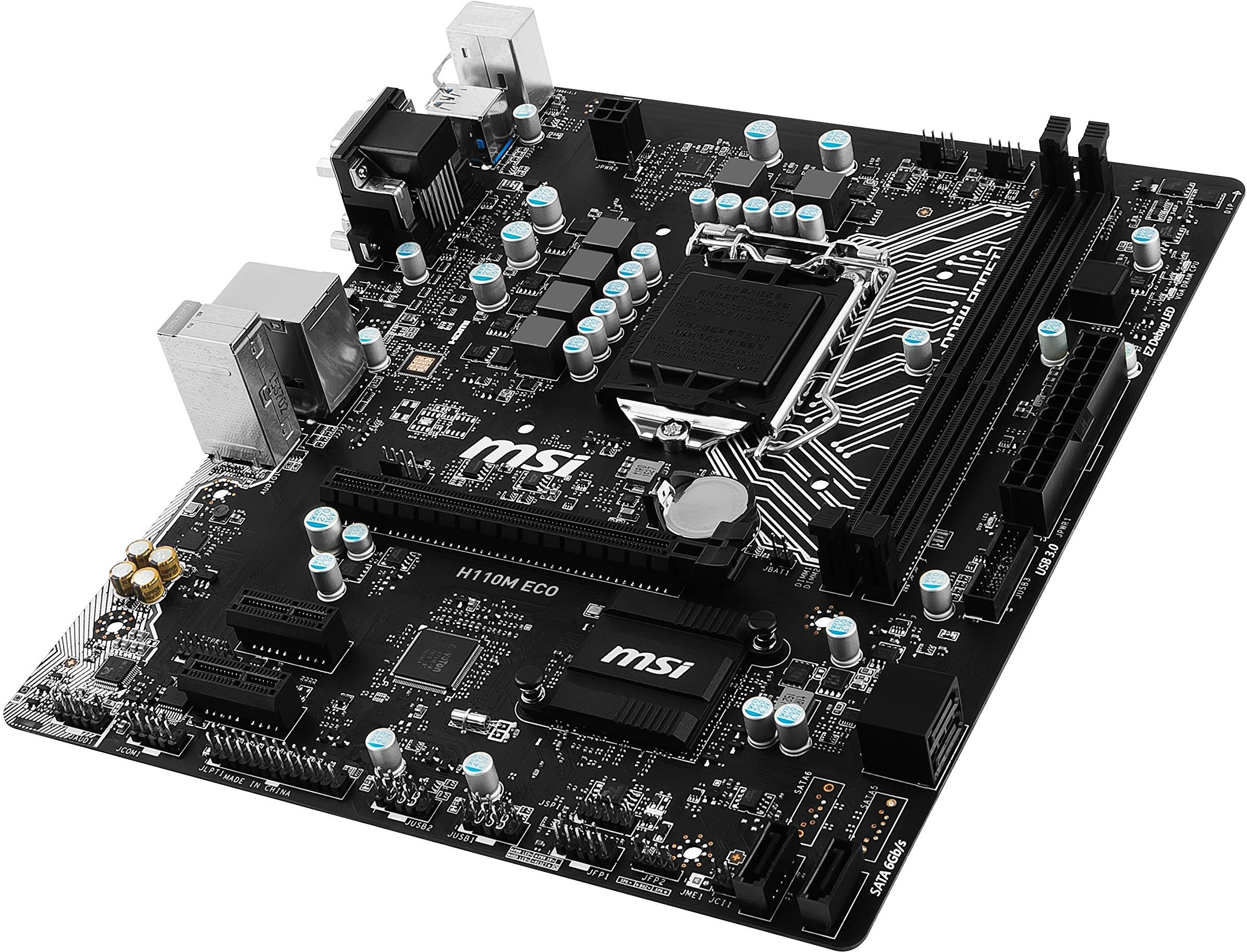

Дънна платка MSI H110M ECO
Тагове: microATX, Дънни платки MSI
Продуктът е изчерпан и не може да бъде поръчан!
(Код: 4350)
Описание
- Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
- Supports DDR4-2133 Memory
- ECO Genie: Saving energy with a single push without complicated settings
- ECO Center Pro and Eco Meter: Being full control of and monitor your systems’ power usage
- 100% Performance and Compatibility
- DDR4 Boost: Give your DDR4 memory perfect performance
- USB 3.1 Gen1 + SATA 6Gb/s
- VGA Armor: Reinforced Armor slots
- Intel Gigabit LAN with LAN Protect: Stable and reliable
- Click BIOS: Secure and Reliable UEFI BIOS solution
- Audio Boost: Reward your ears with studio grade sound quality
- Military Class 4: Top Quality & Stability
- Guard-Pro: Improved Protection and Power Efficiency
- EZ Debug LED: Easiest way to troubleshoot
- Overvoltage Protection:Prevent Unforeseen Damage
- 4K UHD Support: Ultra-high Definition Visual Experience
- COM/LPT support (pin header): Perfect for Industrial and Commercial use
- Intel® SBB Support: Improves Productiviyty, Management and Serurity
- WHQL CERTIFIED.WINDOWS 10 READY
Спецификация
| Сокет: |
Intel LGA 1151 |
| Чипсет: |
Intel H110 |
| Процесори: |
Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| Поддържана памет: |
2 x DDR4 memory slots, support up to 32GB
Dual channel memory architecture
Supports DDR4 2133 MHz |
| Аудио: |
Realtek ALC887 Audio Codec |
| Мрежова връзка: |
Intel I219V Gigabit LAN |
| Слотове за периферия: |
1 x PCI Express 3.0 x16
2 x PCI Express 2.0 x1 |
| Интерфейс за данни: |
4 x SATA3 6.0 Gb/s |

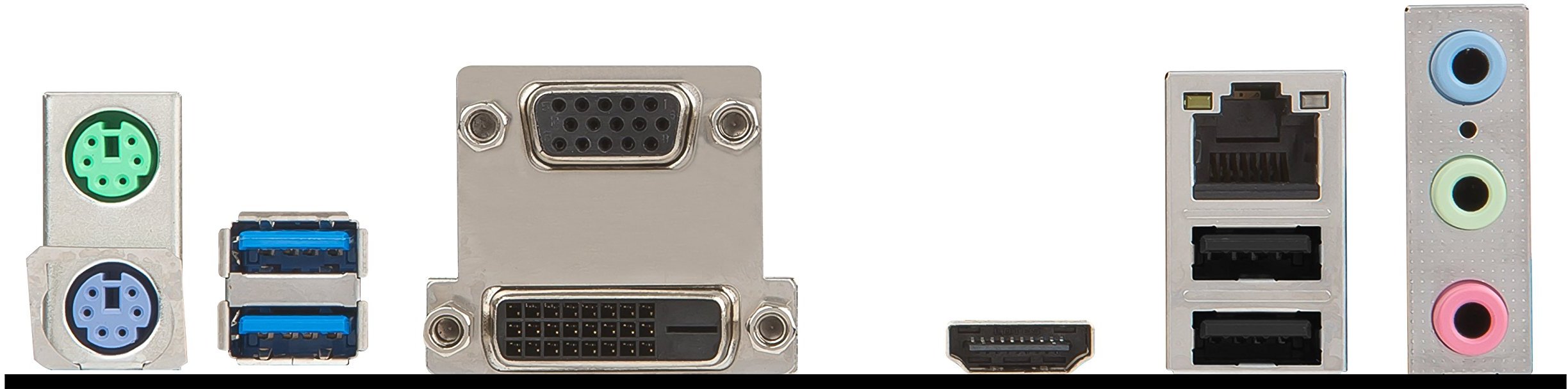

| Изходи на задния панел: |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 3.1 Gen1 ports
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x HDMI™ port
- 1 x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks |
| Форм фактор / Размери: |
microATX |
| MPN: |
H110M ECO |
| Производител: |
MSI |
