Описание

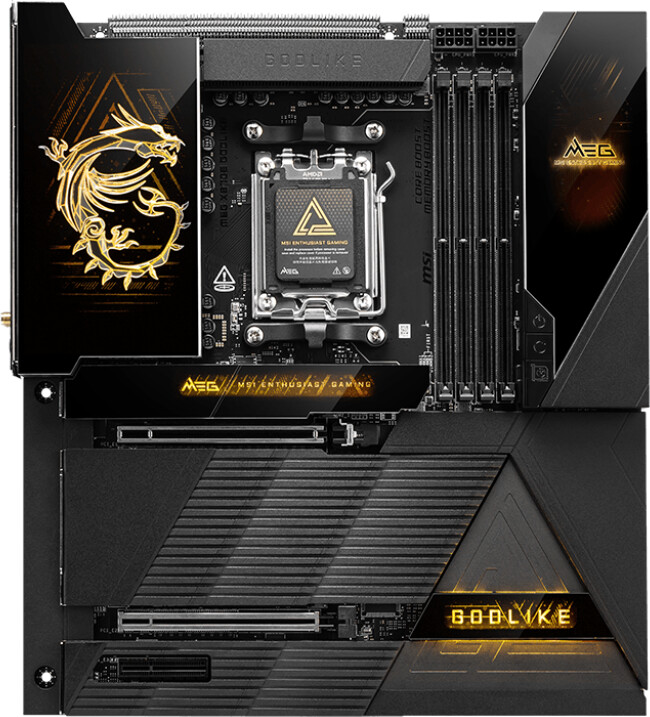

Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
- Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
- M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
- Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
- Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
- Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
- Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Спецификация
| USB | 4x USB 2.0 (Front);4x USB 5Gbps Type A (Front);8x USB 10Gbps Type A (Rear);5x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Front);2x USB 40Gbps Type C (Rear) |
| Wireless | Wi-Fi 7 Solution;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8400+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors;Socket AM5 |
| Chipset | AMD X870E |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Graphics | 2x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz |
| Expansion Slots | 2x PCI-E x16 slot;1x PCI-E x4 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 & PCI_E2 slots;• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors);• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors);PCI_E3 slot;• Supports up to PCIe 4.0 x4 |
| Storage | 7x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices;M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices;M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices;M.2_1:;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors);M.2_2:;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.;M2_4:;PCI_E3 slot |
| I/O | USB 10Gbps (Type-A);Flash BIOS Button;Clear CMOS Button;Smart Button;10G LAN;5G LAN;Wi-Fi / Bluetooth;HD Audio Connectors;USB 40Gbps (Type-C);USB 10Gbps (Type-C);USB 10Gbps (Type-A);Optical S/PDIF-Out |
| Connectors | 1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x Front Type-C Quick Charge Connector(PD_PWR1);1x CPU Fan;2x Combo Fan (Pump_Sys Fan);1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);2x Thermal Sensor connectors(T_SEN);1x Tuning Controller connector(JDASH);1x Addressable V2 RGB LED connector (JARGB_V2);V-check point;4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports;1x USB 20Gbps Type C ports |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA;7.1-Channel USB High-Performance Audio;Supports S/PDIF output;Supports up to 32-Bit/384 kHz playback on front panel |
| LAN | 1x Marvell® AQC113CS 10Gbps LAN;1x Realtek® 8126 5Gbps LAN |
| Form Factor | E-ATX;304.8mmx277mm |
| OS | Support for Windows® 11 64-bit |
Спецификация
| Тегло: |
2.00 kg |
| MPN: |
911-7E48-003 |
| EAN: |
4711377276221 |
| Производител: |
MSI |
Допълнителна информация за продукта вижте на страницата на производителя
Тагове: AMD AM5, Дънни платки MSI, AMD X870E, E-ATX
