Дънна платка MSI PRO B550M-B

Дънна платка MSI PRO B550M-B

  • Производител:
    MSI
  • Гаранция:
    3 години

Тагове: Дънни платки MSI

76,92 €
На склад Код: 94333
Кредитен калкулатор DSK Credit

Описание

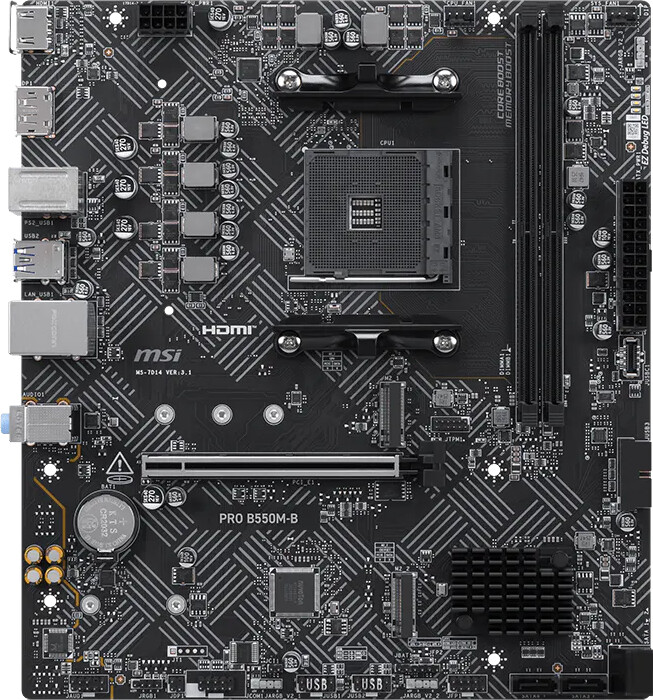

MSI PRO B550M-B

Спецификация

SocketSocket AM4
Graphics1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Supports DP 1.2, maximum resolution of 4K 60Hz
CPU's supportedSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
ChipsetAMD B550
Expansion slots1x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Storage2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices; 4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Memory type2x DDR4, Maximum Memory Capacity 64GB; Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4600+ MHz; • 1DPC 2R Max speed up to 3866+ MHz; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode
Rear panel I/O1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
USB2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front)
AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio
LanRealtek® RTL8111H 1Gbps LAN
OSSupport for Windows® 11 64-bit, Windows® 10 64-bit
DimensionsmATX 220mmx243.84mm

Спецификация

Тегло: 0.50 kg
MPN: 911-7D14-023
EAN: 4711377428927
Производител: MSI

Тагове: Дънни платки MSI
