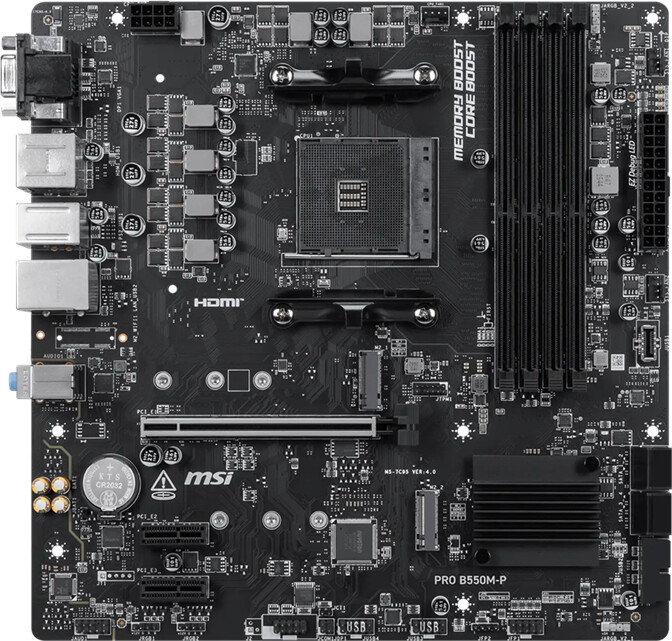

Дънна платка MSI PRO B550M-P
Спецификация
| Socket | Socket AM4 |
| Graphics | 1x HDMI™;
Support HDMI 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Supports DP 1.4, maximum resolution of 4K 60Hz;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| CPU's supported | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors |
| Chipset | AMD B550 |
| Expansion slots | 1x PCI-E x16 slot;
2x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices;
4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB;
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 4400+ MT/s;
• 1DPC 2R Max speed up to 3733+ MT/s;
• 2DPC 1R Max speed up to 3866+ MT/s;
• 2DPC 2R Max speed up to 3466+ MT/s;
Supports JEDEC Speed;
Supports Dual-Channel mode;
Supports non-ECC, un-buffered memory;
Supports Memory Overclocking by A-XMP OC mode |
| Rear panel I/O | 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JARGB_V2);
2x RGB LED connector(JRGB);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
2x USB 5Gbps Type A ports;
1x USB 5Gbps Type C ports |
| USB | 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front) |
| Audio | Realtek® ALC897 Codec;
7.1-Channel High Definition Audio |
| Lan | Realtek® RTL8111H 1Gbps LAN |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Dimensions | mATX
243.84mmx243.84mm |
Спецификация
| Тегло: |
0.50 kg |
| MPN: |
911-7C95-201 |
| EAN: |
4711377453547 |
| Производител: |
MSI |
Тагове: AMD AM4, AMD B550, microATX, Дънни платки MSI
