Дънна платка MSI PRO B850M-E EVO

Дънна платка MSI PRO B850M-E EVO

  • Производител:
    MSI
  • Гаранция:
    3 години

Тагове: Дънни платки MSI

105,36 € | 206,07 лв.
На склад Код: 93150
Кредитен калкулатор DSK Credit

Описание

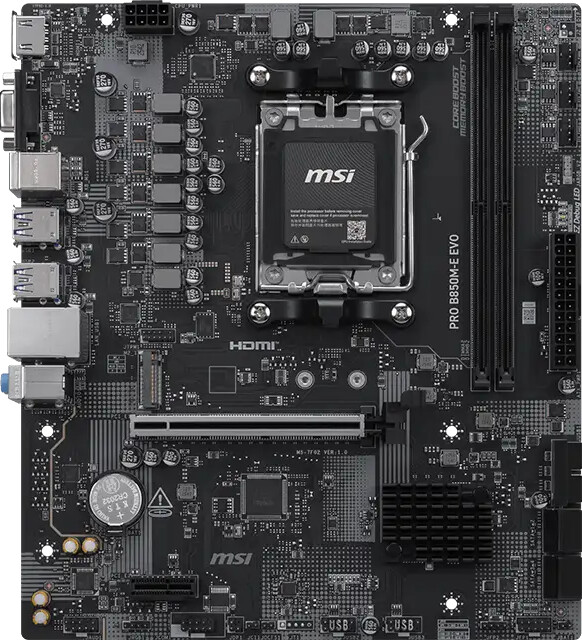

MSI PRO B850M-E EVO

Спецификация

SocketAM5
Graphics1x HDMI™; Support HDMITM 2.1 port with HDR, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supportedSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD B850
Expansion slots1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Storage1x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAIDSupports RAID 0, RAID 1 , and RAID 10 for SATA storage devices
Memory type2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Rear panel I/OHDMI™; VGA; Keyboard / Mouse; USB 5Gbps Type-A; USB 5Gbps Type-A; 2.5G LAN; Audio Connectors; USB 2.0
USB2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
Connectors1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports
AudioRealtek® ALC897; 7.1-Channel High Definition Audio
LanRealtek® 8125 2.5G LAN
Form factormATX 243.84mmx215mm
OSSupport for Windows® 11 64-bit
Other4x EZ Debug LED

Спецификация

MPN: 911-7F02-001
EAN: 4711377429634
Производител: MSI

Тагове: Дънни платки MSI
