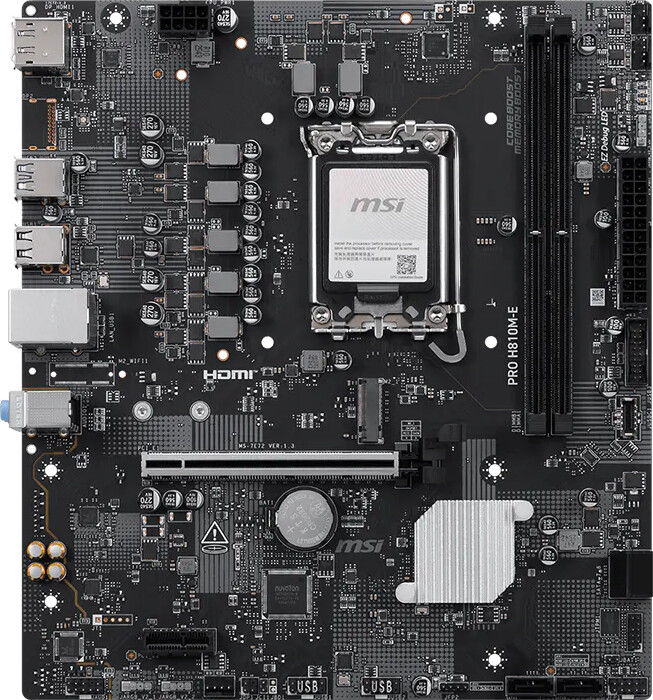

Дънна платка MSI PRO H810M-E

Дънна платка MSI PRO H810M-E

  • Производител:
    MSI
  • Гаранция:
    3 години

Тагове: Дънни платки MSI

82,92 €
На склад Код: 95837

Описание

MSI PRO H810M-E


Спецификация

SocketLGA 1851
Graphics1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2)
ChipsetINTEL H810
Expansion slots1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; *Please refer to the manual for M.2 SSD heatsink restrictions.
Memory type2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 7200 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 7200 MT/s; • 1DPC 2R Max speed up to 6400 MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM
Rear panel I/ODisplayPort; USB 5Gbps Type-A; USB 2.0; 2.5G LAN; Audio Connectors; HDMITM; USB 2.0
USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front)
Connectors1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
AudioRealtek® ALC897 Codec; 7.1-Channel High Definition Audio
LanRealtek® 8125D 2.5Gbps LAN
Form factormATX, 220mmx243.84mm
OSSupport for Windows® 11 64-bit
Other4x EZ Debug LED; 1x EZ Memory Detection LED

Спецификация

Тегло: 0.50 kg
MPN: PRO H810M-E
EAN: 4711377424028
Производител: MSI

Тагове: Дънни платки MSI
