Описание
- Supports 8th Gen Intel® CoreTM / Pentium® Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4000+(OC) MHz
- DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive audio experience
- Mystic Light and Mystic Light Sync: Personalize your PC with 7 colors / 5 effects controlled in one click with the Mystic Light APP or a mobile device.
- MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire™
- EZ Debug LED: Easiest way to troubleshoot
- Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
- Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI
- X-Boost: Great tool to boost your USB & Storage performance
- Double ESD Protection: Double layer grounding motherboard mounting holes
- Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
- VR Ready: Best virtual reality game experience without latency, reduces motion sickness
Спецификация
| Сокет: |
Intel LGA 1151 |
| Чипсет: |
Intel Z370 |
| Процесори: |
Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| Поддържана памет: |
4 x DDR4 memory slots, support up to 64GB
Dual channel memory architecture
Supports DDR4 Memory, up to 4000+(OC) MHz
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP) |
| Аудио: |
Realtek ALC887 Audio Codec |
| Мрежова връзка: |
Intel I219-V Gigabit LAN |
| Слотове за периферия: |
2 x PCI Express 3.0 x16
3 x PCI Express 3.0 x1
1 x PCI slot |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s
2 x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot supports 2242/ 2260 /2280 storage devices
Supports Intel® Optane™ Memory Ready for all M.2 slots |

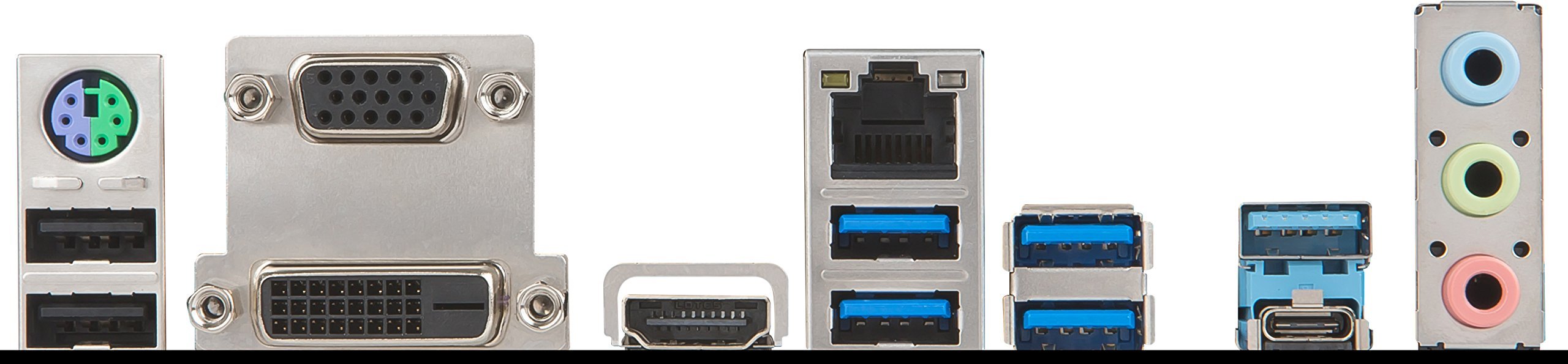

| Изходи на задния панел: |
PS/2 Combo Port
VGA Port
LAN Port
USB 3.1 Gen 1
USB 3.1 Gen2 Type-A
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI
USB 3.1 Gen 1
LIGHTNING USB 3.1 Gen2 Type-C |
| Форм фактор / Размери: |
ATX |
| MPN: |
Z370 PC PRO |
| Производител: |
MSI |
Тагове: ATX, Дънни платки MSI, Intel LGA 1151 rev2 - Coffee Lake (300 Series)
