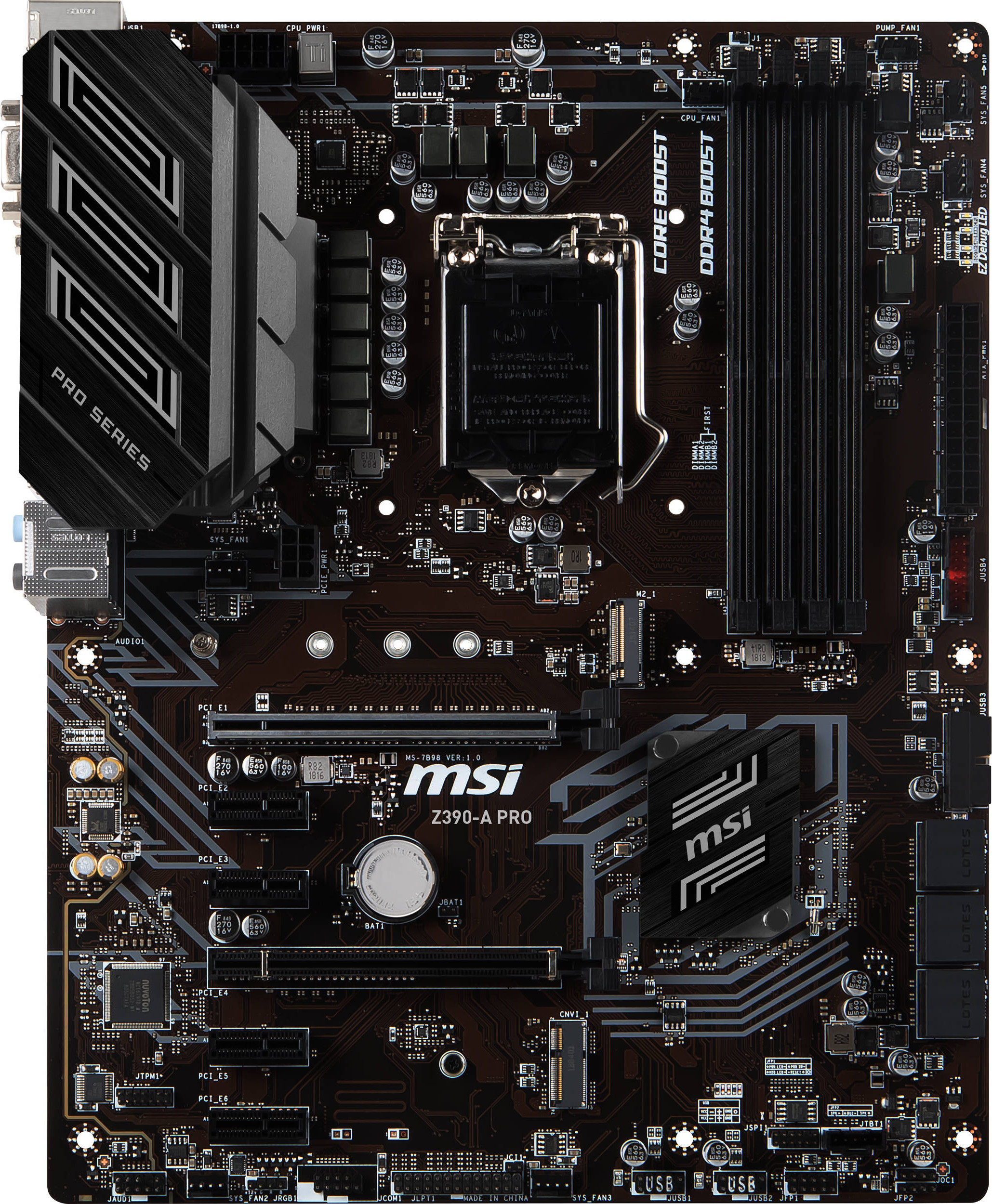

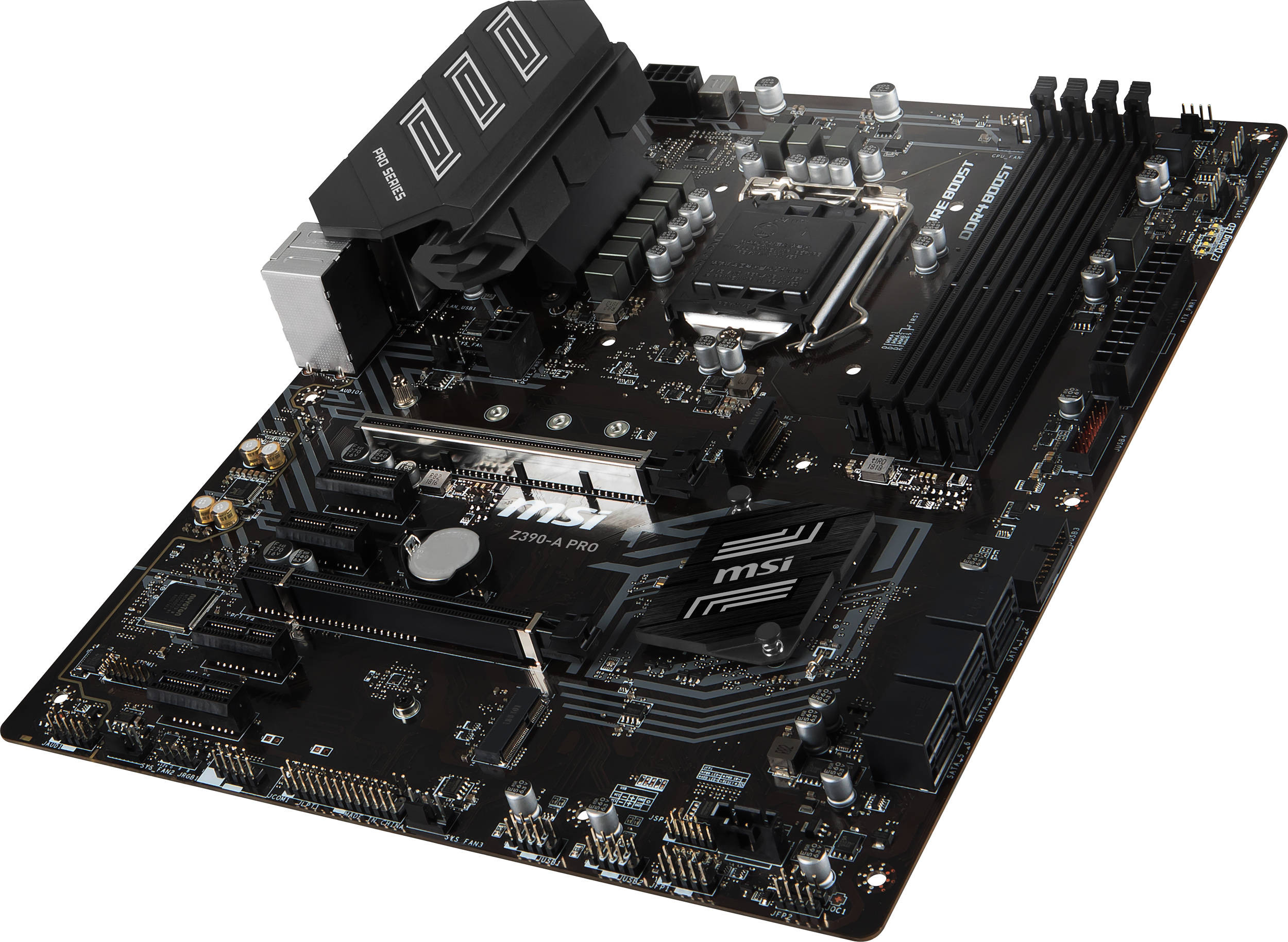

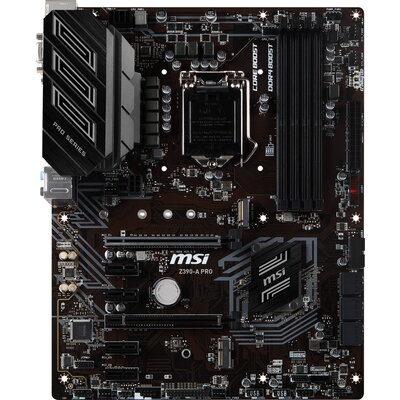

Описание
Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector.
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz

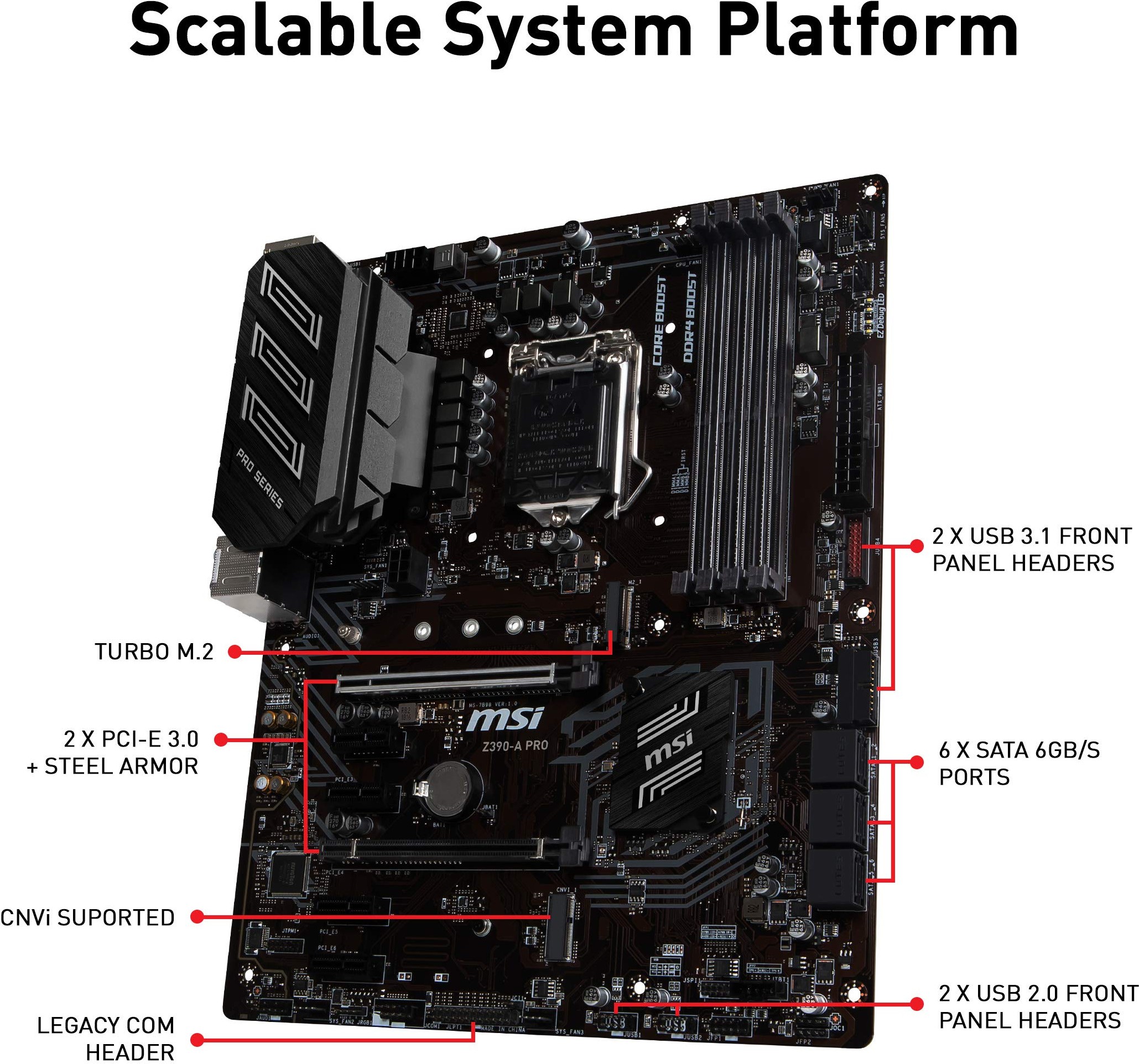

- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost

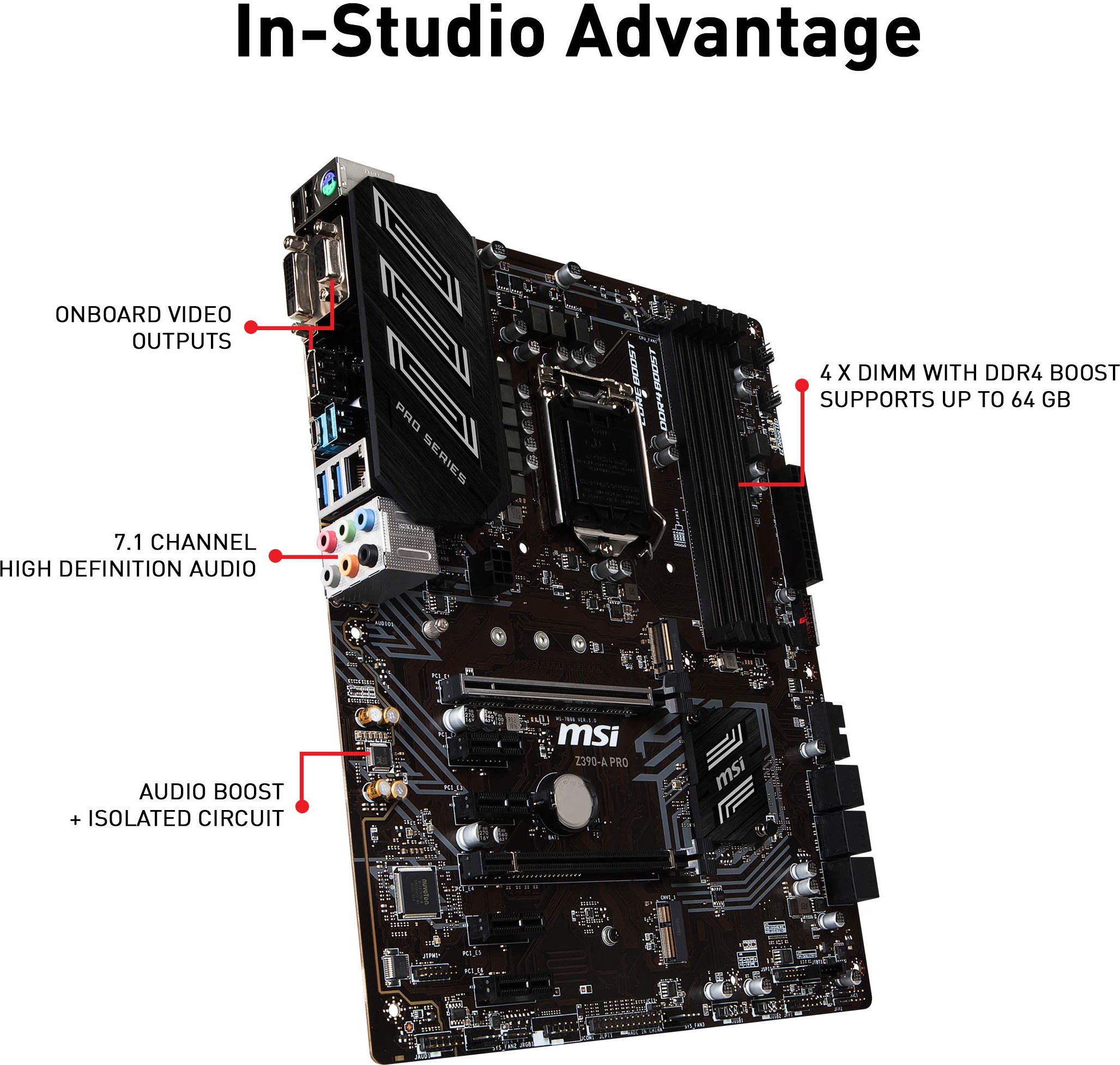

- Audio Boost: Reward your ears with studio grade sound quality.
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Intel® LAN：Premium network solution from Intel® for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
- Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Спецификация
| Сокет: |
Intel LGA 1151 rev2 |
| Чипсет: |
Intel Z390 |
| Процесори: |
Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Поддържана памет: |
4 x DDR4 memory slots, support up to 128GB
Supports DDR4-4400 (OC)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP) |
| Аудио: |
Realtek ALC892 Codec |
| Мрежова връзка: |
Intel I219-V Gigabit LAN |
| Слотове за периферия: |
2 x PCIe 3.0 x16
4 x PCIe 3.0 x1
1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only
Supports 2-Way AMD® CrossFire™ Technology |
| Интерфейс за данни: |
6 x SATA3 6.0 Gb/s; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
1 x M.2 slot (Key M); Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; Intel® Optane™ Memory Ready |

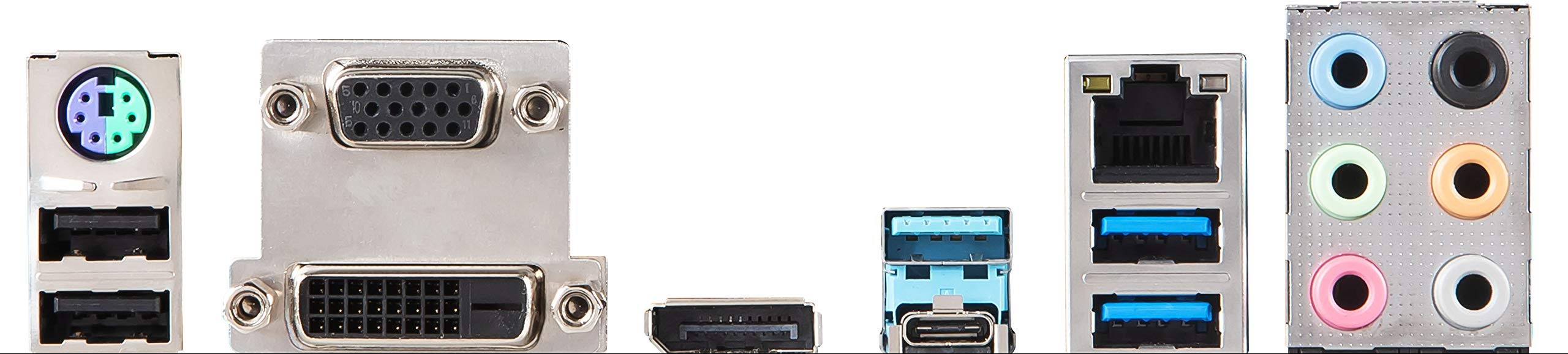

| Изходи на задния панел: |
PS/2 Combo
VGA
USB 3.1 Gen2 Type A+C
LAN
HD Audio Connectors
USB 2.0
DVI-D
Displayport
USB 3.1 |
| Вътрешни I/O конектори: |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x M.2 slots (1 M-Key slot,1 E-Key slot)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
1 x TPM module connector
1 x thunderbolt Add-on card conne |
| Операционна система: |
Windows® 10 64-bit |
| Форм фактор / Размери: |
ATX / 12 x 9.6 in. (30.5 x 24.4 cm) |
| MPN: |
911-7B98-001 |
| EAN: |
4719072594152 |
| Производител: |
MSI |
Тагове: ATX, Дънни платки MSI, Intel LGA 1151 rev2 - Coffee Lake (300 Series)
