Описание

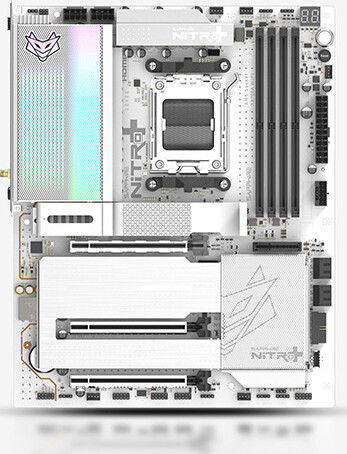

NITRO+ X870EA PhantomLink Polar Edition
- 16+2+1 Phase Power Design, 90A Per Phase
- Support Phantomlink(GC-HPWR) graphics power slot
- Front USB Type C 20Gbps with 30W power delivery
- SAPPHIRE CORE BIOS
- Dual Channel, 8400 MHz Memory OC
- WIFI 7 320 MHz Support
- PCI-Express 5.0 x16
- 4x M.2 SSD support with 2 x Gen 5 and 2 x Gen 4
- LED Debug Diagnostic Screen
Спецификация
| Socket | AMD AM5 |
| CPU's supported | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Expansion slots | 1 × PCIe 5.0 x16;
2 × PCIe 4.0 x4 (x16 Physical Slots);
PhantomLink GC-HPWR Graphics Power Slot |
| Storage | 2 × PCIe 5.0 M.2;
2 × PCIe 4.0 M.2;
4 × SATA |
| Memory type | 4 × DDR5 DIMM;
Dual Channel;
Up to 256 GB (4 × 64 GB);
Up to 8400 MHz (OC) |
| Rear panel I/O | Rear: 2 × USB4 Type-C (40 Gbps), 4 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0;
Front: 1 × USB 3.2 Gen 2x2 Type-C Header (20 Gbps, 30 W PD), 1 × USB 3.2 Gen 1 Header (2 Ports), 2 × USB 2.0 Headers (4 Ports) |
| Connectors | 4 × SATA;
4 × M.2 SSD Slots;
PhantomLink GC-HPWR;
Front USB Headers |
| Audio | Realtek ALC897 HD Audio;
5.1-Channel;
Optical S/PDIF |
| Lan | Realtek RTL8126 5 Gigabit Ethernet |
| Wireless | Wi-Fi 7 (802.11be);
2.4 / 5 / 6 GHz;
320 MHz Channel Support |
| Bluetooth | Bluetooth 5.4 |
| Form factor | ATX |
| Dimensions | 305 × 244 mm |
Спецификация
| Тегло: |
2.00 kg |
| MPN: |
52122-11-40G |
| EAN: |
4895106297425 |
| Производител: |
SAPPHIRE |
Допълнителна информация за продукта вижте на страницата на производителя
Тагове: Дънни платки SAPPHIRE
