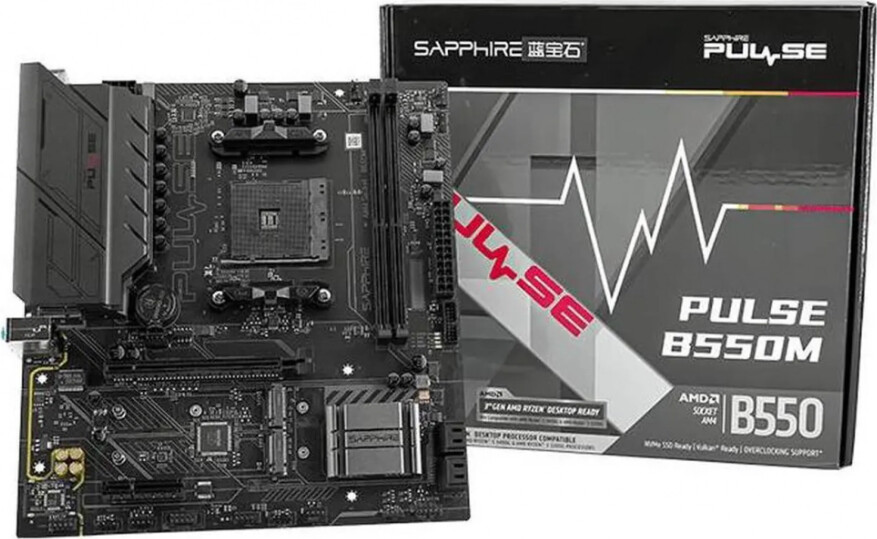

SAPPHIRE PULSE B550M / AM4
Спецификация
| CPU's supported | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 |
| Expansion slots | 1 x PCIe 3.0 x4 slot;
1 x PCIe 4.0 supports up to x16 |
| Storage | 4 x SATA3 6.0 Gb/s;
1 x M.2 (Key M), type 2280 supports PCIe 3.0 x4 mode;
1 x M.2 (Key M), type 2280(supports PCIe 4.0 x4 mode) |
| Memory type | 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory |
| Rear panel I/O | 1 x PS/2 Keyboard;
3 x Audio jacks;
1 x DisplayPort;
2 x USB 2.0;
1 x HDMI Port;
1 x USB Type-C;
3 x USB 3.2 Gen 1;
2.5G LAN Port |
| Connectors | 1 x SPI TPM Header;
1 x CPU Fan;
2 x System Fan Connectors;
1 x COM Port header;
1 x Front Panel Audio header;
1 x Clear CMOS button;
1 x Front panel audio header (F_AUDIO);
1 x AIO_PUMP connector (1 x 4 -pin);
3 x 5V ARGB;
1 x 12V RGB |
| Audio | Realtek ALC897 HD Audio, 5.1 Channel |
| Lan | 1 x Realtek® Dragon RTL8125BG 2.5G LAN |
| Wireless | None |
| Form factor | Micro ATX |
Спецификация
| Тегло: |
1.00 kg |
| MPN: |
52103-05-40G |
| Производител: |
SAPPHIRE |
