Product Specifications

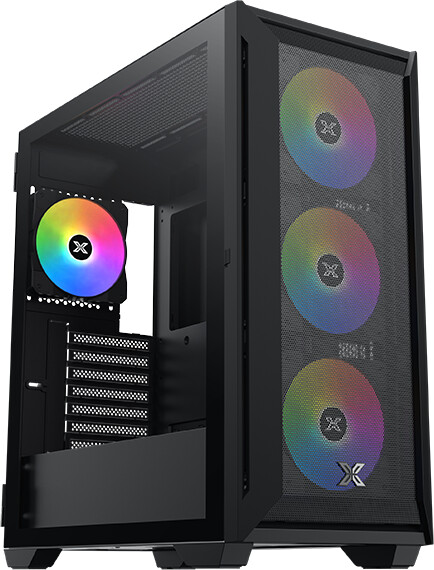

Product Name: Master X II Pro
Dimensions: 460 x 215 x 488 mm (L x W x H)
Motherboard Support
E-ATX
ATX
M-ATX
Mini-ITX
Drive Bays
HDD Cage (Bottom): 3.5″ x 1
HDD Cage (Top): 3.5″ & 2.5″ Combo x 1
SSD Bracket: 2.5″ x 2
Fan Support
Top: 120 mm x 3 or 140 mm x 3
Front: 120 mm x 3 or 140 mm x 3
MB: 120 mm x 2 (EATX MB Width ≤ 280 mm)
Rear: 120 mm x 1
Limitations and Clearances
PSU Length Limitation: 220 mm
CPU Cooler Clearance: 165 mm
Material
Material: Steel
Expansion Slots
Slots: 7 Standard Slots
Power Supply
Type: Standard PS2, ATX PSU
I/O Panel
Ports:
USB 3.0 x 1
USB 2.0 x 2
HD Audio
Radiator Support
Front: 360 mm
Top: 360 mm
Rear: 120 mm
GPU Length Limitation
With Fan on MB Panel: 280 mm
Without Fan on MB Panel: 410 mm
