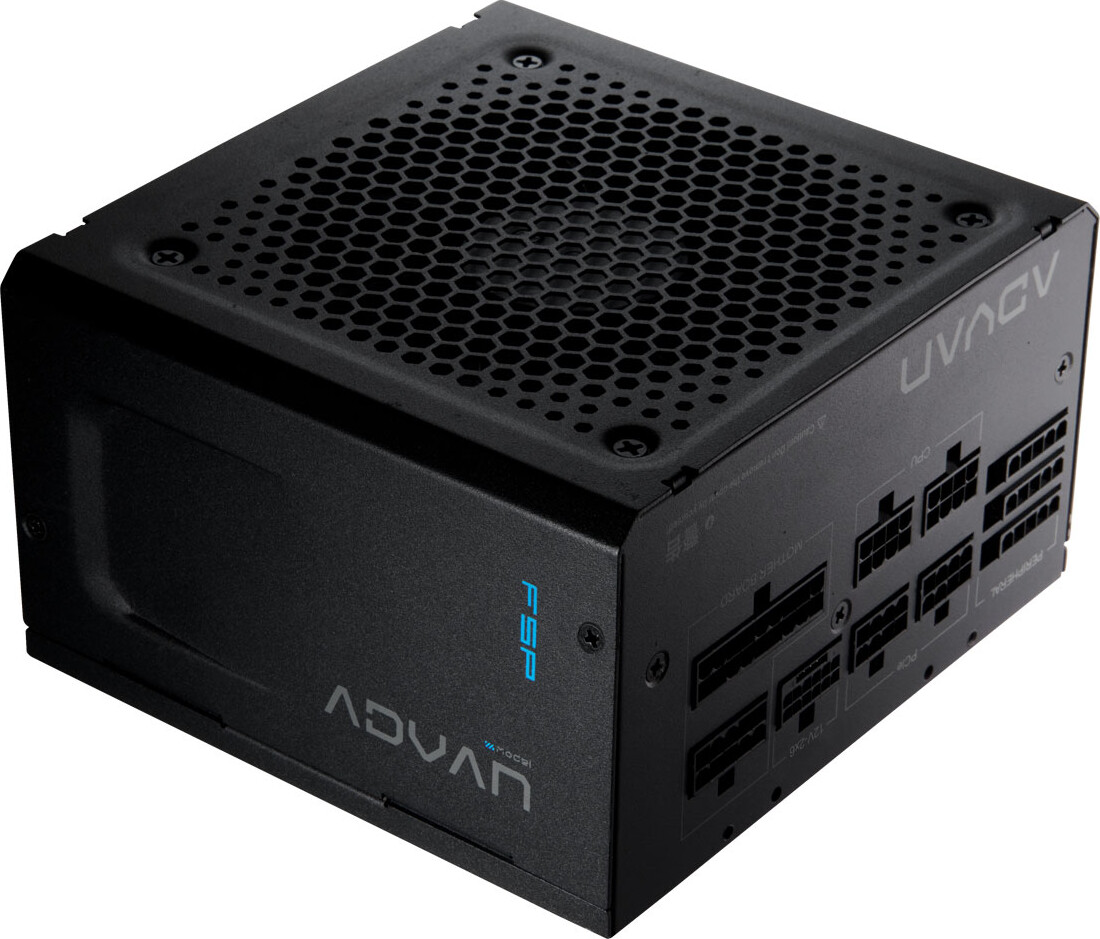

Захранване FSP ADVAN-1000GM

Описание

ADVAN GM series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.

• Efficiency ≧ 90% at typical load
• 80 PLUS® gold certified
• 105°C Japanese bulk capacitor
• 120mm hydraulic bearing ( HYB ) fan
• Eco semi-fanless fan control switch
• Premium, black embossed cables for easier cable routing
• Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

• Model ADVAN-1000GM
• Rated Output Power 1000W
• Form Factor ATX12V V3.1
• 80 PLUS Certification Gold
• Cybenetics Certification Gold
• Input Voltage 100-240V
• Input Current 6A
• PFC Active ≧ 0.9
• Efficiency(at typical load) Efficiency ≧ 90% at typical load
• Fan Type HYB Bearing, 120mm
• Dimensions(L x W x H) 140×150×86 mm
• Operation Temp. 40°C
