| POWER_SUPPLY | Computer power supply / Захранване за компютър |
| 850W | Power / Мощност - 850W |
| EFF_90 | Efficiency / Ефективност - 90% |
| PFC_ACTIVE | Active PFC / Активен коректор на фактора на мощността |
| MODULAR | Full modular psu / Модулно захранванв |
| FAN_120MM | Fan size / Големина на вентилатора - 120mm |

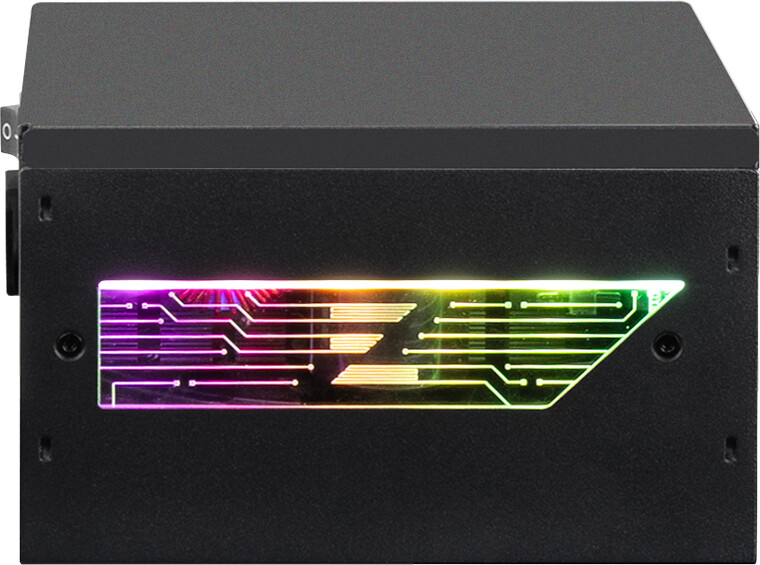

| Model | ZM850-TMX2 VIEW |
| Form factor | Standard ATX |
| Cooling | 120 mm FDB Fan, Honeycomb Vents |
| Power [Watts] | 850 W |
| AC Input | 100–240 VAC, 12–6 A, 50–60 Hz |
| DC Output | +12 V DC-to-DC Converter with 100% Availability |
| Connectors | 1 × Mainboard Cable;
2 × EPS Cables;
1 × PCI Express Cable (2 Connectors);
2 × PCI Express Cables;
1 × IDE Cable (3 Connectors) + FDD (1 Connector);
3 × SATA Cables;
1 × 12V-2x6 Cable;
1 × 5V Addressable Extension RGB Cable |
| Cable information | Fully Modular, Flat Cables |
| PFC type | Active PFC, up to 99% Power Factor |
| Fan information | 120 mm FDB Fan with ARGB Lighting |
| Fan size [mm] | 120 mm |
| MTBF [hours] | 100,000 Hours |
| Voltage | 100–240 VAC |
| Bearing | FDB (Fluid Dynamic Bearing) |
| Type | ATX Ver. 3.1 Power Supply |
| Specifications | Efficiency: Max. 90% @ 115 VAC, Typical Load;
Operating Temperature: 10–40°C |
| Color | Black |
| Safety and Environmental | CE, CB, RoHS, EAC, cTUVus, TUV;
OCP / OTP / OPP / OVP / UVP / SCP |
| Features | 80 PLUS Gold;
ATX 3.1;
PCIe 5.1 Ready;
12V-2x6 Connector;
Fully Modular;
ARGB Lighting;
3-Pin 5V Motherboard RGB Sync;
Active PFC;
+12 V DC-to-DC Converter;
Gold-Plated Connector;
Japanese High-Temperature Capacitor;
Aluminum Solid Capacitor;
EMI Filter;
Standby Power below 0.5 W;
Honeycomb Vents |
| Dimensions | 140 × 150 × 86 mm |
| Weight | 2.6 kg |
