Описание

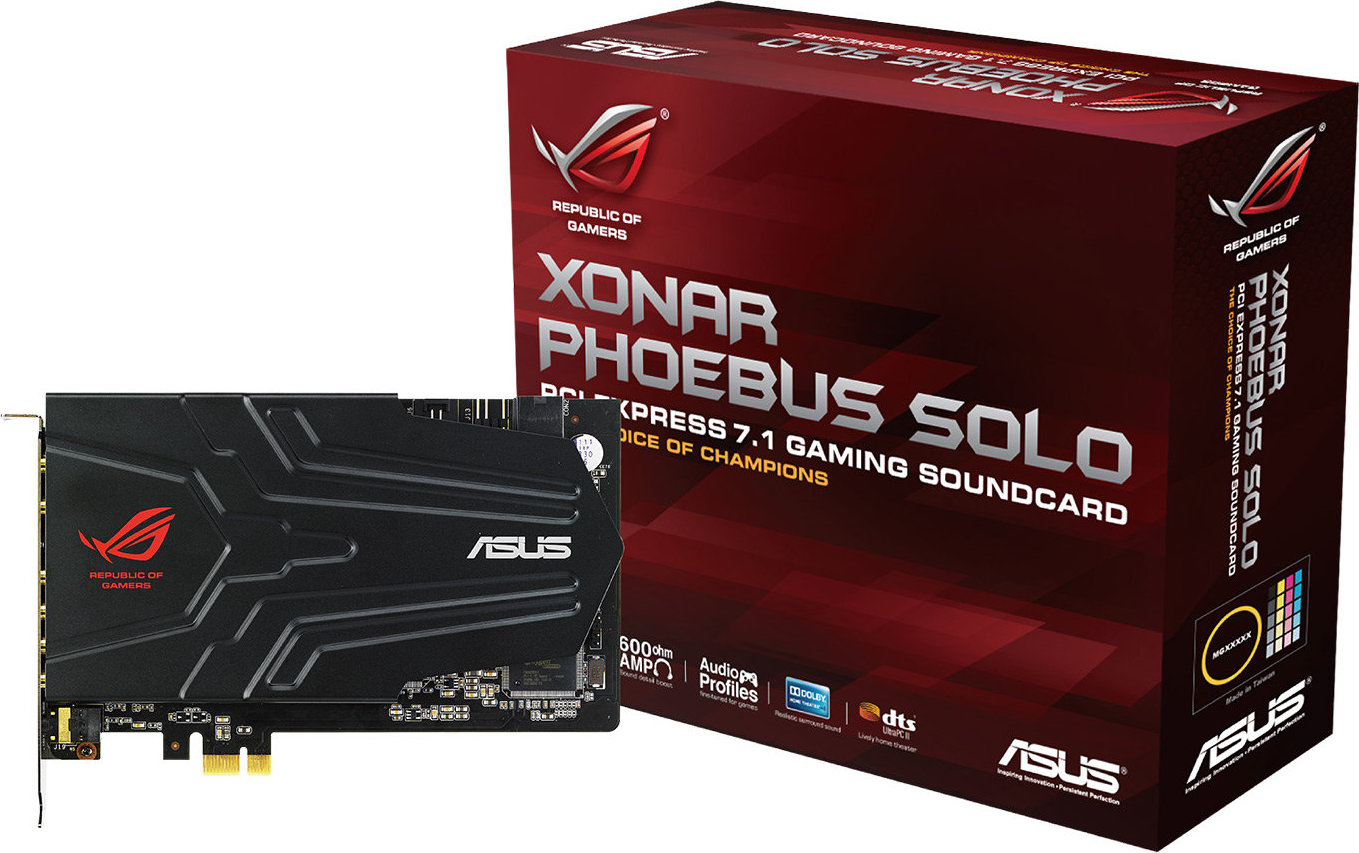

7.1 PCI Express gaming soundcard with genre-optimized game audio profiles.
- 118dB Signal-to-noise ratio (SNR) ensures audio purity
- Sonic Studio provides complete control over loads of sound technologies
- Integrated 600ohm headphone amplifier pumps details
- Genre-optimized game audio profiles for precise immersion
- DTS™ UltraPC II deliver realistic surround and enhanced sound
- Realistic surround and enhanced sound thanks to Dolby® Home Theater V4 and the GX 3.0 game audio engine
Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 118 dB
Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out): 110 dB
Input Signal-to-Noise Ratio (A-Weighted): 118 dB
Output THD+N at 1kHz (Front-out): 0.00039 %(-108 dB)
Output THD+N at 1kHz (Headphone-out): 0.001 %(300 dB)
Input THD+N at 1kHz: 0.0003 %(-110 dB)
Frequency Response (-3dB, 24bit/96KHz input): 10 Hz to 48 KHz
Output/Input Full-Scale Voltage : Line output (RCA, 3.5): 2.2 Vrms (3 Vp-p)
Headphone output: 7 Vrms (9.9 Vp-p)
Sample Rate and Resolution
Analog Playback Sample Rate and Resolution: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
S/PDIF Digital Output: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
ASIO 2.2 Driver Support: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit with very low latency
